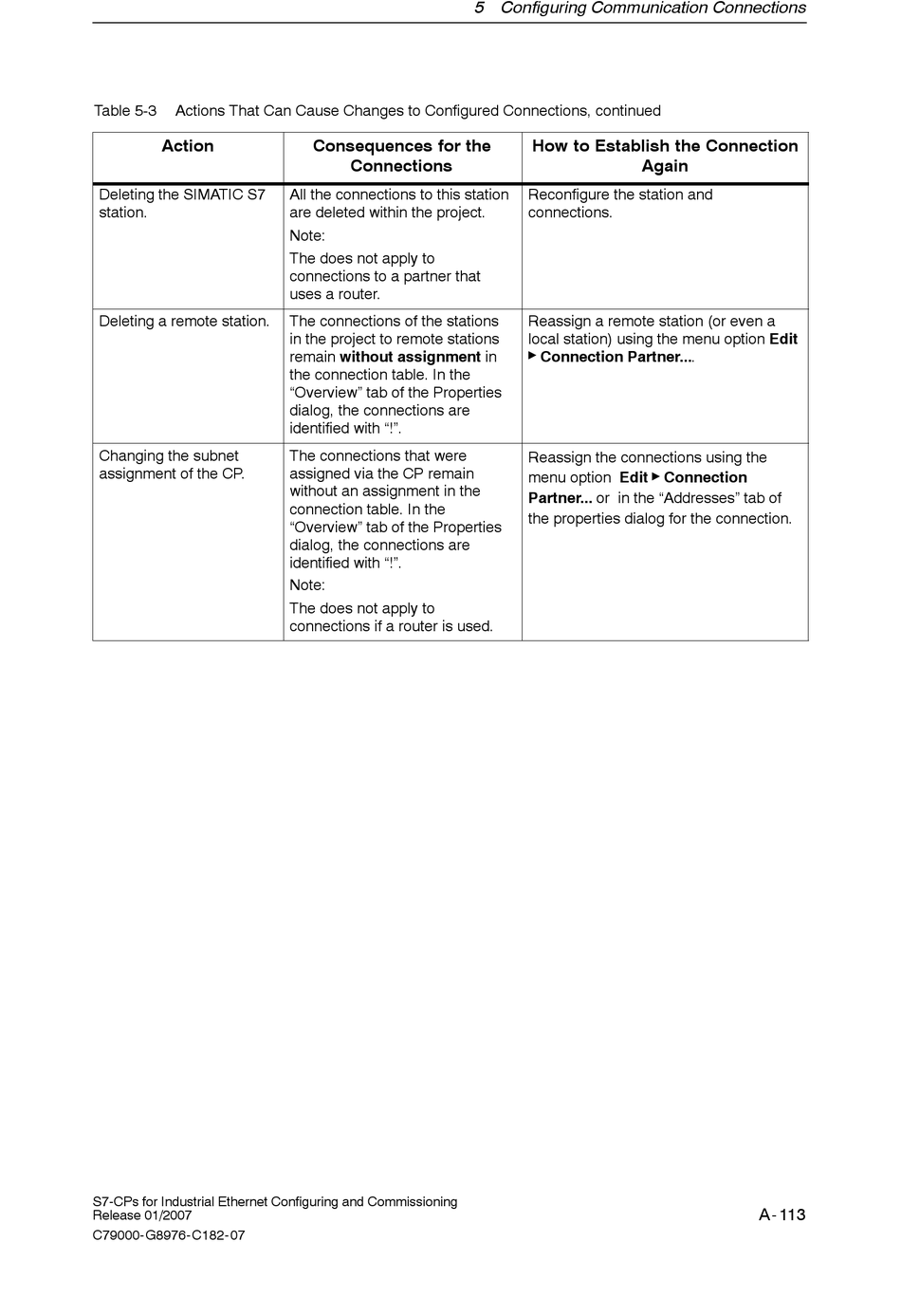

Table 5-3
Actions That Can Cause Changes to Configured Connections, continued
Action
Deleting the SIMATIC S7
station.
Deleting a remote station.
Changing the subnet
assignment of the CP.
S7-CPs for Industrial Ethernet Configuring and Commissioning
Release 01/2007
C79000-G8976-C182-07
Consequences for the
Connections
All the connections to this station
are deleted within the project.
Note:
The does not apply to
connections to a partner that
uses a router.
The connections of the stations
in the project to remote stations
remain without assignment in
the connection table. In the
"Overview" tab of the Properties
dialog, the connections are
identified with "!".
The connections that were
assigned via the CP remain
without an assignment in the
connection table. In the
"Overview" tab of the Properties
dialog, the connections are
identified with "!".
Note:
The does not apply to
connections if a router is used.
5 Configuring Communication Connections
How to Establish the Connection
Again
Reconfigure the station and
connections.
Reassign a remote station (or even a
local station) using the menu option Edit
Connection Partner....
"
Reassign the connections using the
menu option Edit
Partner... or in the "Addresses" tab of
the properties dialog for the connection.
Connection
"
A-113
