Lucent Technologies SLC-2000 Remote Terminal Assembly Manual page 156

363-208-010
Cabling, Wiring, and Assembly
MDS
P101 J101
P102 J102
P103 J103
J104
P104
P201
J201
P202 J202
P203
J203
P204 J204
P/O HDOS
HDOS

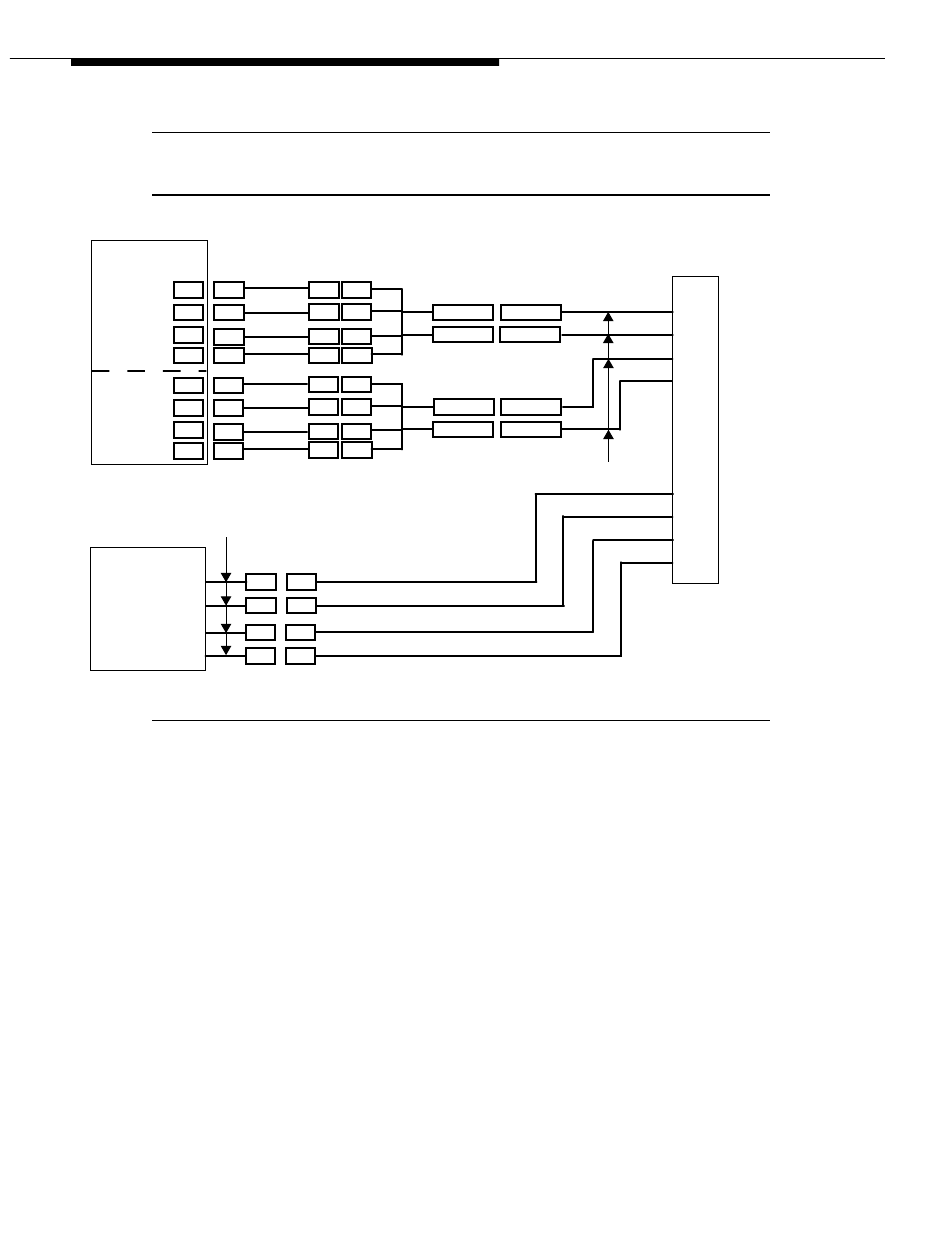

Figure 3-50B. DSX-1 Panel Cabling
3-90
Issue 5 May 1997
P101 J101
ED7C723-32 G6
P102 J102
ED7C723-32 G7
P103 J103
ED7C723-32 G8
P104 J104
ED7C723-32 G9
ED7C723-35 G17
P201 J201
ED7C723-32 G6
P202 J202
ED7C723-32 G7
P203 J203
ED7C723-32 G8
J204
P204
ED7C723-32 G9
ED7C723-35 G17
J191-1 P191-1
ED7C723-35 G18
P192-1
J192-1
ED7C723-35 G18
J191-2 P191-2
ED7C723-35 G18
P192-2
J192-2
ED7C723-35 G18
Transmit
P191/P192 OUT P191/P192 OUT
P191/P192 IN P191/P192 IN
Receive
Transmit
P191/P192 OUT P191/P192 OUT
P191/P192 IN P191/P192 IN
Receive
(4) ED7C723-35, G 19 - 22
DSX-1
Panel
Note: The cross-connections between
the MDS and HDOS DS1 leads
are not shown in this figure.
