TOTAL ACCESS 1200F CONVERSION

The order of subtended Total Access 1200 Series DSLAMS must be
preserved when connecting to the Total Access 1200F for transla-
tion to the legacy ATM mode PVCs. See
Total Access 1200F Expansion Port
Existing Total Access 1200 Series DSLAM installations require a software upgrade to convert
the Total Access 1200 Series DSLAMs to function with a Total Access 1200F.
To upgrade each Total Access 1200 Series DSLAM, perform the following steps:
Upgrading the firmware disrupts DSL service to the customer.
1. Connect a VT100-capable laptop/terminal to the
DSLAM (see Figure 3-11
PORTS 1-24

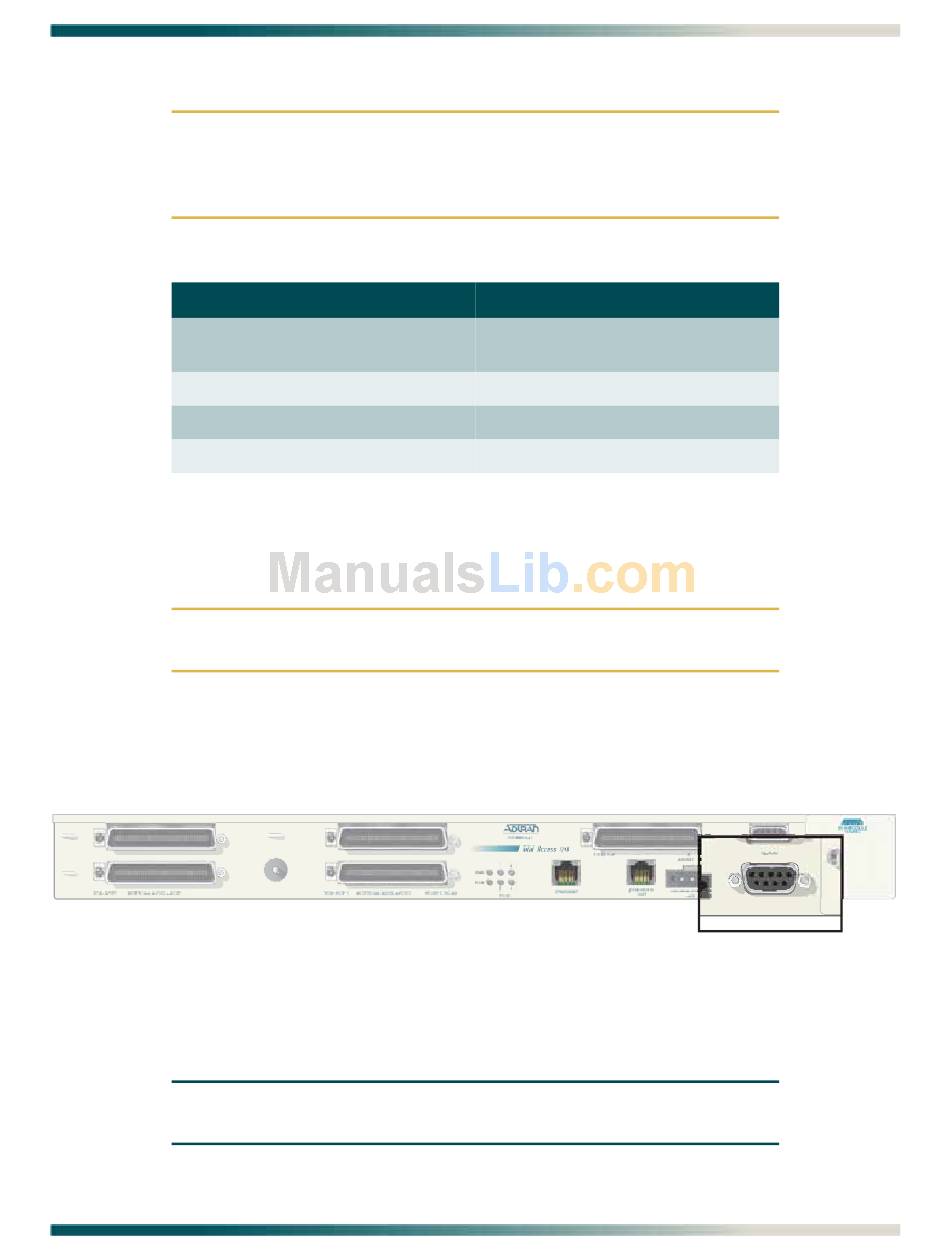

Figure 3-11. Total Access 1100 Series DSLAM Craft Port

2. Set the terminal baud rate to 9600 baud, 8 data bits, no parity, 1 stop bit, and no flow
control.
The 4-MB Flash Upgrade must be made at 9600 baud.
61179641AL1-5C
CAUTION

Table 3-7. Order of Subtended Clients

1
2
3
4
CAUTION
for the location of the
NOTE
Table 3-7.
Total Access 1200 Series Client
Total Access 1100 Series Host
(Client 1)
Client 2
Client 3
Client 4
port of a Total Access 1200 Series
CRAFT
port).
CRAFT
