Adirati

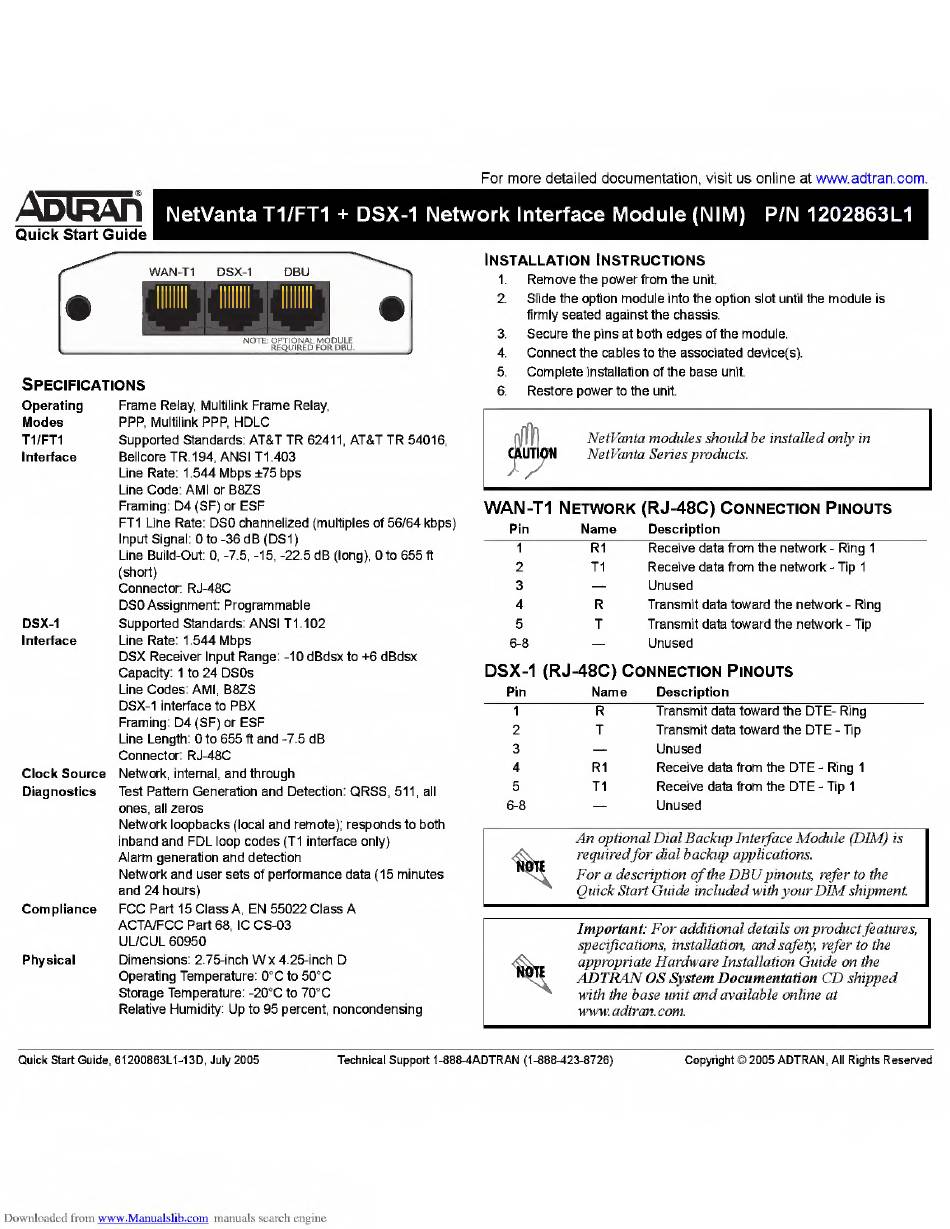

Quick Start Guide I

For more detailed documentation, visit us online at www.adtran.co

NetVanta T1/FT1 + DSX-1 Network Interface Module (NIM)

PIN 1202863L1

Network loopbacks (local and remote); responds to both

Alarm generation and detection

FCC Part 15 Class A, EN 55022 Class A

ACTA/FCC Part 68,1C CS-03

UL/CUL 60950

Dimensions: 2.75-inch Wx 4.25-inch D

Operating Temperature: 0°C to 50°C

Storage Temperature: -20°C to 70°C

Relative Humidity: Up to 95 percent, noncondensing

An optional Dial Backup Interface Module (DIM) is

required for dial backup applications.

For a description of the DBU pinouts, refer to the

Quick Start Guide included with your DIM shipment.

Important: For additional details on product features

specifications, installation, and safety, refer to the

appropriate Hardware Installation Guide on the

ADTRAN OS System Documentation CD shipped

art Guide, 61200863L1-13D, Ju

Technical Support 1-888-4ADTRAN (1-888-423-8726)
