1. INTRODUCTION

WHAT IS EASI-PICO?

The Easi-PiCo is a pre-configured entry-level 16-port matrix intercom system.
The system is designed to allow person to person and one to many
communications using the operator panels, wired beltpacks and external
interfaces.
The user has the choice of 4 pre-configured system lay outs (maps), each using
different numbers of panels, beltpacks or interfaces, which can be selected from
the front of the matrix.
The system has been designed to allow the user to setup the system without the
need for any configuration software.
The matrix system also comes with 2 x partyline channels and 2 x 4-wire
channels for connection to external devices like mixers, external lines, camera
CCU, 2-way radios etc.
The operator panels have been chosen for ease of use.

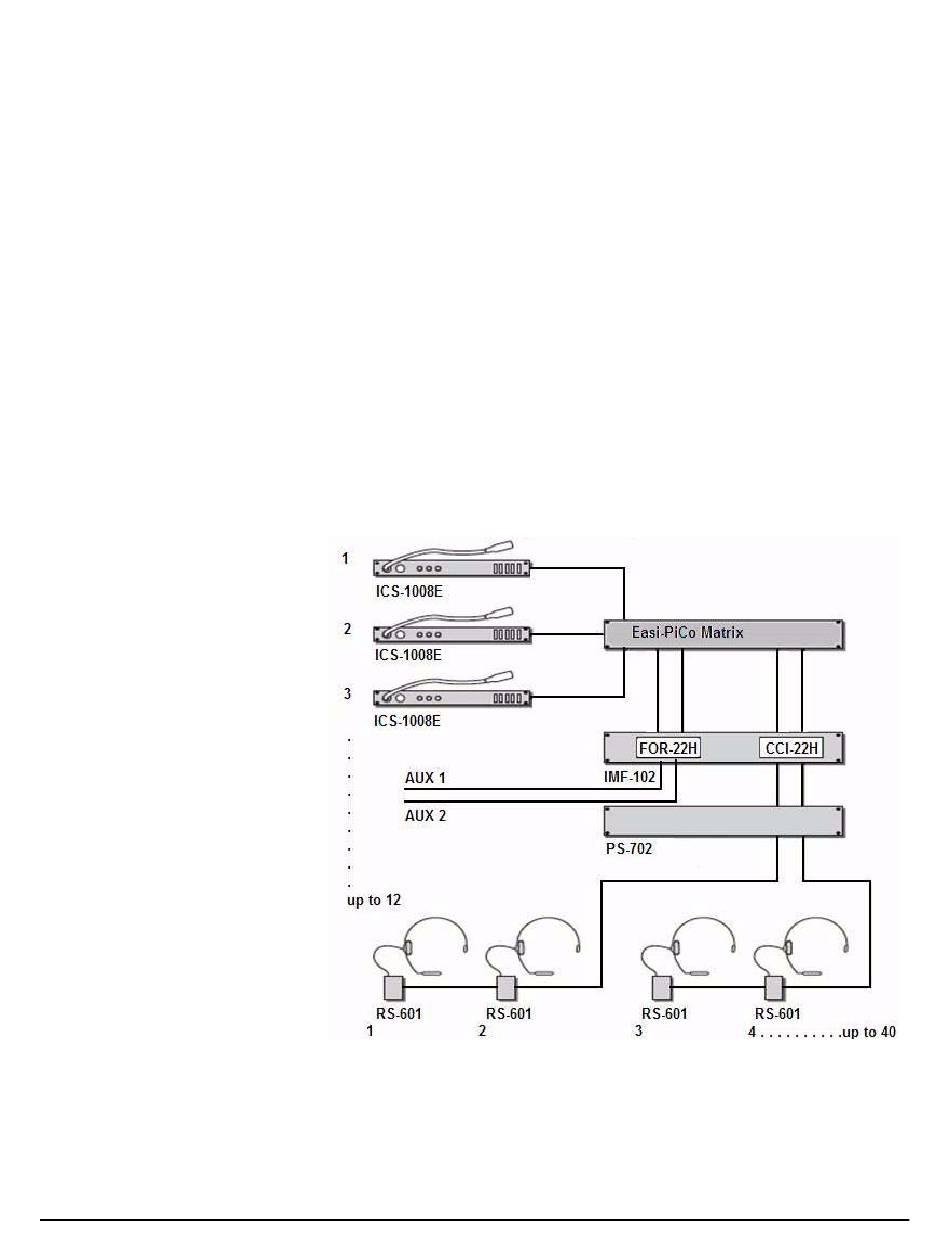

Figure 1-1: Easi-PiCo Example Block Diagram
The customer can easily upgrade from the Easi-PiCo package by purchasing an
upgrade Licence Key - this will provide full access to all 36 matrix ports and allow
the user to fully configure the matrix using the ECS configuration software. This
