DB-25 Male Connector
PIN DESCRIPTION
RELAY 1 Common
1
2 RELAY 1 Normally Closed
3 RELAY 1 Normally Open
4 RELAY 2 Common
5 RELAY 2 Normally Closed
RELAY 2 Normally Open
6
RELAY 3 Common
7
RELAY 3 Normally Closed
8
RELAY 3 Normally Open
9
10 RELAY 4 Common
11 RELAY 4 Normally Closed
RELAY 4 Normally Open
12
GROUND
13
RELAY 5 Common
14
RELAY 5 Normally Closed
15
16 RELAY 5 Normally Open
RELAY 6 Common
17
18 RELAY 6 Normally Closed
RELAY 6 Normally Open
19
RELAY 7 Common
20
21 RELAY 7 Normally Open
RELAY 7 Normally Closed
22
23
RELAY 8 Common
24
RELAY 8 Normally Closed
25 RELAY 8 Normally Open

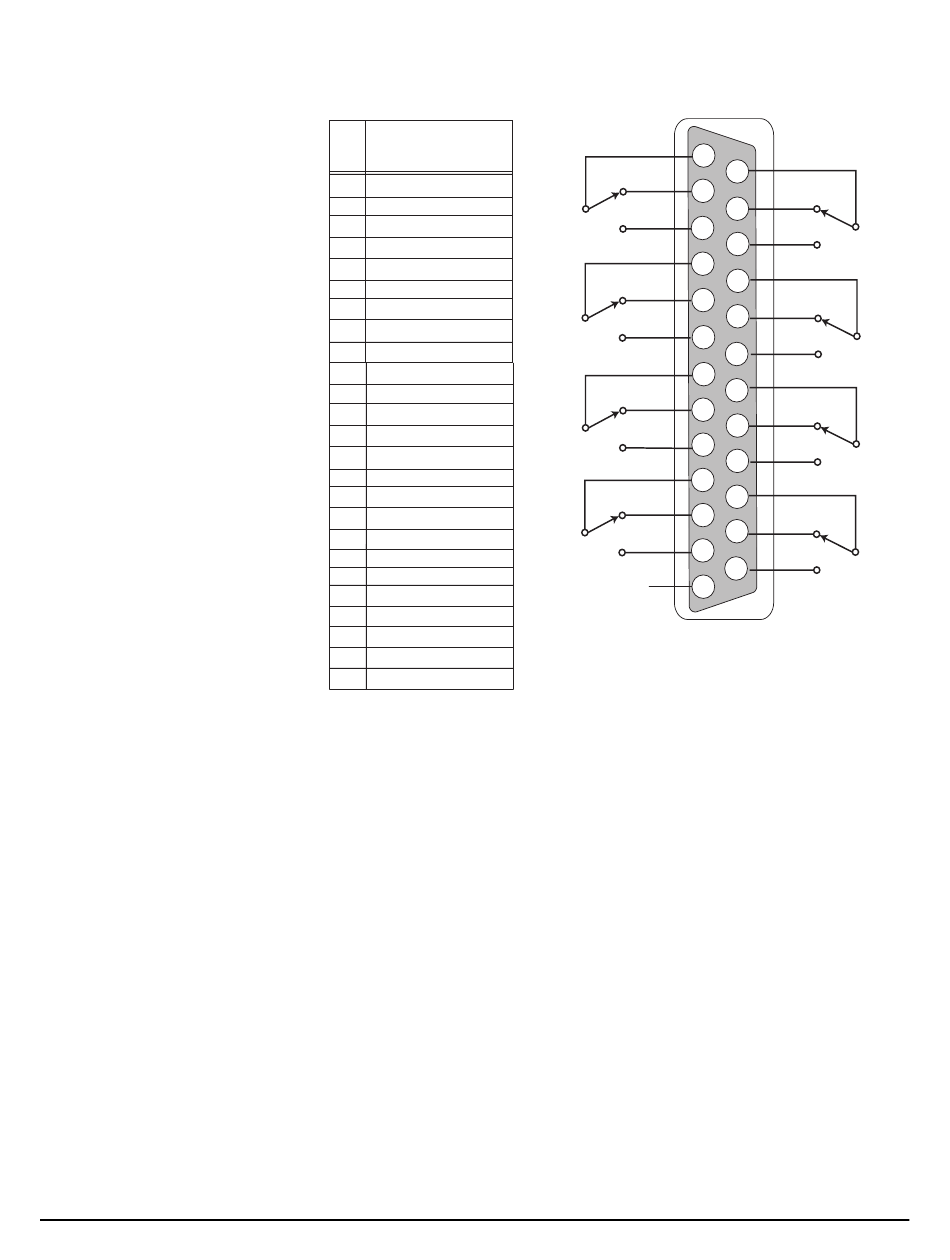

Figure 1-22: GPO Relay DB25 Connector Pinout Diagram
5 GPI/RLY Interface
This interface is not activated on the Easi-PiCo. It is used to connect to
external GPI or RLY interface. This can be activated after the Easi-PiCo is
upgraded to an Eclipse PiCo and with the addition of extra modules.
6 LAN Connector
This interface is not activatedon Easi-PiCo. The LAN RJ45 connector is a
standard Ethernet. This feature can only be used after the Easi-PiCo is
upgraded to an Eclipse PiCo.
7 General Purpose Input Connector
The GPI connector is not activated on the Easi-PiCo but can be accessed
after upgrade.
Common
1
Normally Closed
RELAY 1
2
Normally Open
3
Common
4
Normally Closed
RELAY 2
5
Normally Open
6
Common
7
Normally Closed
RELAY 3
8
Normally Open
9
Common
10
Normally Closed
RELAY 4
11
Normally Open
12
Digital Ground 13
30 VDC at 1 Ampere
E a s i - P i c o U s e r G u i d e
Common
14
Normally Closed RELAY 5
15
Normally Open
16
Common
17
Normally Closed
RELAY 6
18
Normally Open
19
Common
20
RELAY 7
Normally Closed
21
Normally Open
22
Common
23
RELAY 8
Normally Closed
24
Normally Open
25
