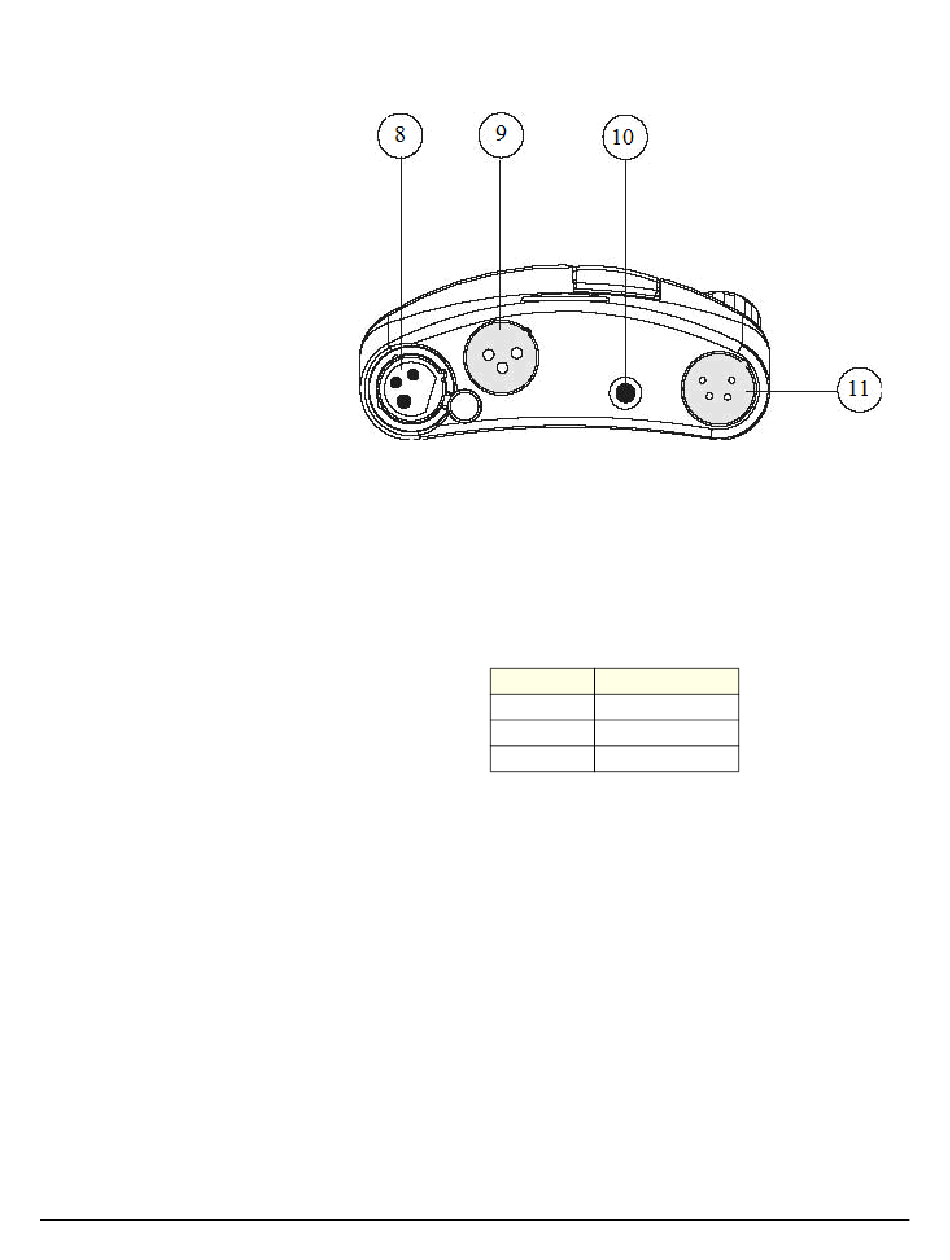

Intercom Connector (8)
The beltpack connects to a main station, power supply or to other beltpacks
through the connector labelled "intercom." When you press the blue button next
to this connector the attached cable releases.
Table 1-2: Intercom Connector Pinout
Loop-Through Connector (9)
The "loop-through" socket can be used to connect the beltpack to another
beltpack. It can also connect to an intercom station if necessary.
Table 1-1shows the pin assignments for this connector.
Auxiliary ("AUX") Headphone (10)
Clear-Com designed the auxiliary headset connector, labelled "AUX," for use
with the CC- 25 (Ultra-Light) headset. The beltpack's circuitry is designed to
work with the CC-25 headset to produce excellent quality sound.
While certain types of mobile-phone style headsets will fit the 2.5 mm AUX jack,
using these headsets may degrade system performance. You can use such
mobile-phone style headsets more reliably with listen-only applications.
By default, the AUX connector provides bias voltage for electret microphones.
Figure 1-38: RS-601 Connections
Pin Function
1 Ground
2 +30 VDC
3 Intercom
