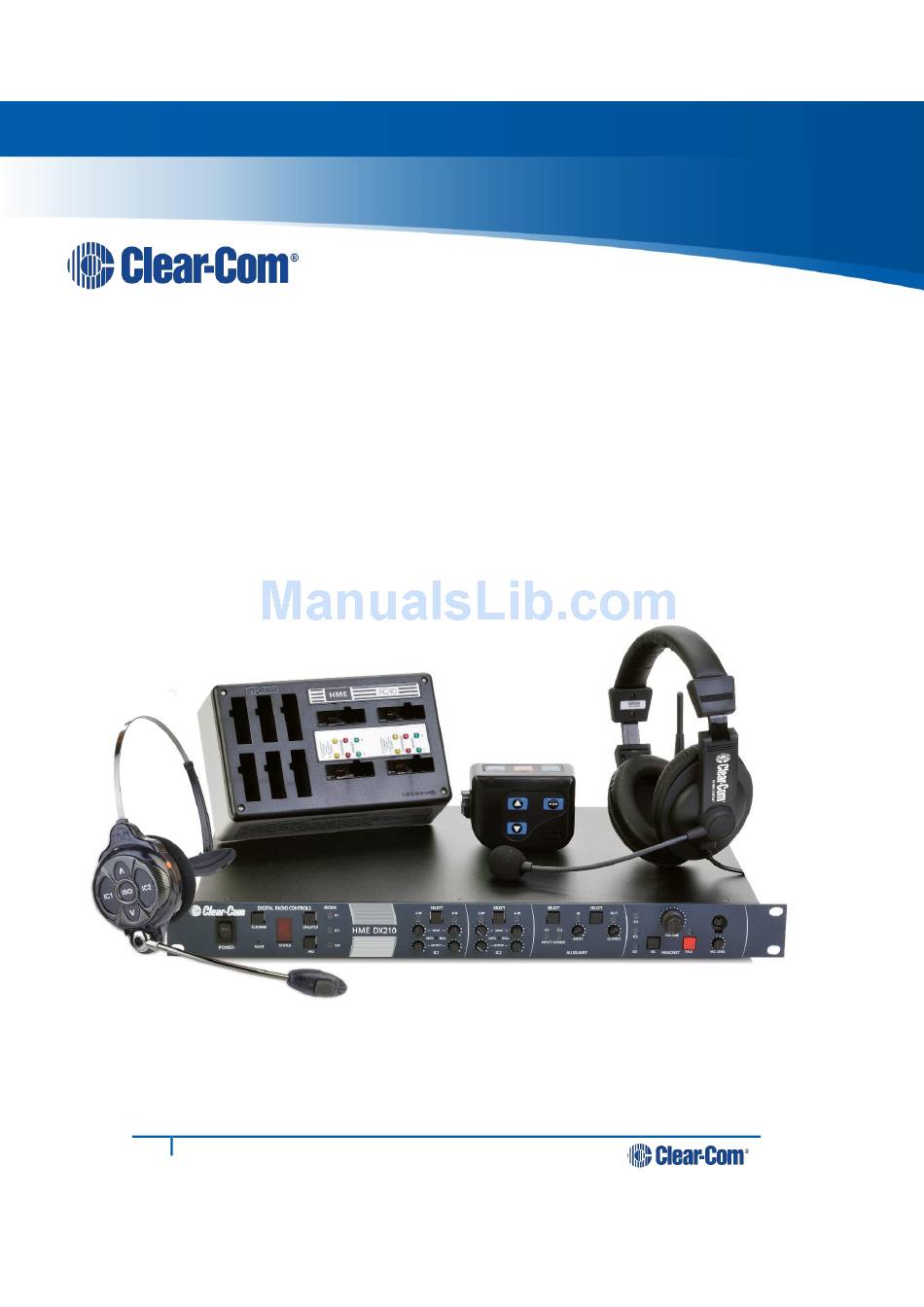

- Page 1 Clear-Com HME DX210 Dual-Channel Wireless Intercom Operating Instructions 400G751 Rev: B 1/27/17...
- Page 3 No part of this document may be reproduced in any form by any means without prior written authorization of Clear-Com, an HME Company. Clear-Com Offices are located in California, USA; Cambridge, UK; Montreal, Canada; and Beijing, China.
-
Page 4: Fcc Notice
Clear-Com, LLC, an HM Electronics, Inc. company, is not responsible for equipment malfunctions due to erroneous translation of its publications from their original English version. Illustrations in this publication are approximate representations of the actual equipment, and may not be exactly as the equipment appears. - Page 5 Hereby, Clear-Com, LLC, an HM Electronics, Inc, company, declares that the DX210 is in compliance with the essential requirements and other relevant provisions of R&TTE Directive 1999/5/EC. This product operates in the 2400 to 2483.5 MHz frequency range. The use of this frequency range is not yet harmonized between all countries.
-
Page 6: Table Of Contents
Jumper Settings ......................23 Multiple Base Station Registration ................24 Interference Avoidance through Spectrum Friendly ..........26 Adaptive Frequency Hopping .................. 28 Audio Routing Diagram .................... 31 Appendix G: DX Series LED Aid ................32 Clear-Com HME DX210 Operating Instructions... -
Page 7: System Overview
® The Clear-Com HME DX210 is a 2-channel Digital Wireless Intercom System that supports up to 15 beltpacks or all-in-one headsets per base station (any combination of Beltpacks or All-In-One Headsets). Using the DX210 in the 2-channel mode, any 3 of the 15 beltpacks and all-in-one headsets can transmit simultaneously. -
Page 8: Base Station Front Panel
49. AUX OUT Connector 42. IC1 2-W XLR-3F Connector 50. Relay Connector 43. CLEAR-COM/RTS Select Switch 51. DC Power Connector 44. IC2 2-W XLR-3F Connector 52. ANT (R-TNC) 45. IC2 2-W XLR-3M Connector 53. Chassis Grounding Screw Clear-Com HME DX210 Operating Instructions... -
Page 9: Beltpack - Bp210
10. Battery-release latch 1.5 All-In-One Headset – WH220 1. IC1 button 6. Power/mode light 2. ISO (Isolate) button 7. Microphone 3. Volume-up button 8. Power button 4. IC2 button 9. Battery 5. Volume-down button 10. Battery-release latch Clear-Com HME DX210 Operating Instructions... -
Page 10: System Setup
Up to four batteries can be charged in the battery charger at the same time. The battery status lights next to each charging port are explained below. Up to six fully charged batteries can be stored in the battery storage ports. Clear-Com HME DX210 Operating Instructions... - Page 11 NOTE: Batteries should not be left in charge ports after being fully charged. If a battery is left in a charge port for more than three weeks, the yellow indicator may light up. In this case, it does not indicate a faulty battery. Clear-Com HME DX210 Operating Instructions...
-
Page 12: Connect Ac50 Power Supply
IMPORTANT: Batteries should not be left in charge ports after being fully charged. A battery left in a charging port for more than three weeks may display the yellow indicator light, but it does not indicate a faulty battery. Clear-Com HME DX210 Operating Instructions... -
Page 13: Basic Base Station Setup
Press the POWER switch (#1) on the front panel to turn on the base station. A red light on the switch should go on. If you have more than one base station, refer to Appendix D, page 24 for multiple base station registration. Clear-Com HME DX210 Operating Instructions... -
Page 14: Beltpack And All-In-One Headset Setup And Registration
Press it in until it snaps. Place each Beltpack in a pouch. Plug its headset cable connector into each Beltpack. All-In-One Headsets Insert a fully charged battery in each Headset. Press it in until it snaps. Clear-Com HME DX210 Operating Instructions... -
Page 15: Register Beltpacks And All-In-One Headsets
Press the RESET button at the lower-left corner of the base station with a pen or similar pointed object. When the STATUS display becomes blank, press the REG button and register the beltpack or all-in-one headset again. If registration fails again, call your dealer for assistance. Clear-Com HME DX210 Operating Instructions... -
Page 16: Beltpacks And All-In-One Headset Settings
Decrease sidetone level (5 steps) * NOTE: There is no sidetone adjustment function for All-In-One Headsets. Power button NOTE: If you are not connecting a wired intercom, go on to System Operation, section 3, page 14. Clear-Com HME DX210 Operating Instructions... -
Page 17: Interfacing With 2-Wire Or 4-Wire Intercoms
NOTE: If no power is detected at the 2-W connector, the 2-W light will turn red and no audio will be passed through. Plugging in a connection to a Clear-Com or RTS power supply will turn the light green and operation will begin. -
Page 18: Interfacing With Auxiliary Audio Equipment
Base station rear panel The cable connectors must be 3-pin XLR type for balanced +20dBu Pin 1 = Ground maximum audio input/output, with Pin 2 = Audio + Pin 3 = Audio – the following pin connections: Clear-Com HME DX210 Operating Instructions... -
Page 19: Iso Relay
During ISO communication, a relay closure is provided. This can be used for tasks such as keying a long range radio or triggering an alert light. It can be activated from a beltpack, all-in-one headset or a local headset. Base station rear panel Clear-Com HME DX210 Operating Instructions... -
Page 20: System Operation
TALK light indicates that the TALK mode is active via the local headset. ● Use the VOLUME control to adjust the output to the local headset earpiece. ● Use the MIC LEVEL control to adjust the audio level from the local headset microphone. Clear-Com HME DX210 Operating Instructions... -
Page 21: Beltpack And All-In-One Headset Operation
If you press and hold the volume- down button, repeating beeps will be heard as the volume steps down to minimum. When minimum volume is reached, rapidly repeating beeps will be heard. Clear-Com HME DX210 Operating Instructions... -
Page 22: Adjusting Microphone Gain
For the All-in-One headset, press the blue Battery-release button, and slide the battery out from under the earpiece. Replace the batter in the same position as the removed battery, and snap it into place. Clear-Com HME DX210 Operating Instructions... -
Page 23: Troubleshooting
Plug into 2-W power supply. If the lack of powered 2-W system is intentional (such as when using a Clear-Com MT1, or when daisy-chaining multiple base stations), open the base station cover and set JP1 (IC1) and/or JP2 (IC2) to the ON position. If daisy-chaining, do not forget to also terminate one of the base stations by setting JP5 (IC1) and/or JP6 (IC2) to ON. -
Page 24: Technical Data
Gaussian filtered FSK, TDMA Frequency Stability: 13 ppm Harmonics/Spurious: Exceeds FCC and ETSI specifications over temperature BASE STATION RECEIVER Type: RF Sensitivity: Frequency Hopping, Spread Spectrum <-90dBm w 10-3 BER Frequency Stability: 13 ppm Distortion: <2% Clear-Com HME DX210 Operating Instructions... -
Page 25: Bp210 Beltpack Specifications
Modulation Type: Gaussian filtered FSK, TDMA Frequency Stability: 13 ppm Harmonics/Spurious: Exceeds FCC and ETSI specifications BELTPACK RECEIVER Type: RF Sensitivity: Frequency Hopping, Spread Spectrum <-90dBm w 10-3 BER Frequency Stability: 13 ppm Distortion: <2% Clear-Com HME DX210 Operating Instructions... -
Page 26: Wh220 All-In-One Headset Specifications
Modulation Type: Gaussian filtered FSK, TDMA Frequency Stability: 13 ppm Harmonics/Spurious: Exceeds FCC and ETSI specifications HEADSET RECEIVER Type: RF Sensitivity: Frequency Hopping, Spread Spectrum <-90dBm w 10-3 BER Frequency Stability: 13 ppm Distortion: <2% Clear-Com HME DX210 Operating Instructions... -
Page 27: Indicator Light Functions
IC1 Idle Steady Green IC1 TX Blinks Green Steady Green IC2 Idle Steady Red IC2 TX Blinks Red Steady Green ISO TX Blinks Red or Green Steady Red (depending on previous Mode) Low battery No indication Clear-Com HME DX210 Operating Instructions... -
Page 28: Multiple Base Station Daisy-Chaining
(not more) can be “daisy- ® ® of each base station (following Clear-Com / RTS chained” together with cables connected to the 4-W or AUX connectors. NOTE 1: DX210 does not provide 2-wire line power, therefore, 2-wire power bypass must be used. -
Page 29: Jumper Settings
If termination of the base station is necessary (such as when multiple base stations are daisy chained), set the JP5 (IC1) and/or JP6 (IC2) jumpers to the ON position on one base station (when connecting multiple base station together via 2-wire connection). Only one base station should be terminated per channel. Clear-Com HME DX210 Operating Instructions... -
Page 30: Multiple Base Station Registration
Press the REG button on the primary. The STATUS display will go blank. ● Register beltpacks and all-in-one headsets to the secondary base stations as instructed in section 2.3.2, page 9. After registration, turn off the secondary base station and all beltpacks and all-in-one headsets. Clear-Com HME DX210 Operating Instructions... - Page 31 For secondary base stations, the beltpacks and all-in-one headsets must always be registered after secondary base station registration, with the primary base station remaining active and the secondary base station displaying one bar. Clear-Com HME DX210 Operating Instructions...
-
Page 32: Interference Avoidance Through Spectrum Friendly
Register all beltpacks and all-in-one headsets to be used with each base station as instructed in section 2.3.2, page NOTE: If you change a base station’s frequency band setting, you will have to re-register all beltpacks and all-in-one headsets that were registered to that base station. Clear-Com HME DX210 Operating Instructions... - Page 33 Your DX210 should be set to the high or low band opposite any Wi-Fi frequency range in use. DX210 Low Band = 2.4000-2.4400 GHz DX210 High Band = 2.4433-2.4830 GHz Channel Wi-Fi Frequencies 2.412 2.417 2.422 2.427 2.432 2.437 2.442 2.447 2.452 2.457 2.462 2.467 2.472 2.484 GHz Clear-Com HME DX210 Operating Instructions...
-
Page 34: Adaptive Frequency Hopping
EN 300 238 v1.8.1. CLEAR-COM Adaptive Frequency Hopping In order to reduce interference with other equipment and comply with these new regulations, Clear-Com has implemented an Adaptive Frequency Hopping (AFH) mode for the new DX EU base stations. The key idea behind AFH is using only the good frequencies, or channels, unoccupied by other equipment. - Page 35 It is possible, however, that in an environment with severe interference that the system may experience a slight degradation. In the AFH mode, the Clear-Com system will use a minimum of 15 channels. If the environment is very crowded and less than 15 channels are truly available, there could be increased radio ‘packet loss’...
- Page 36 NOTE: If the Clear-Com system does not have AFH, then the base station should be set to operate in the region of the 2.4 GHz band where the Wi-Fi access point is not operating. For example, if the Wi-Fi access point is set to Wi-Fi channel 1, the base station should be set to operate in the ‘High’...
-
Page 37: Audio Routing Diagram
Audio Routing Diagram Clear-Com HME DX210 Operating Instructions... -
Page 38: Appendix G: Dx Series Led Aid
It takes a few seconds for the secondary to recognize that the primary is not available and revert to a primary state. However, you can register Beltpacks under this condition. Clear-Com HME DX210 System Guide... - Page 39 LED will be in hexadecimal. This means that the LED will represent the first 10 beltpacks as 0 to 9. Beltpac 11 will be represented by the letter A, beltpac 12 will be represented by the letter B and on up to beltpac 15 as E. Please see below. Beltpac or Headset Registry Clear-Com HME DX210 System Guide...
- Page 40 After this procedure is performed all bases, beltpacks and headsets will need to be re-registered to the base. 2400 to 2483.5 MHz is the operating frequency range. 2401.92 to 2439.94 MHz is the operating frequency range. 2443.39 to 2481.41 MHz is the operating frequency range. Clear-Com HME DX210 System Guide...
