E a s i - P i c o U s e r G u i d e

4. GETTING STARTED

There are 3 simple steps in getting started with the Easi-PiCo system
1. Select which one of the default maps to use (see pages 7-10)
2. Cable the system to suit
3. Select the map from the front of the Easi-PiCo user menu display.

SELECT WHICH ONE OF THE DEFAULT MAPS TO USE

The Easi-PiCo is pre-configured with the following maps
MAP #1 - Basic configuration
MAP # 2 - Party Line configuration
MAP # 3 - IFB configuration
MAP # 4 - Panels configuration

MAP #1 Basic Configuration

This is a straight forward configuration that gives the user access to the four
standard interfaces along with the possiblity of adding up to 4 more external
interfaces via the direct RJ45 ports. This configuration can support up to eight
panels.

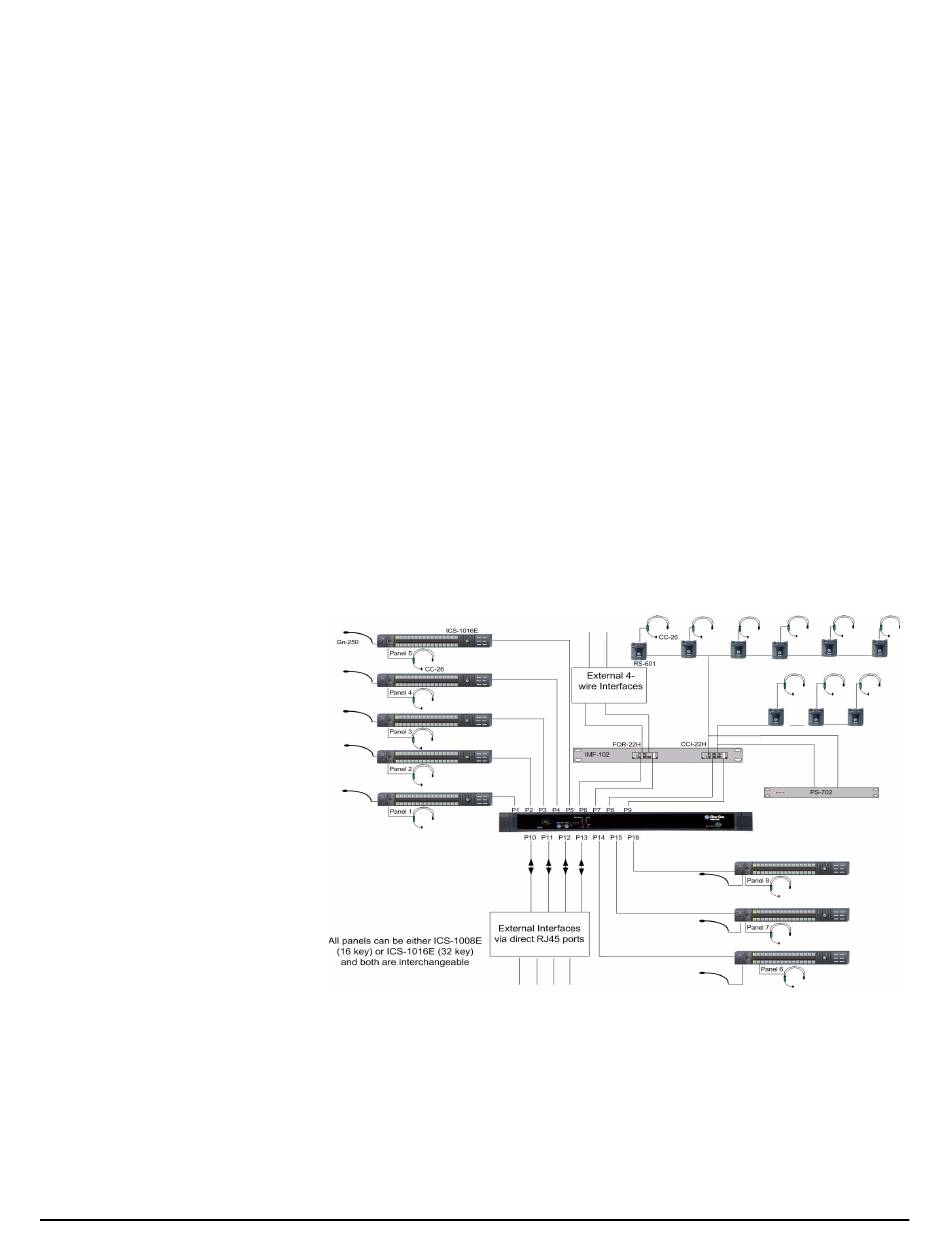

Figure 1-6: Basic Configuration System
This diagram shows all options attached.
7
