MAP #2 Party Line Configuration

The party line configuration map is designed to give the user the up to 8 party
line channels in one system; this gives the panel operators the option to speak to
eight different party line rings individually or simultaneously. This configuration
can support up to eight panels.

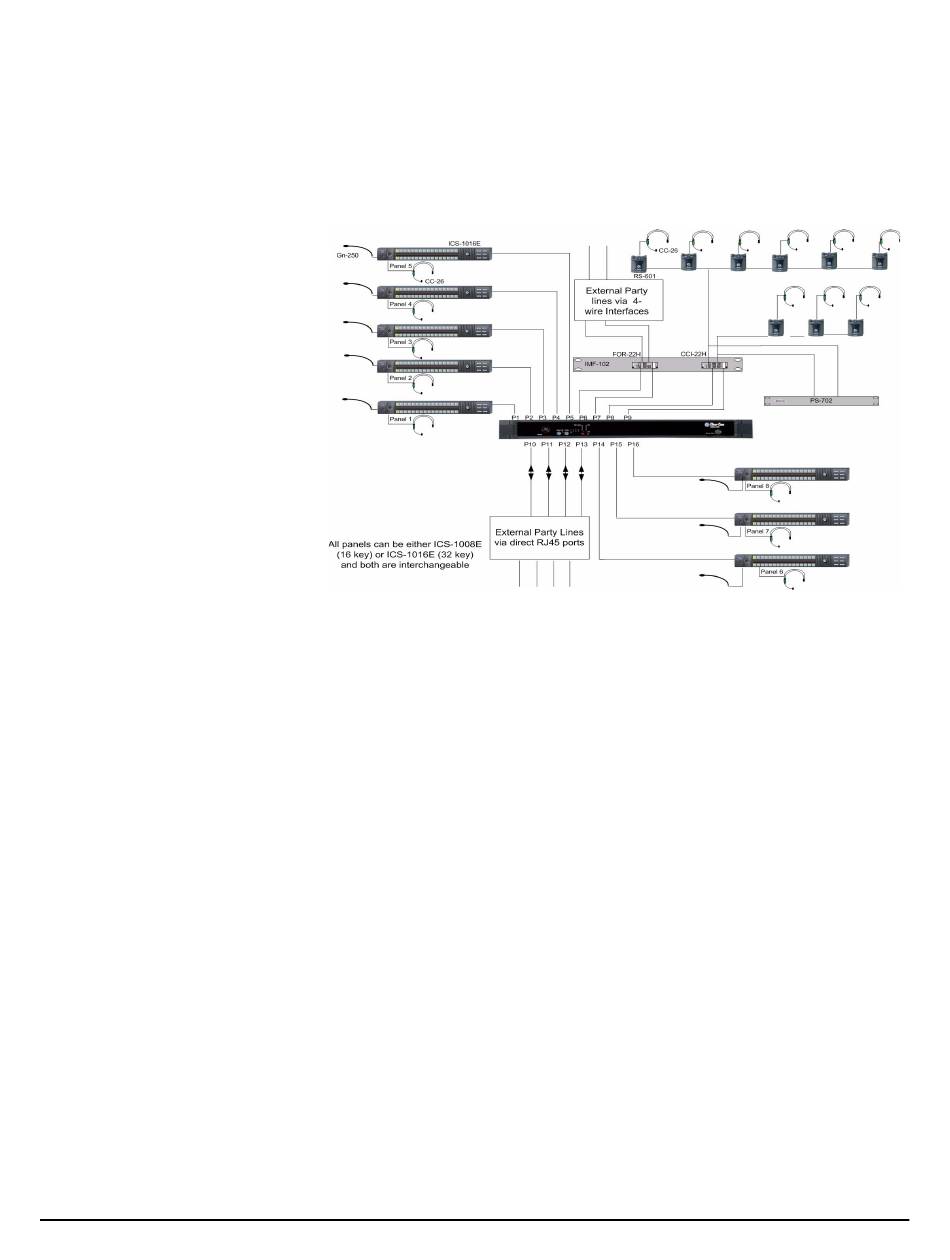

Figure 1-7: Party Line Configuration System
This diagram shows all options attached.
