MAP #3 IFB Configuration

The IFB configuration map is designed around a TV studio set-up with four IFB
(Interrupted Fold back) channels, one party line channel, one 4 wire interface
and a camera group which allows single or full group communications. This
configuration can support up to six panels.
IFB source 1 feeds both IFB#1 output (port 7) and IFB#2 output (port 8)

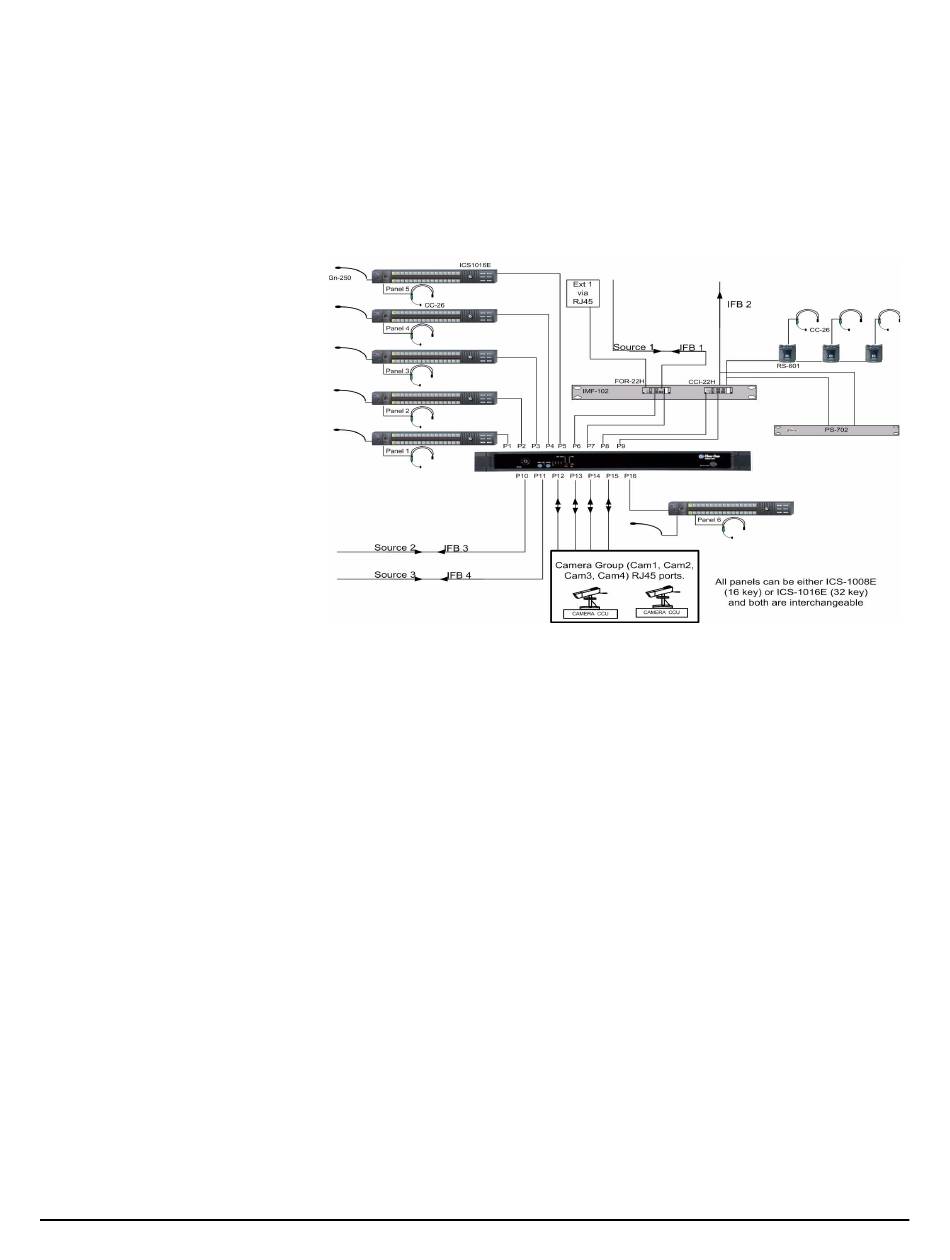

Figure 1-8: IFB Configuration System
This diagram shows all options attached.
