5. PANELS

ICS-1008E/ICS-1016E

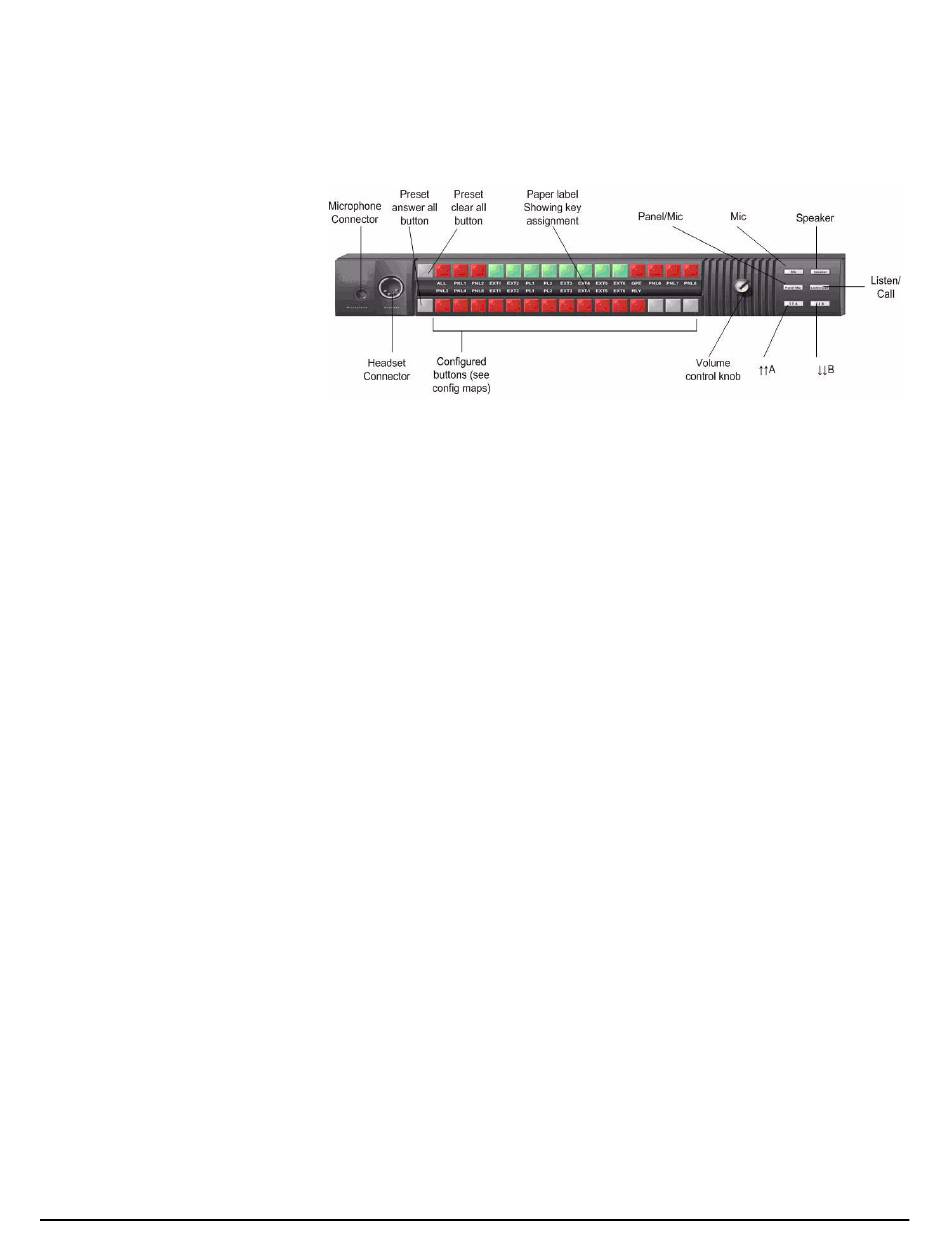

Figure 1-34: ICS-1008E Panel Facilities
Panel Microphone Connector
This connector allows panel operators to use a panel microphone. Plugging in a
panel microphone will initially cause the panel to switch to panel-microphone
and will turn the headset microphone off.
Headset Connector
The headset connector provides a front-panel connection for a headset. Plugging
in a headset will initially cause the panel to switch to headset mode.
Preset Answer all button / Preset Clear all button
The "Ans Back" button is used to answer calls to a panel from other panel or
interfaces not assigned to that panel's talk/listen buttons. When these calls arrive:
• The "Ans Back" button will flash bright red.
• The calling station's label will be temporarily assigned to the panel's
"Ans Back" button.
These two conditions will continue until the call is answered, or until the
answer-back time-out period lapses and the caller's label is automatically
removed. To answer the call push the "Ans Back" button. The button will turn
bright red indicating an active talk path to the caller. The talk path is active for as
long as the button is held down.
Note: The "Ans Back" button cannot be latched; it is a momentary-only
function.
To manually remove the caller's label from the "Ans Back" button push the
"Clear" button. The label assignment will be removed automatically after the
answer-back time-out period lapses. If another call (or calls) comes in while
answering a call using the "Ans Back" button:
• The user will hear the caller's voice.
• The calling station's label will be placed in the panel's answer-back stack.
