10. MAP CONFIGURATIONS

The Easi-PiCo is pre-configured with the following maps:

Basic Configuration.

Party Line Configuration.
IFB Configuration.
Panels Configuration.
BASIC CONFIGURATION
This is a straightforward configuration that gives the user access to the four
standard Interfaces along with the possiblity of adding up to 4 more external
interfaces via the direct RJ45 ports. This configuration can support up to eight
panels.

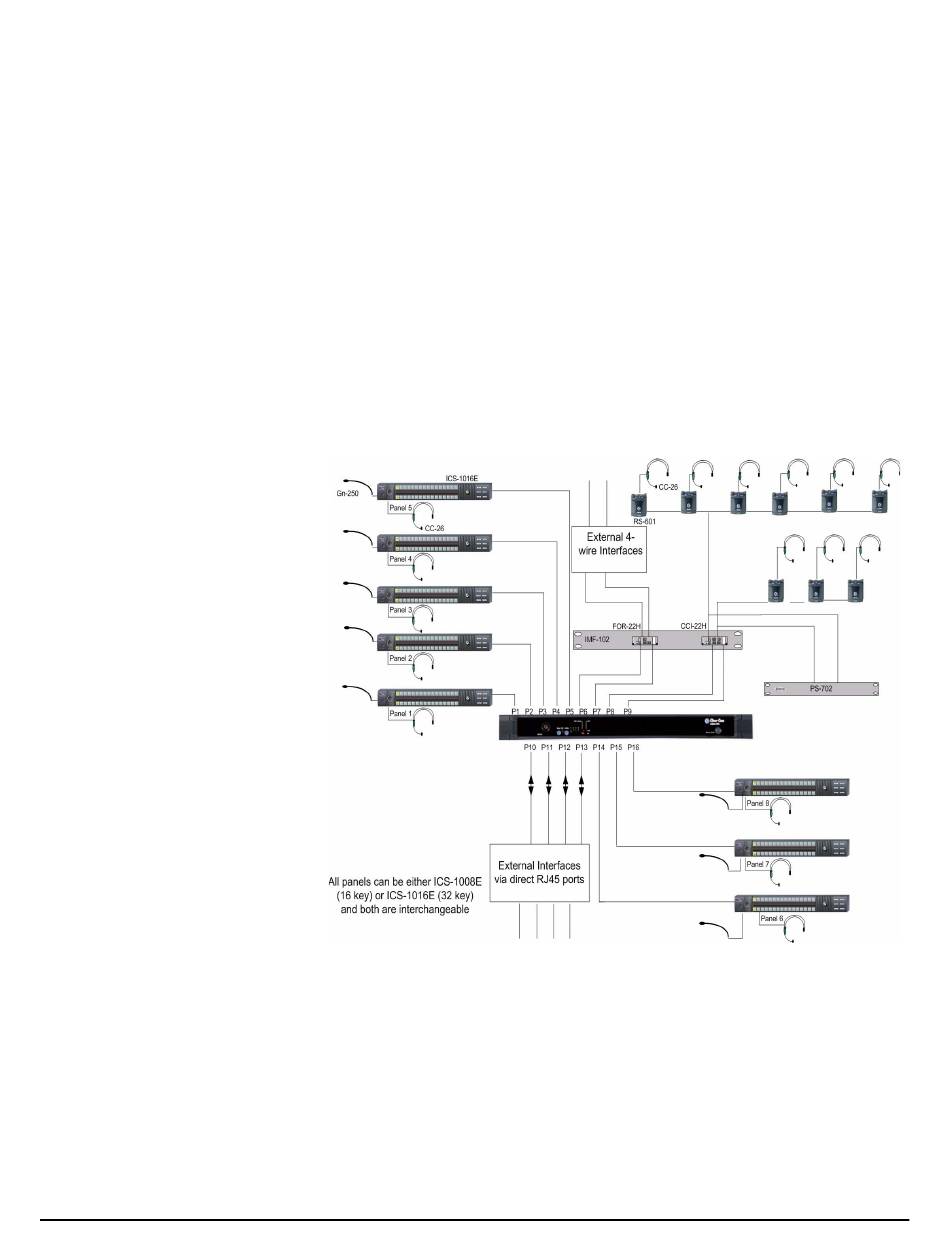

Figure 2-42: Basic Configuration Map
This diagram shows all options attached.
