MAP #4 Panels Configuration

The panels' configuration is designed to offer the most amount of panels with
the four standard interfaces (two party lines and two 4-wires). This configuration
can support up to twelve panels.

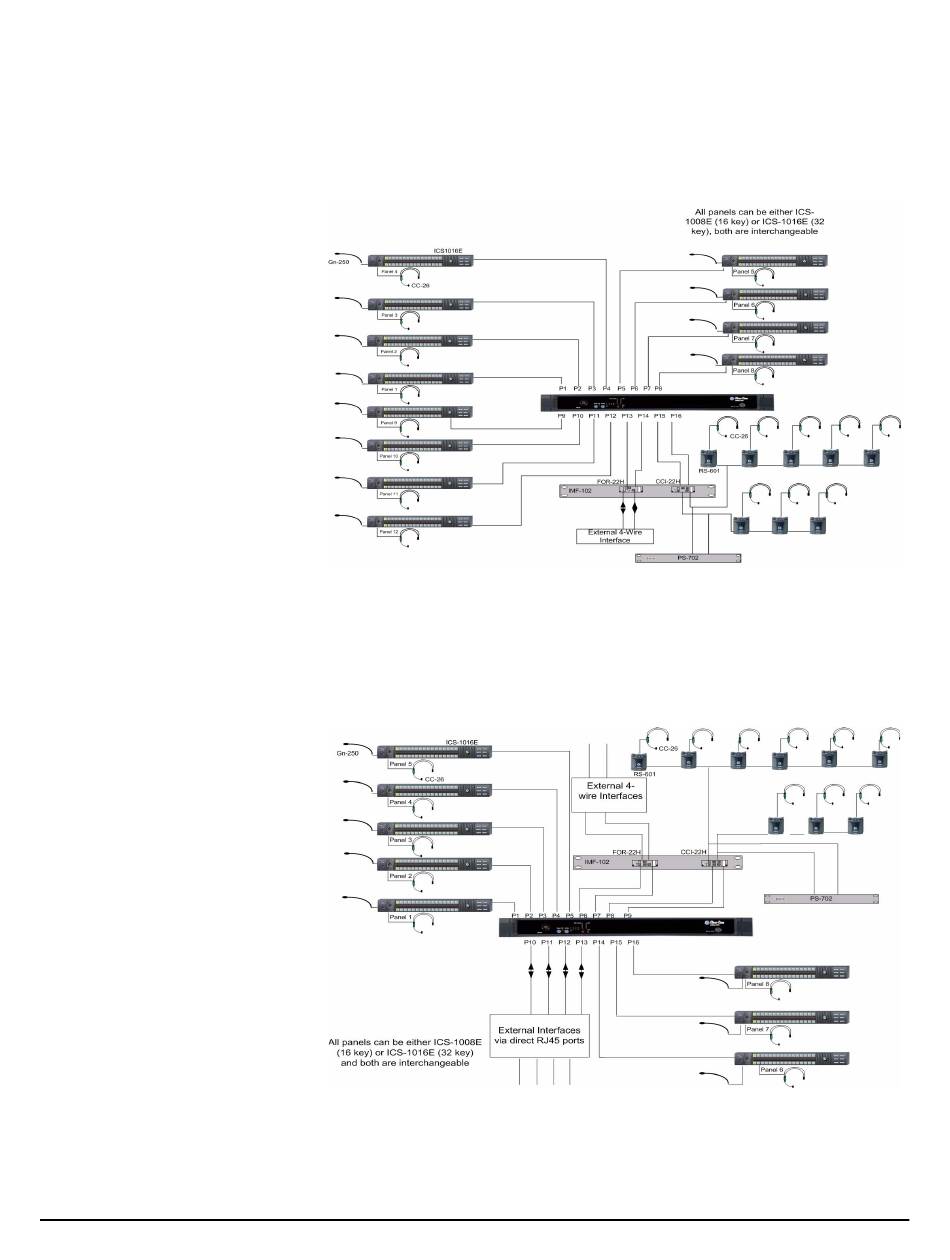

Figure 1-9: Panels Configuration System
This diagram shows all options attached.

CABLE THE SYSTEM TO SUIT

Figure 1-10: System Cabling
