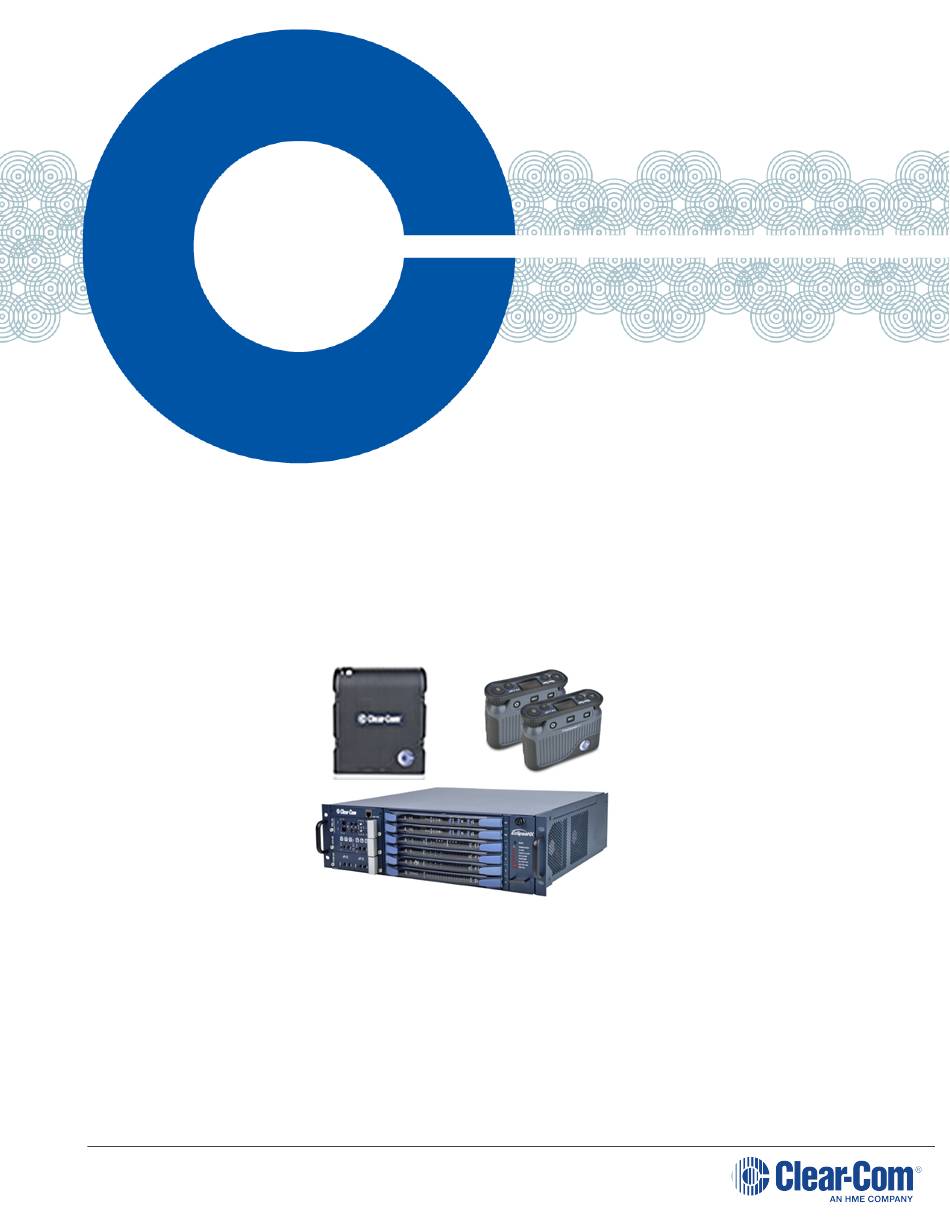

Page 1 User Guide FreeSpeak II for Eclipse User Guide Part Number: PUB-00064 Rev C Date: July 26, 2023...
Page 2 The product described in this document is distributed under licenses restricting its use, copying, distribution, and decompilation / reverse engineering. No part of this document may be reproduced in any form by any means without prior written authorization of Clear-Com, an HME Company.
Page 3: Table Of Contents
3.2 Adding an E-IPA-HX card to the software 3.3 Adding the E-Que card for an FS II transceiver or splitter to the matrix 3.4 Connecting to transceivers 3.5 Clear-Com Cable Recommendations 4 Operating the wireless beltpack 4.1 Overview of the wireless beltpack 4.2 Beltpack user controls...
Page 4 FreeSpeak II for Eclipse | User Guide 5.12 Setting display mode 5.13 Setting system connect 5.14 Enabling over the air (OTA) registration mode from a beltpack 5.15 Performing a site survey 6 Operating the FS II IP Transceiver (IPT) 6.1 IP rating (Protection Marking) 6.2 FS II IP Transceiver connector panel 6.3 IP Transmitter LEDs 6.4 IP Transceiver fans and filters...
Page 5 FreeSpeak II for Eclipse | User Guide 7.5 Placing the transceivers and splitters 7.6 Determining coverage areas 7.7 Coverage areas under various conditions 7.8 FS II Transceiver setup rules and tips 7.9 Doing a site survey to determine coverage areas 7.10 Registering beltpacks 7.11 Upgrading FS II Transceiver firmware 7.12 Upgrading by USB connection...
Page 6 FreeSpeak II for Eclipse | User Guide 10.8 United Kingdom (UKCA Mark) 10.9 Taiwan Statements 10.10 Customs Union EAEU 10.11 Waste Electrical and Electronic Equipment (WEEE) Page 6...
Page 7: Important Safety Instructions
Use only chargers provided by HME/Clear-Com to charge the battery packs or beltpacks. These include:...
Page 8: Safety Symbols
FreeSpeak II for Eclipse | User Guide This product uses Lithium Ion Batteries which can be a fire hazard, if used improperly. Use only HME/Clear-Com supplied BAT60 or equivalent battery packs to ensure safe operation of the beltpack. When using AA Batteries follow all safety instructions from manufacturer. Do not mix different battery chemistries.
Page 9: Introduction To Freespeak Ii
FreeSpeak II for Eclipse | User Guide Introduction to FreeSpeak II ® With a FreeSpeak II (FS II) wireless beltpack you can roam freely around a site or facility while talking and listening to all, or selected, members of the production team. With its four communication routes, the beltpack gives you the flexibility to communicate quickly and seamlessly with individuals or groups, and to change communication routes as often as needed.
Page 10 FreeSpeak II for Eclipse | User Guide The transceiver network that provides custom coverage zones in which beltpacks can operate. Beltpacks can roam freely between coverage zones. FS II also includes a drop-in battery charger for the beltpack Li-Ion batteries. You can conveniently charge the battery by placing the whole beltpack into the charger, or by placing individual batteries into the charger.
Page 11 FreeSpeak II for Eclipse | User Guide Page 11...
Page 12 FreeSpeak II for Eclipse | User Guide Note: The E-IPA-HX card with IP Transceiver offers twice the beltpack density compared to the E-Que card . Page 12...
Page 13: Freespeak Ii With An Fsii Transceiver (1.9 And 2.4)
FreeSpeak II for Eclipse | User Guide FreeSpeak II with an FSII Transceiver (1.9 and 2.4) Using a transceiver splitter allows up to five transceivers to be connected to each transceiver port. Each E-Que card can connect to two splitters and so support up to 10 transceivers. Each transceiver supports up to five beltpacks.
Page 14 8 - 10 codec 16 - 20 24 - 30 32 - 40 2.4 GHz Not supported Not supported Note: The IP Transceiver supports up to 10 beltpacks, but to enable effective roaming Clear-Com recommends eight beltpacks per transceiver. Page 14...
Page 15: Fsii 1.9 Ghz/Fsii 2.4 Ghz
FreeSpeak II for Eclipse | User Guide FSII 1.9 GHz/FSII 2.4 GHz Page 15...
Page 16: National Radio Carrier Frequencies
FreeSpeak II for Eclipse | User Guide National Radio Carrier Frequencies The carrier frequencies allocated for a radio space vary according to location. This affects the amount of belt packs that can be supported in one RF area. Page 16...
Page 17 FreeSpeak II for Eclipse | User Guide Number of carrier Location Maximum belt packs in one RF cell frequencies 25 belt packs, 50 beltpacks with the United States FreeSpeak II IP Transceiver European Union and 50 beltpacks, 100 beltpacks with the elsewhere FreeSpeak II IP Transceiver Note:...
Page 18: Installing A System
FreeSpeak II for Eclipse | User Guide Installing a system This chapter explains how to install a FreeSpeak II system, including cable connections, registering beltpacks and performing a site survey to optimize system performance. A FreeSpeak II system can be used with an Omega, Median or Delta matrix. Installing and removing an E-IPA-HX card To install an E-IPA-HX card: 1.
Page 19: Adding The E-Que Card For An Fs Ii Transceiver Or Splitter To The Matrix
FreeSpeak II for Eclipse | User Guide Adding the E-Que card for an FS II transceiver or splitter to the matrix Note: You can only use the FS II splitter with FS II transceivers that connect to an E-Que card. You cannot use the splitter with the FreeSpeak II IP Transceiver.
Page 20 You cannot have both E-Que Transceiver/Splitter and E-Que FS II Transceiver/Splitters configured on the same matrix. For information about integrating 2.4 GHz FSII with 1.9 GHz FSII IP, please contact Clear-Com Technical Support. Page 20...
Page 21: Connecting To Transceivers
FreeSpeak II for Eclipse | User Guide 3.3.3 Selecting an FS II-TA transceiver card type Selecting an FS II-TA transceiver card type automatically configures an E-Que card with eight transceiver ports (1 to 8 on the rear card). Each of those transceiver ports provides five user ports and one control port.
Page 22 FreeSpeak II for Eclipse | User Guide beltpacks can have continuous coverage. The use of the splitter also extends the distance that the transceivers can be located from the matrix to 1600 metres (5250 feet) if 24AWG cable is used or 800 metres (2625 feet) if 26AWG cable is used (assuming the same cable type is used to connect the transceiver to the splitter and the splitter to the matrix).
Page 23 FreeSpeak II for Eclipse | User Guide Page 23...
Page 24: Clear-Com Cable Recommendations
You musty set the card type to Splitter mode in Cards and Ports in the EHX software interface before connecting the devices. See section 3.1.2. for more detail. Note: Clear-Com Cable Recommendations Use the following Category (Cat), American Wire Gauge (AWG) and shielded cable types. Page 24...
Page 25 FreeSpeak II for Eclipse | User Guide Specification Description Higher Cat numbers will support a higher bandwidth. Therefore, by using a higher Cat number, you are future proofing your system to Category (Cat) some extent. Example: Cat 5e; up to 1GB. Cat 6; up to 10GB. Use Cat 5e or higher.
Page 26: Operating The Wireless Beltpack
FreeSpeak II for Eclipse | User Guide Operating the wireless beltpack This chapter explains how to operate the FS II beltpack. It contains the following sections: Overview of the wireless beltpack on page 26 Beltpack user controls on page 30 Using the beltpack on page 37 Overview of the wireless beltpack An FS II wireless beltpack gives you simultaneous access to up to five channels of talk/listen...
Page 27 FreeSpeak II for Eclipse | User Guide Partyline display mode – displays role name, signal strength, battery level and volume levels for channel A and channel B. Page 27...
Page 28 FreeSpeak II for Eclipse | User Guide Page 28...
Page 29 Battery life remaining (in hours for Li-Ion, in % for AA battery). A 4-pin male headset connector is provided for connection with a standard Clear-Com headset or similar device. The FS II beltpack will operate for approximately 18 hours using a rechargeable Li-Ion battery.
Page 30: Beltpack User Controls
FreeSpeak II for Eclipse | User Guide Beltpack user controls 4.2.1 Top controls Key to beltpack top controls Feature Description Talk key A and B. Press to talk or listen on channel A and channel B. Talk key C. Press to talk or listen on channel C.In menu mode, press to cancel menu.
Page 31 FreeSpeak II for Eclipse | User Guide Beltpack display icons and indicators Name Icon Description A descriptive name for the channel. The maximum Key label length is 10 characters. Role name A descriptive name for the beltpack role. Channel listen The volume of the channel audio.
Page 32 FreeSpeak II for Eclipse | User Guide Beltpack headset tones/alerts Event Tone Mid to high beep, as long as call is active Call signal Mid on 200ms, mid off 0ms, high on 200ms, high off 400ms. Repeat if key held. High beep, long then short.
Page 33 FreeSpeak II for Eclipse | User Guide 4.2.4 Front controls Page 33...
Page 34 FreeSpeak II for Eclipse | User Guide Key to beltpack front controls Feature Description Right rotary level control. Turn clockwise or counter-clockwise to adjust volume.In menu mode, turn clockwise or counter-clockwise to navigate the menus. Power button. Press to power up or power down the beltpack. Reply key.
Page 35 FreeSpeak II for Eclipse | User Guide Key to beltpack bottom connectors Feature Description LED torch LED torch control Headset socket (4-pin XLR–M) Function Mic ground Mic + Earphone ground Earphone Headset socket pin out Headset socket (7-pin XLR–M) Function Mic ground Mic + Ground...
Page 36 FreeSpeak II for Eclipse | User Guide 4.2.6 Beltpack rear panel Key to beltpack rear panel Feature Description Beltpack clip Beltpack battery compartment Page 36...
Page 37: Using The Beltpack
HME/Clear-Com with your beltpack. The beltpack batteries are located inside the beltpack battery compartment. The beltpack can use a Clear-Com rechargeable Li-Ion battery or AA batteries. The AC60 battery charger can charge up to five batteries simultaneously. To recharge the beltpack battery: 1.
Page 38 FreeSpeak II for Eclipse | User Guide 4.3.3 How to set AA battery type: Nickel-metal hydride (NiMHi) or Alkaline for wireless beltpacks FreeSpeak II wireless beltpacks are supplied with Li-Ion batteries and battery charger. However, in some cases you may wish to use AA batteries. You may need to use standard AA alkaline batteries, or in a high atmospheric pressure (hyperbaric) environment, where you can’t use Li-ion batteries, you may need to use NiMHi batteries. ...
Page 39 FreeSpeak II for Eclipse | User Guide 4.3.4 Powering on the beltpack The recessed power button is used to turn the FS II beltpack on and off. Press and hold the button for about three seconds to turn the beltpack on. To turn it off, press and hold the button for about three seconds.
Page 40 FreeSpeak II for Eclipse | User Guide clockwise to decrease volume. The current volume level for the channel is shown on screen. 4.3.6 Entering and exiting Menu mode Use Menu mode to: Configure the settings for the beltpack. Read beltpack information such as software version Perform a site survey to maximize signal strength and coverage.
Page 41 FreeSpeak II for Eclipse | User Guide The upgrade file is downloaded to the beltpack or transceiver. Note: You can connect more than one beltpack to the computer if you have multiple USB ports. The units will be upgraded sequentially. 4.3.10 Upgrading beltpack firmware by Over The Air Upgrade Note:...
Page 42: Programming On The Beltpack
FreeSpeak II for Eclipse | User Guide Programming on the beltpack This chapter explains how to program the beltpack using the beltpack's menu system. It contains the following sections: Introduction to programming on the beltpack on page 42 Configuring the beltpack volume settings on page 44 Configuring the beltpack headset on page 45 Configuring the beltpack microphone on page 46 Configuring the beltpack display and LEDs on page 47...
Page 43 FreeSpeak II for Eclipse | User Guide Site Survey Note: The menus that appear depend on the menu access level. See Setting full menu access on page To select a submenu turn either of the two rotary dials clockwise. This will scroll down the submenu options.
Page 44: Configuring The Beltpack Volume Settings
FreeSpeak II for Eclipse | User Guide Configuring the beltpack volume settings You can configure the following: The volume on each of the four channels The beltpack master volume The volume of the line-in feed. 5.2.1 Configuring the beltpack channel volumes and master volume Each of the four beltpack channel volume levels is configurable separately.
Page 45: Configuring The Beltpack Headset
FreeSpeak II for Eclipse | User Guide 1. To enter the beltpack menu, press and hold the Menu key. 2. Turn either rotary control clockwise to highlight Line In Vol Lvl, and press the Menu Select key (D). 3. Use either rotary control to select between -15 dB to 6dB 4.
Page 46: Configuring The Beltpack Microphone
FreeSpeak II for Eclipse | User Guide 1. To enter the beltpack menu, press and hold the Menu key. 2. Use the rotary and Menu Select keys to select Settings > Headset Options > Auto Detect. 3. Use either rotary control to select between: 4.
Page 47: Configuring The Beltpack Display And Leds
FreeSpeak II for Eclipse | User Guide 5.4.1 Setting the microphone type Use this setting to specify the type of microphone you are using. You can also allow the beltpack to automatically detect what kind of microphone is present. 1. To enter the beltpack menu, press and hold the Menu key. 2.
Page 48: Configuring The Beltpack Alarm Options
FreeSpeak II for Eclipse | User Guide 5.5.1 Setting the display and LED brightness Use this setting to control the brightness of the display. The beltpack automatically dims after a timeout period if no key is used or there is no incoming call or call alert. You can adjust the timeout period.
Page 49 FreeSpeak II for Eclipse | User Guide Low battery alarm Low battery alarm threshold Out of range alarm Call alert mode Note: See 4.2.3 Beltpack headset tones/alerts for a description of tones and alerts. 5.6.1 Setting the low battery alarm Use this setting to determine how the beltpack behaves when battery power is low.
Page 50 FreeSpeak II for Eclipse | User Guide 5.6.3 Setting the out of range alarm Use this setting to determine what kind of alarm the beltpack issues when it moves out or range of a transceiver. You can set the following alarms: Audio on 1.
Page 51: Selecting The Beltpack Role Default Set
FreeSpeak II for Eclipse | User Guide Selecting the beltpack role default set Use this setting to set the beltpack configuration to the default settings defined in the EHX configuration map for that role. 1. To enter the beltpack menu, press and hold the Menu key. 2.
Page 52: Setting The Listen Again Option
FreeSpeak II for Eclipse | User Guide None Basic Normal Advanced If this setting is not enabled, the menu access is set in the EHX software to one of the above four levels. When it is enabled, the beltpack has full menu access. Note: If you change this setting, it will apply until the beltpack role changes, or the beltpack is power cycled.
Page 53: Control Audio On Keys C & D (Beltpack)(Advanced Menu Option Only)
FreeSpeak II for Eclipse | User Guide 1. To enter the beltpack menu, press and hold the Menu key. 2. Use the rotary and Menu Select keys to select Settings > Listen Again Opt > Recording Time. 3. Use either rotary control to select a value between Off and 15 seconds. To determine how long the message is stored: 1.
Page 54: Setting Display Mode
FreeSpeak II for Eclipse | User Guide 1. To enter the beltpack menu, press and hold the Menu key. 2. Use the rotary and Menu Select keys to select Information. You can read the following information: Item Value Beltpack role Role name SW (software) Version number...
Page 55 FreeSpeak II for Eclipse | User Guide The beltpack needs to be previously registered and connected. You need the Menu Access code, available from Eclipse EHX. (The default code is 4632). To view or change the Menu Access code select Configuration > Preferences. The following screen appears: 1.
Page 56: Performing A Site Survey
FreeSpeak II for Eclipse | User Guide 4. Press the D key on the beltpack to select this option. 5. A confirmation screen will appear. Select Y to confirm. The system will now be open for registration for 2 minutes. 6.
Page 57: Operating The Fs Ii Ip Transceiver (Ipt)
FreeSpeak II for Eclipse | User Guide Operating the FS II IP Transceiver (IPT) This chapter describes how to use the FreeSpeak II IP transceiver. For information about operating the FS II Transceiver that connects to an E-Que card, see Operating the FS II Transceiver on page The FS II IP Transceiver (IPT) forms the transmission link between the FS II beltpacks and the matrix.
Page 58: Ip Rating (Protection Marking)
FreeSpeak II for Eclipse | User Guide IP rating (Protection Marking) The transceiver has an IP rating of 53 so it can be mounted outside and will be resistant to weather conditions. FS II IP Transceiver connector panel Warning: do not connect more than one IP port to your IP network. This may lead to a broadcast storm and could seriously degrade the performance of your network.
Page 59: Ip Transceiver Fans And Filters
FreeSpeak II for Eclipse | User Guide Transceiver state Status LED (LED 1 shows normal operating mode) Power on test failure LED 2 red 2 Hz LED 1 red 2 Hz: overheat. LED 1 light blue 2 Hz: Temperature underheat No data connection LED 1 white 2 Hz Initializing AES67/locking to...
Page 60 FreeSpeak II for Eclipse | User Guide Clear-Com recommends that you clean the internal filters every 1 to 2 months, and that you clean the external filter every 18 to 24 months. For a list of spare parts, including the fans and filters, see Spare parts on page 78 To change the IPT fans and filters, see the diagrams below.
Page 61: Reset The Ipt To Default
FreeSpeak II for Eclipse | User Guide Reset the IPT to default To reset the IP Transceiver to default: 1. Press and hold the Mode button for at least 12 seconds. This will reset the IP Transceiver to DHCP mode, and remove any stored diagnostics. Page 61...
Page 62: Transceiver Standalone Mode
FreeSpeak II for Eclipse | User Guide The Admin and the audio (AES67) IP addresses are reset to DHCP. Reset can take up to 5 minutes. Transceiver standalone mode You can use the standalone mode to connect the IPT to two beltpacks with full duplex audio. This is useful for performing an initial site survey when the IPT has no matrix connection.
Page 63 LAN/VLAN. This may lead to a broadcast storm and could seriously degrade the performance of your network. Clear-Com matrices can contain more than one E-IPA card. However, only one E-IPA-HX card in a matrix can connect to FreeSpeak II beltpacks.
Page 64 FreeSpeak II for Eclipse | User Guide The IPT transceivers have a higher than average requirement for network timing accuracy. For this reason it is advisable to use different VLANs to route Admin/IVC traffic and AES67 IPT traffic. Rules: If you are using more than one connector on your E-IPA card for Admin/IVC and AES67 then they must connect to different switches or VLANs.
Page 65 FreeSpeak II for Eclipse | User Guide 6.7.1 Network setup for the IPT Bear in mind the following network considerations. For more information, refer to the Clear-Com network recommendations document. AES67 connections to the IP transceiver can be put on ports 1-6 (RJ45 or Fiber). Default: LAN 3.
Page 66 FreeSpeak II for Eclipse | User Guide When configuring an AES67 network, the network switch needs to have DiffServ Quality of Service (QoS) switched on. Internet Group Management Protocol (IGMP) snooping needs to be switched on, with at least one IGMP querier. The network must be 1Gbps.
Page 67: Cabling The Ip Transceivers
FreeSpeak II for Eclipse | User Guide Cabling the IP transceivers Run standard Ethernet cable from one of the LAN connectors on the back of the E-IPA-HX card to either LAN 1 or LAN 2 on the IP Transceiver via an IP switch. Configuring the E-IPA-HX card for FreeSpeak II Note: For more information about using the EHX configuration software to setup and configure the IP...
Page 68: Adding Transceivers
FreeSpeak II for Eclipse | User Guide 3. Click Add to add the ports, and then Close to exit the screen. Note: The ports that are allocated to beltpacks can be thought of as a pool of ports that can be used by any FreeSpeak beltpack.
Page 69 FreeSpeak II for Eclipse | User Guide 6.10.2 Online configuration Use Detect IP TCVR to find the IPTs on the network (the AES67 interface of the E-IPA-HX card and the IPTs must be on the same network, and the EHX software must be on the same network as the IPA Admin port).
Page 70 FreeSpeak II for Eclipse | User Guide From the AoIP Devices screen, use the up and down arrows to add or remove matrices from your current configuration. Apply Map to Matrix when you are done. The color of the detected transceiver indicates: Page 70...
Page 71 FreeSpeak II for Eclipse | User Guide Blue: Transceiver is available. Amber: Transceiver is configured, but not connected to the matrix. A download is required. Green: Transceiver is connected to the matrix. Gray: Transceiver is connected to another matrix, but it is not online. Purple: Transceiver is already connected to another matrix.
Page 72 FreeSpeak II for Eclipse | User Guide 4. Click Close. 5. Navigate to Hardware > Transceivers. 6. Click the cog icon for the required transceiver. The Transceiver Properties screen appears. 7. Select Edit, and then deselect DHCP Enabled for both AES67 Admin and AES67 Audio. Note: You cannot mix DHCP and static IP addressing on the IPT.
Page 73: Powering The Transceiver
FreeSpeak II for Eclipse | User Guide Note: The IP Transceiver must be connected. 8. Enter the required static IP addresses for AES67 Admin and AES67 Audio. Note: You cannot set static IP addresses that are within the Link Local range (169.254.0.0 to 169.254.255.255) 9.
Page 74: Upgrading The Fs Ii Ip Transceiver Firmware
FreeSpeak II for Eclipse | User Guide If the IPT is using a local power supply, adding a PoE connection causes no power interruption. If the IPT is using a PoE connection, adding a local power supply interrupts the power supply for 1 to 2 seconds.
Page 75: Upgrading By Usb Connection
FreeSpeak II for Eclipse | User Guide 3. Select the Wireless radio button. 4. Select Next, and then browse to the upgrade file (.tar.gz) and select Open. The upgrade file is loaded to the transceiver, and the transceiver restarts. You can track the status of the download in the EHX Event Log. 6.14 Upgrading by USB connection Place the *tar.gz upgrade image onto a USB stick in a folder named firmware_upgrade located...
Page 76: General Network And Switching Rules
Up to 10 IPTs Up to three layer-2 hops between the PTP Small DiffServ QoS master and IPTs Clear-Com AES67 traffic only 10 to 30 IPTs DiffServ QoS Up to three layer-2 hops between PTP master Medium IGMP Snooping...
Page 77: Coverage Areas Under Various Conditions
FreeSpeak II for Eclipse | User Guide that area. If it is between 10 and 20 users, place two transceiver next to each other, both with a direct connection to the FS II Matrix. If an extra beltpack user goes into a coverage zone with only one transceiver, and that user is out of range from another transceiver, it will lose connection with the system.
Page 78: Spare Parts
FreeSpeak II for Eclipse | User Guide When overlapping the coverage zones of transceivers to create larger continuous coverage areas, test the in-between areas with a beltpack for potential areas of low RF signal; adjust the positioning of the transceivers as needed. Because of potential body shielding during movement, it is useful to place two transceivers in different locations within larger working areas to minimize low-level signals and potential signal dropouts.
Page 79: Operating The Fs Ii Transceiver
FreeSpeak II for Eclipse | User Guide Operating the FS II Transceiver This chapter describes the FS II Transceiver that connects to an E-Que card in the matrix. For information about the FreeSpeak II IP Transceiver, see Operating the FS II IP Transceiver (IPT) on page The FS II transceivers form the transmission link between the FS II beltpacks and the matrix.
Page 80: Cabling The Fs Ii Transceivers
FreeSpeak II for Eclipse | User Guide Key to transceivers Feature Description USB connector. Used to upgrade the firmware in the FS II-TA. Matrix connector. This RJ-45/etherCON connector is used to connect the bi- directional signal from the matrix, directly or via the splitter. Up to 800 metres (2625 feet) of 4-pair 24AWG shielded Ethernet cable (CAT5/5e/6) can be used for this connection between matrix and transceiver.
Page 81 FreeSpeak II for Eclipse | User Guide Note: A matrix system can support up to four E-Que-HX cards (six for an Omega matrix). This makes the maximum number of transceivers per system up to 40. To select a transceiver connection mode, you will need to set the card type in the EHX software, in Cards and Ports, before connecting the devices.
Page 82 FreeSpeak II for Eclipse | User Guide 7.3.1 Transceiver Mode Page 82...
Page 83 FreeSpeak II for Eclipse | User Guide 7.3.2 Splitter mode 7.3.3 Connect matrix to splitter or transceivers Once you have set the card type in EHX, run standard Ethernet cable (Cat 5e/6) from the RJ45 connectors on the back of the E-Que card to the ports labeled Matrix on the splitter or transceiver.
Page 84 FreeSpeak II for Eclipse | User Guide 7.3.4 Connect splitters to transceiver Run standard Ethernet cable from one of the RJ45 connectors on the splitter to the RJ45 connector labelled Base/Matrix on the transceiver. 7.3.5 Cable lengths, matrix to splitters and transceivers Page 84...
Page 85: Beltpack Support Capacities For Fs Ii Transceivers
For more information on the coverage range of the FS II-TA, see 3.5 Determining coverage areas on page Note: For most working systems, Clear-Com recommends a ratio of 2-4 users per transceiver due to system losses. Placing the transceivers and splitters Note: You can only use the FS II splitter with FS II transceivers that connect to an E-Que card.
Page 86 FreeSpeak II for Eclipse | User Guide More information on checking coverage areas is given later in this chapter, in sections: Determining coverage areas on page 87 Determining coverage areas on page 87 Doing a site survey to determine coverage areas on page 89 Doing a site survey to determine coverage areas on page 89 Consider the following: What areas will have more than five active beltpack users in them at any time? Co-locate...
Page 87: Determining Coverage Areas
Cells can be completely overlapped for density (by co-locating multiple transceivers). Cells can be overlapped at boundaries (increases radio coverage). For most working systems Clear-Com uses a ratio of 3-4 (1.9GHz) or 2-3 (2.4GHz) users per transceiver. This is to allow seamless roaming in all scenarios.
Page 88: Coverage Areas Under Various Conditions
FreeSpeak II for Eclipse | User Guide Alternatively, use the Site Survey mode on the beltpack (see Doing a site survey to determine coverage areas on page 89 below). It is often best to begin with one transceiver in place, and then place additional units to enhance coverage. Walk through all of the areas where beltpack users will typically be moving, and note any areas of weak signal, dropout, or disconnection from the system.
Page 89: Doing A Site Survey To Determine Coverage Areas
FreeSpeak II for Eclipse | User Guide Because of potential body shielding during movement, it is useful to place two transceivers in different locations within larger working areas to minimize low-level signals and potential signal dropouts. Going between a larger area and a corridor via a door, especially a heavy or shielded one, or where the walls are thick, place a second transceiver in the corridor near the doorway to assure continuous coverage.
Page 90 FreeSpeak II for Eclipse | User Guide Parameter Meaning Received Signal Strength A measure of the signal strength in a wireless environment. The Indication (RSSI) higher the value, the stronger the signal. A measure of the signal connection quality. The lower the FER, Frame Error Rate (FER) the better the signal connection.
Page 91 FreeSpeak II for Eclipse | User Guide 5. Draw a map of the coverage zone for the transceiver. The coverage zone is the area where the signal strength, as a rule-of-thumb, is 30 or above and the Line Quality is 3-5. 6.
Page 92 FreeSpeak II for Eclipse | User Guide 7.9.2 Testing transceiver handoff After testing the coverage areas for individual transceivers, test the handoff between the transceivers. When you walk through a coverage area with the beltpack, the beltpack searches to find the transceiver with the best signal strength, and switches transmission to that transceiver.
Page 93 FreeSpeak II for Eclipse | User Guide 1. Make sure you have to hand: A beltpack A transceiver A power connector for the transceiver Access to a power socket. 2. Connect the power to the transceiver and at the same time press the black mode button on the base of the transceiver.
Page 94: Registering Beltpacks
FreeSpeak II for Eclipse | User Guide 7.10 Registering beltpacks Before you can use a beltpack, you must first register it with the FreeSpeak II system. The beltpacks can be registered to an Eclipse matrix (Omega, Median or Delta) using Eclipse HX software (EHX).
Page 95: Upgrading By Wireless Connection
FreeSpeak II for Eclipse | User Guide Note: You can connect more than one transceiver to the computer if you have multiple USB ports. The units will be upgraded sequentially. 7.13 Upgrading by wireless connection 1. Right-click on the Frame in the Layout window, and then select Firmware > Update Firmware.
Page 96: Using The Freespeak Ii For Eclipse Splitter (Fsii-Spl)
FreeSpeak II for Eclipse | User Guide Using the FreeSpeak II for Eclipse splitter (FSII-SPL) The FreeSpeak II for Eclipse transceiver splitter is a device that connects up to five transceivers to a FreeSpeak Base (both FreeSpeak I and FreeSpeak II, 1.9 and 2.4 systems) or an Eclipse matrix.
Page 97: Configuration Using A Splitter With Fiber Connection
FreeSpeak II for Eclipse | User Guide Configuration using a splitter with fiber connection The transceiver connections are switched between RJ45 and Fiber routing using dip switches set inside the splitter. Page 97...
Page 98: Splitter (Fsii-Spl) Rear Connectors
FreeSpeak II for Eclipse | User Guide Note: When using Fiber, you must install Fiber modules. See link below. Note: When using the splitter with third party routing devices, transceiver synchronisation data is not passed. In this case, you need to set the splitter to 'local synch' mode. This is done by setting the splitter dip-switch no.
Page 99: Splitter (Fsii-Spl) Front Panel
FreeSpeak II for Eclipse | User Guide Splitter (FSII-SPL) front panel See also: Splitter (FSII-SPL) rear connectors on page 98 Using the FreeSpeak II for Eclipse splitter (FSII-SPL) on page 96 Using a transceiver with a fiber connection You may wish to connect a FreeSpeak II for Eclipse to a splitter (FSII-SPL) using Fiber. In this case, you need to install Fiber modules to the Base and the splitter.
Page 100 FreeSpeak II for Eclipse | User Guide 8.5.1 Install Fiber modules (parts # HLI-SMFO, HLI-MMFO) Install Base Station Fiber module. Install splitter Fiber module. Page 100...
Page 101: Splitter Software Version (Fsii-Spl)
FreeSpeak II for Eclipse | User Guide Once the modules are installed, the Base Station and the splitter can be cabled with the correct Fiber cable (single mode or multi-mode depending on existing cabling). You will see the Base Connection indicator on the front of the splitter change from RJ45 to Fiber. You must also set the transceiver port to Fiber in the Core Configuration Manager.
Page 102 FreeSpeak II for Eclipse | User Guide 3. Allow windows to install a USB com port driver (this should be automatic). 4. Using a serial console emulator (such as Tera Term), input serial console settings. 5. Open the serial console. Press the space bar and the splitter will output its software version as shown.
Page 103 FreeSpeak II for Eclipse | User Guide Page 103...
Page 104: Specifications
Up to 7 including Reply Key and two PTT keys. Only four Duplex Audio Paths with individual level control. Level/Talk Controls 2 top-mounted rotary encoders Headset Connector XLR-4M, Clear-Com standard Headphone Impedance ≥32 ohm Microphone Type Dynamic or electret, selectable in beltpack menu Input Level...
Page 105: Freespeak Ip Transceiver
FreeSpeak II for Eclipse | User Guide FreeSpeak IP Transceiver Specification Value Beltpacks supported per transceiver 10 in one cellular zone Transceiver transmission range Up to 500 m (1475 ft.), line of sight Local powering 12VDC power supply or 5V (USB) or 48V PoE SFP module 1GB (1000Base), <250mA maximum current draw Connection to matrix...
Page 106: Freespeak Ii Transceiver Splitter
Notice about specifications While Clear-Com makes every attempt to maintain the accuracy of the information contained in its product manuals, that information is subject to change without notice. Performance specifications included in this manual are design-center specifications and are included for customer guidance and to facilitate system installation.
Page 107: Regulatory Compliance
Changes or modifications not expressly approved by Clear-Com, LLC, an HM Electronics, Inc. company could void the user’s authority to operate this equipment.
Page 108: Japan Dect For Freespeakii Ip Transceiver
FreeSpeak II for Eclipse | User Guide - The beltpack has been tested to comply with FCC/IC/EC RF Exposure requirements in body- worn position. Use of third party clips or holsters with the beltpack may not ensure compliance with FCC/IC/EC RF exposure requirements and should be avoided. - To comply with FCC/IC/EC RF exposure requirements, the Antenna/Transceiver unit must be installed and operated at least 20 cm (8 inches) from any person.
Page 109: Kcc 2.4Ghz Warning
FreeSpeak II for Eclipse | User Guide 적으로 합니다. 10.6 KCC 2.4Ghz warning 해당 무선설비는 전파혼신 가능성이 있으므로 인명안전과 관련된 서비스는 할 수 없음 10.7 European Union (CE mark) The CE marking indicates compliance with the following directives and standards, whenever applicable to the product in question.
Page 110 FreeSpeak II for Eclipse | User Guide Warning: This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. 10.9 Taiwan Statements Taiwan NCC statement: 經型...
Page 111 (manufacturers, distributors and/or retailers) to take-back electronic products at the end of their useful life. The WEEE Directive covers most Clear-Com products being sold into the EU as of August 13, 2005. Manufacturers, distributors and retailers are obliged to finance the costs of recovery from municipal collection points, reuse, and recycling of specified percentages per the WEEE requirements.
