Listen Key

Listen keys are programmed to allow the panels to monitor audio coming into
the matrix from the interfaces / external ports
Each configured Listen button (yellow) will be dim to indicate it has a
programmed label. When selected it will become bright YELLOW to indicate it
is active.
Choose destination to monitor and select the key assigned to that
destination.
Push the correct key momentary to latch or push and hold for non
latching key acton.
You will hear all audio traffic from the destination port that is entering
the matrix on your loudspeaker automatically.
The listen key LED will lit bright YELLOW showing the key is active.
Release the key to stop monitoring.
A flashing DIM yellow key indicates that there is audio traffic on the
port (interface / externals only).
Press the Listen key to monitor the audio traffic on the port.
The listen key LED will lit bright YELLOW showing the key is active.
Release the key to stop monitoring.

EASI-PICO MATRIX GENERAL INFORMATION

1 AC mains Power
The Easi-PiCo matrix has two IEC mains AC power connectors that provide
separate fused power inputs for the redundant power supplies. If you connect
each AC input to a different mains AC branch, one power supply will con-
tinue to operate if the other supply's main AC branch fails.

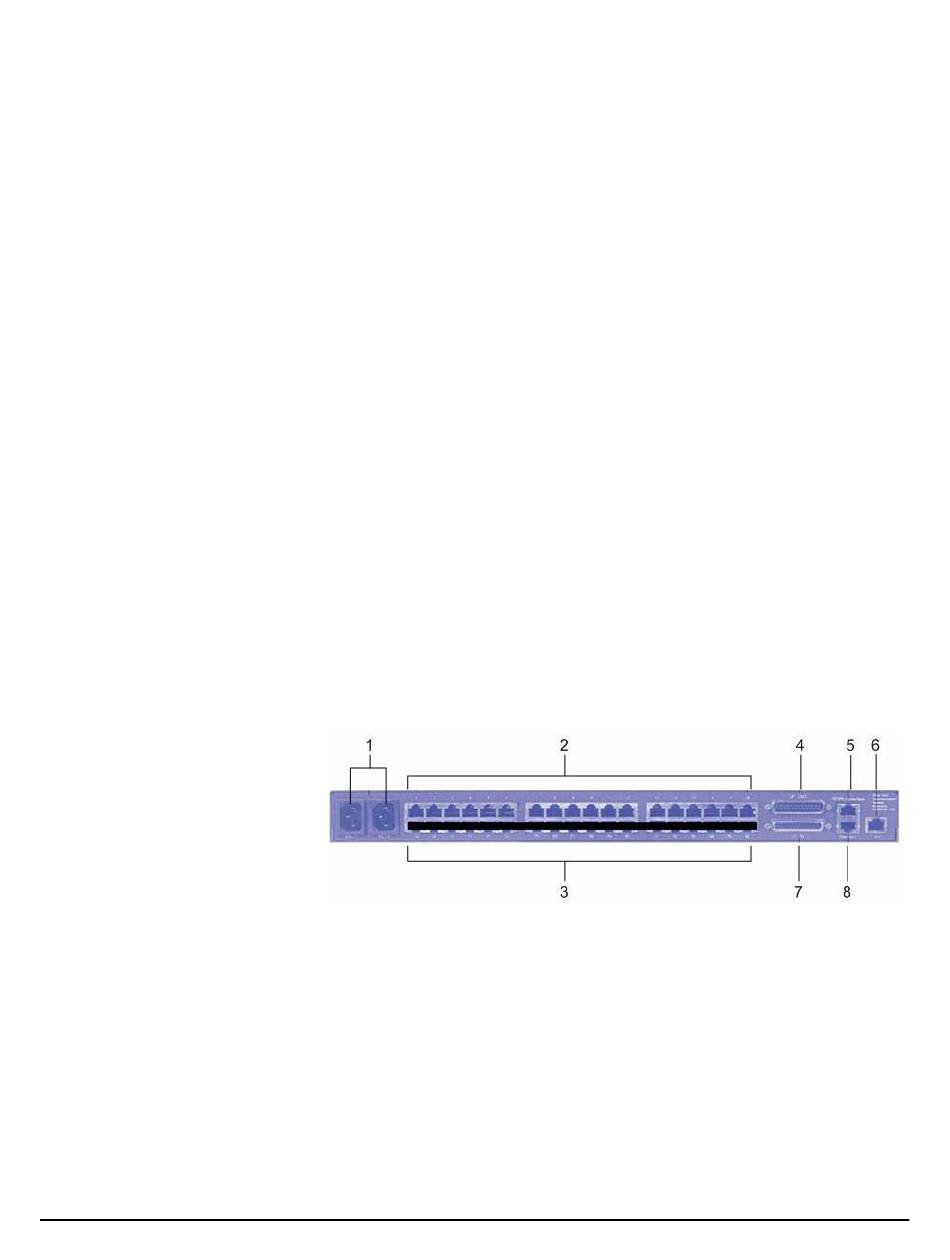

Figure 1-21: Easi-PiCo Rear View
