SELECT MAP FROM EASI-PICO FRONT USER MENU

Use the Easi-PiCo front user menu to select one of the four pre-configured maps.
The setup knob is used to navigate through the following
screens by rotating the knob left and right to move the
highlighted sections on the screen.
Once the section is highlighted it can be selected by
pressing the button in.

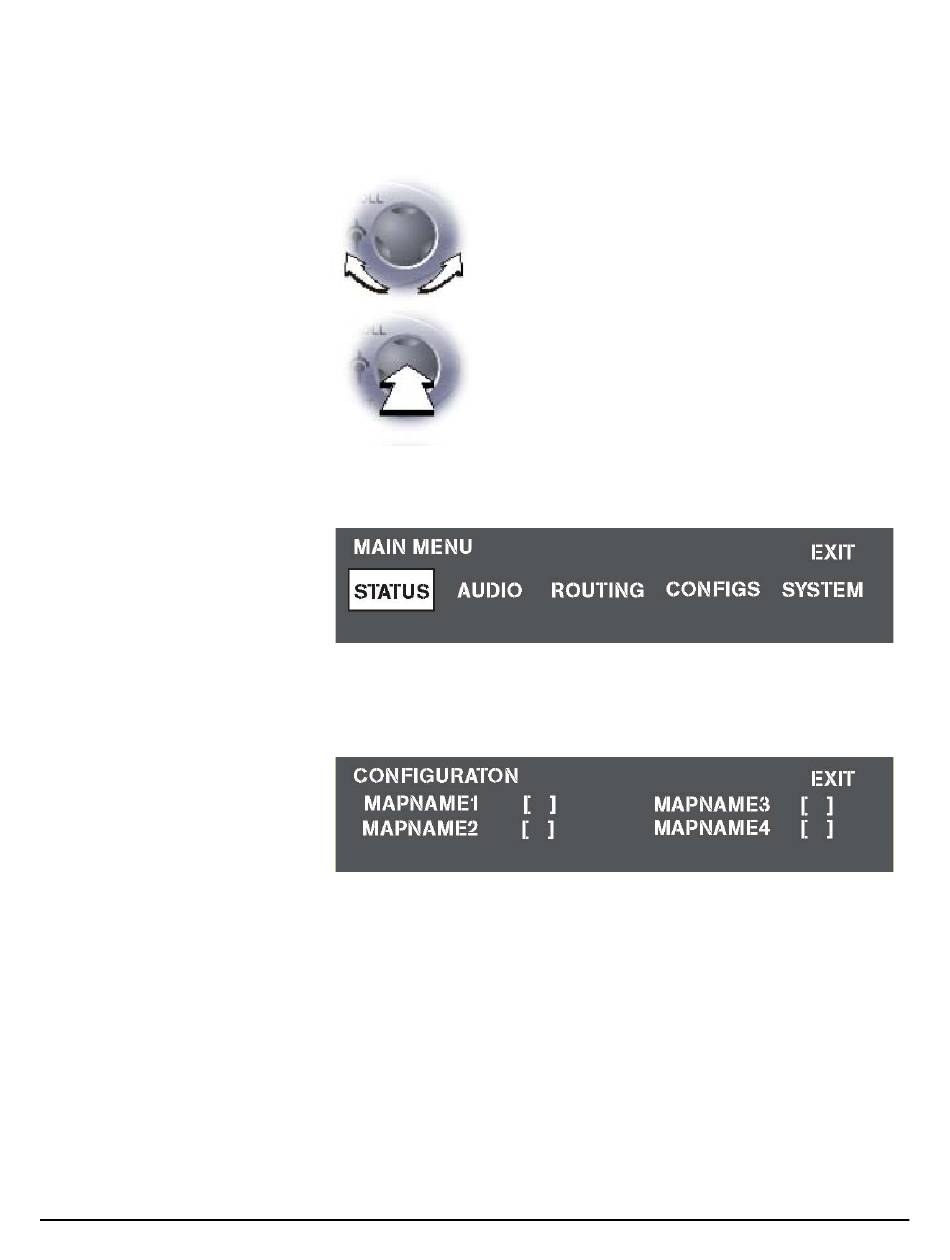

Figure 1-18: Selecting a Map from the Easi-PiCo Front Panel
Figure 1-20: Easi-PiCo Map Selection

Configuration

Easi-PiCo has four pre-configured maps in its onboard memory. A
"configuration" is a complete set of operating parameters for the matrix system
which includes all talk and listen paths for each connected interface, belt pack or
panel.
You can select and activate any of these maps directly from the Easi-PiCo. First,
you select the configuration map to apply. Then when you reset the system, the
selected configuration map goes into effect immediately.
To select a configuration map:
Figure 1-19: Easi-PiCo Main Menu
