3. Push the appropriate Talk/Listen button programmed as a listen. The selected
button will turn bright yellow and A and B keys will turn dim yellow.
4. Use the A and B keys to increase (up arrows) or decrease (down arrows) the
channels volume of the selected button.
5. To exit, push the "Listen/Call" button or wait for the 3 sec. time-out.
Listen Level Reset
To reset the listen level:
1. Push (for less than 1 sec.) and quickly release the "Listen/Call" button to
activate the listen-level mode. The "Listen/Call" button will turn bright yellow
and the active configured buttons listen will flash.
2. Push and hold the "Listen/Call" button for 3 sec. to reset the listen level
settings to the default. The active configured buttons will return to their
previous states.
3. Release the "Listen/Call" button.
Call Signals
To activate call signals:
1. Push and hold the "Listen/Call" button until it is bright yellow (at least 1 sec).
2. Push the talk/listen button programmed with a talk or talk with listen of the
desired destination's label. The call signal will be sent each time the
destination's talk/listen button is pressed.
3. The call-signal mode will time-out after 5 sec. of button inactivity or can be
deactivated by pressing the "Listen/Call" button.
Call signals can be issued to all destinations. All labels will receive the signal. If a
label is a fixed group, the entire group will receive the call signal. If the label is a
party line, then every station listening on the party line will receive the call signal.

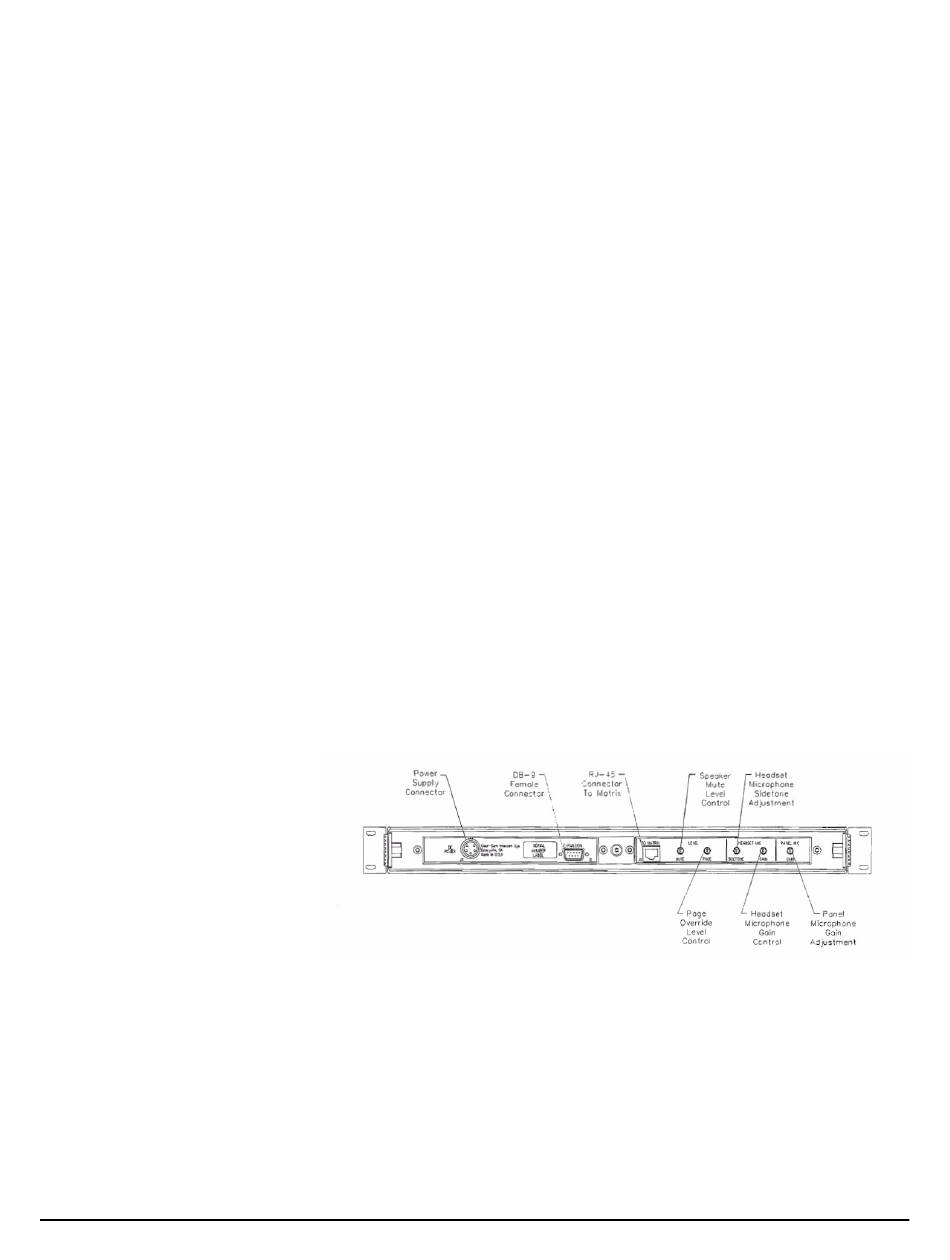

Figure 1-35: Rear of ICS-1008E and 1016E Panels
Power supply connector
3pin EIA power connector, 100-250 VAC 50 to 60 Hz 50VA max.
DB-9 Female connector
Allow the panel to connect to an expansion panel (this feature is only active after
upgrade to Eclipse PiCo).
