E a s i - P i c o U s e r G u i d e

MATRIX TO EXTERNAL 4-WIRE DEVICES

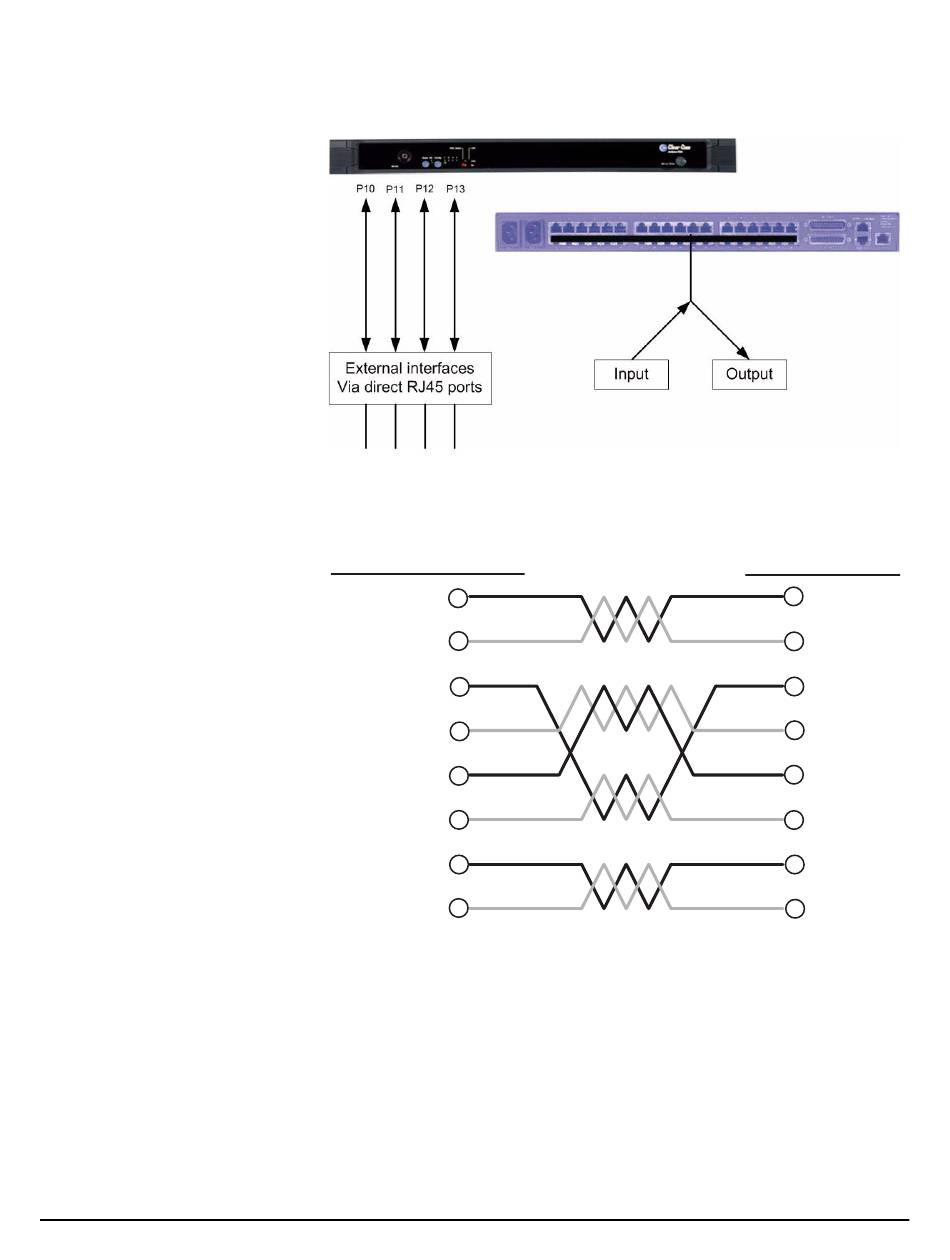

Figure 1-16: Easi-PiCo to External 4-Wire Devices
Matrix Frame RJ-45 Pin Numbers
RS-422 Input +
1
(into Matrix)
RS-422 Input –
2
(into Matrix)
Audio Input +
3
(into Matrix)
Audio Output +
4
(from Matrix)
Audio Output –
5
(from Matrix)
Audio Input – 6
(into Matrix)
7
RS-422 Output +
(from Matrix)
RS-422 Output –
8
(from Matrix)
Pair 1 Audio output from Matrix to panel
Pair 2 RS-422 data input from panel to Matrix
Pair 3 Audio input from panel to Matrix
Pair 4 RS-422 data output from Matrix to panel
Figure 1-17: Connecting Easi-PiCo to 4-Wire Devices
Panel RJ-45 Pin Numbers
Pair 2
Pair 1
Pair 3
Pair 4
1
RS-422 Output +
(from panel)
2 RS-422 Output –
(from panel)
Audio Output +
3
(from panel)
Audio Input +
4
(into panel)
Audio Input –
5
(into panel)
6 Audio Output –
(from panel)
RS-422 Input +
7
(into panel)
RS-422 Input –
8
(into panel)
