IFB Configuration

The IFB configuration map is designed around a TV studio set-up with four IFB
(Interrupted Fold back) channels, one party line channel, one 4 wire interface
and a camera group which allows single or full group communications. This
configuration can support up to six panels.

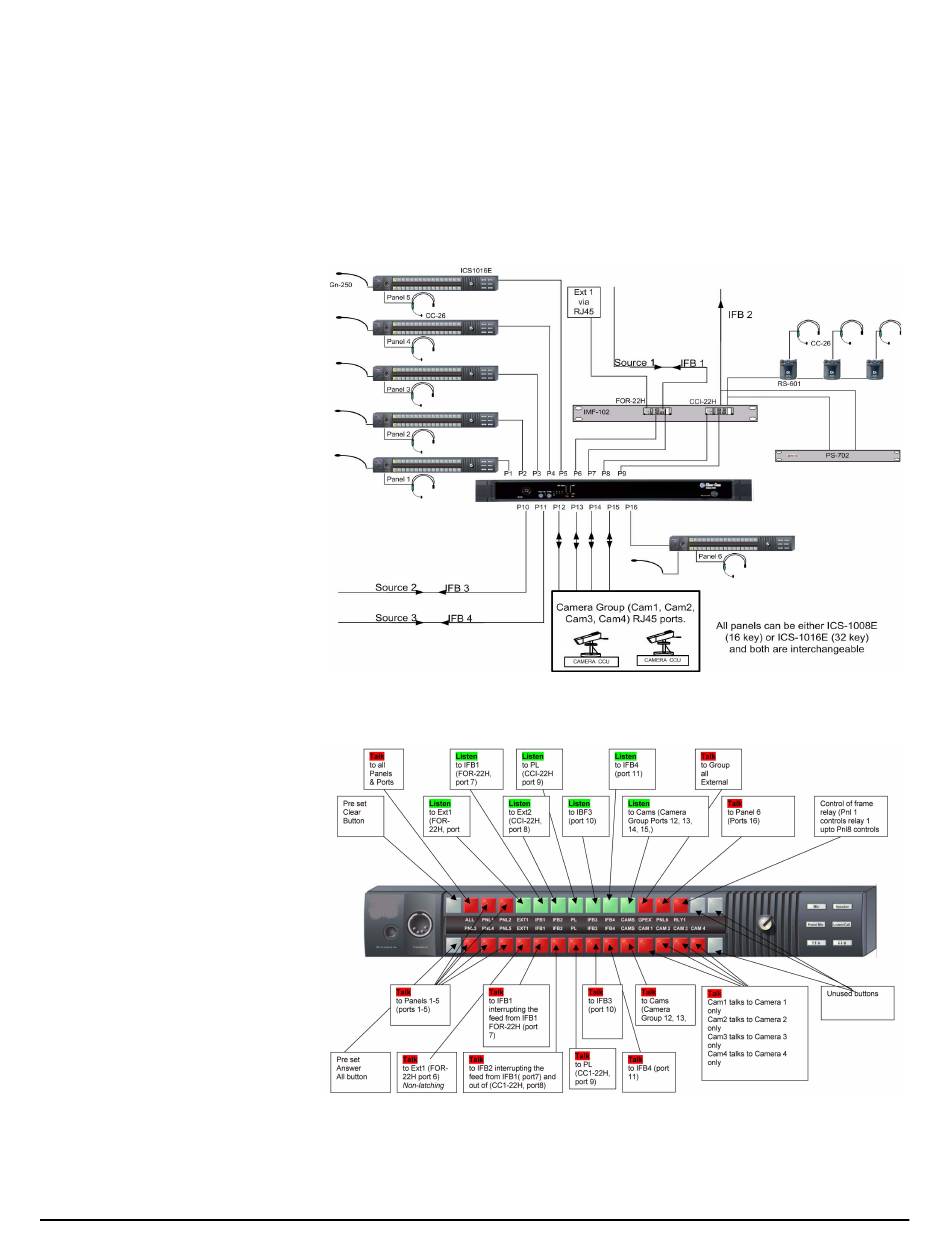

Figure 2-52: IFB Configuration
Figure 2-53: ICS-1016E for IFB Configuration
