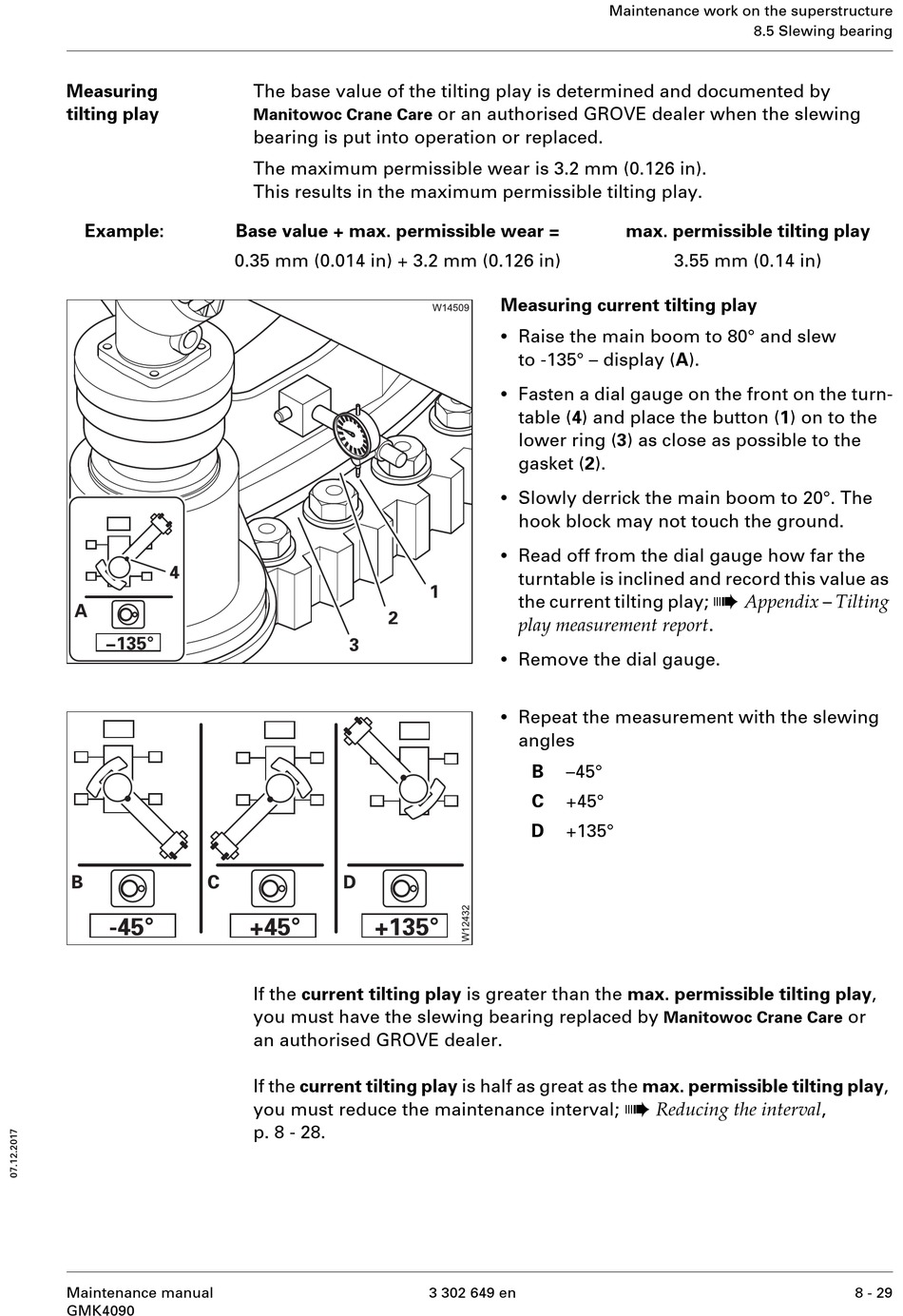

Measuring
tilting play
Example:
Base value + max. permissible wear =
0.35 mm (0.014 in) + 3.2 mm (0.126 in)
Maintenance manual
GMK4090
The base value of the tilting play is determined and documented by
Manitowoc Crane Care
bearing is put into operation or replaced.
The maximum permissible wear is 3.2 mm (0.126 in).
This results in the maximum permissible tilting play.
If the current tilting play is greater than the max. permissible tilting play,
you must have the slewing bearing replaced by
an authorised GROVE dealer.
If the current tilting play is half as great as the max. permissible tilting play,
you must reduce the maintenance interval;
p. 8 - 28.
or an authorised GROVE dealer when the slewing
Measuring current tilting play
Raise the main boom to 80° and slew
to -135° – display (A).
Fasten a dial gauge on the front on the turn-
table (4) and place the button (1) on to the
lower ring (3) as close as possible to the
gasket (2).
Slowly derrick the main boom to 20°. The
hook block may not touch the ground.
Read off from the dial gauge how far the
turntable is inclined and record this value as
the current tilting play;
play measurement report .
Remove the dial gauge.
Repeat the measurement with the slewing
angles
B
–45°
C
+45°
D
+135°
3 302 649 en
Maintenance work on the superstructure
8.5 Slewing bearing
max. permissible tilting play
3.55 mm (0.14 in)
à
Appendix – Tilting
Manitowoc Crane Care
à
Reducing the interval ,
or
8 - 29
