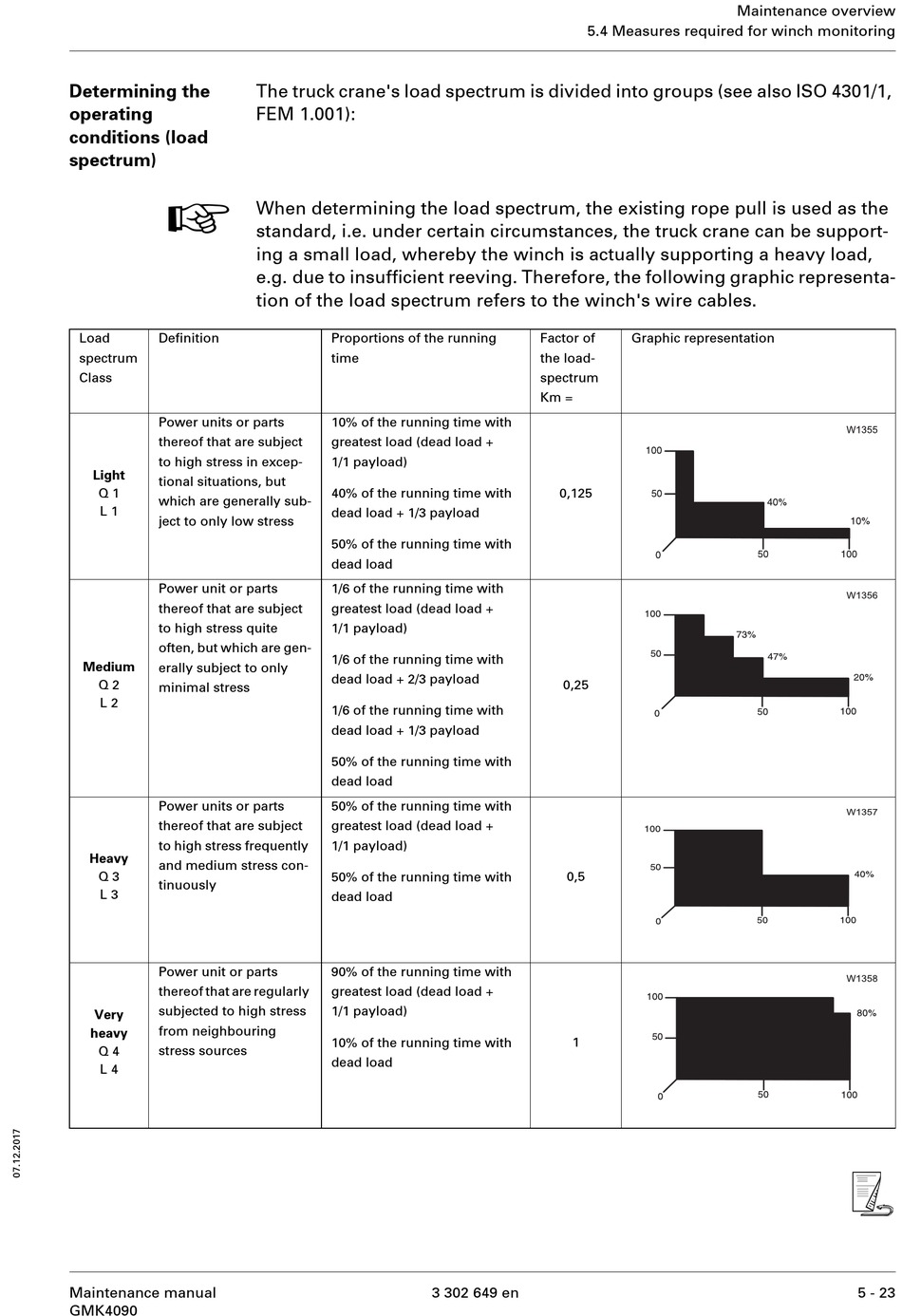

The truck crane's load spectrum is divided into groups (see also ISO 4301/1,
FEM 1.001):
When determining the load spectrum, the existing rope pull is used as the
standard, i.e. under certain circumstances, the truck crane can be support-
ing a small load, whereby the winch is actually supporting a heavy load,
e.g. due to insufficient reeving. Therefore, the following graphic representa-
tion of the load spectrum refers to the winch's wire cables.
Proportions of the running
time
10% of the running time with
greatest load (dead load +
1/1 payload)
40% of the running time with
dead load + 1/3 payload
50% of the running time with
dead load
1/6 of the running time with
greatest load (dead load +
1/1 payload)
1/6 of the running time with
dead load + 2/3 payload
1/6 of the running time with
dead load + 1/3 payload
50% of the running time with
dead load
50% of the running time with
greatest load (dead load +
1/1 payload)
50% of the running time with
dead load
90% of the running time with
greatest load (dead load +
1/1 payload)
10% of the running time with
dead load
5.4 Measures required for winch monitoring
Factor of
the load-
spectrum
Km =
0,125
0,25
0,5
1
