8.4.4
Oil, spare parts,
tools
Prerequisites
Changing the oil
O
Maintenance manual
GMK4090

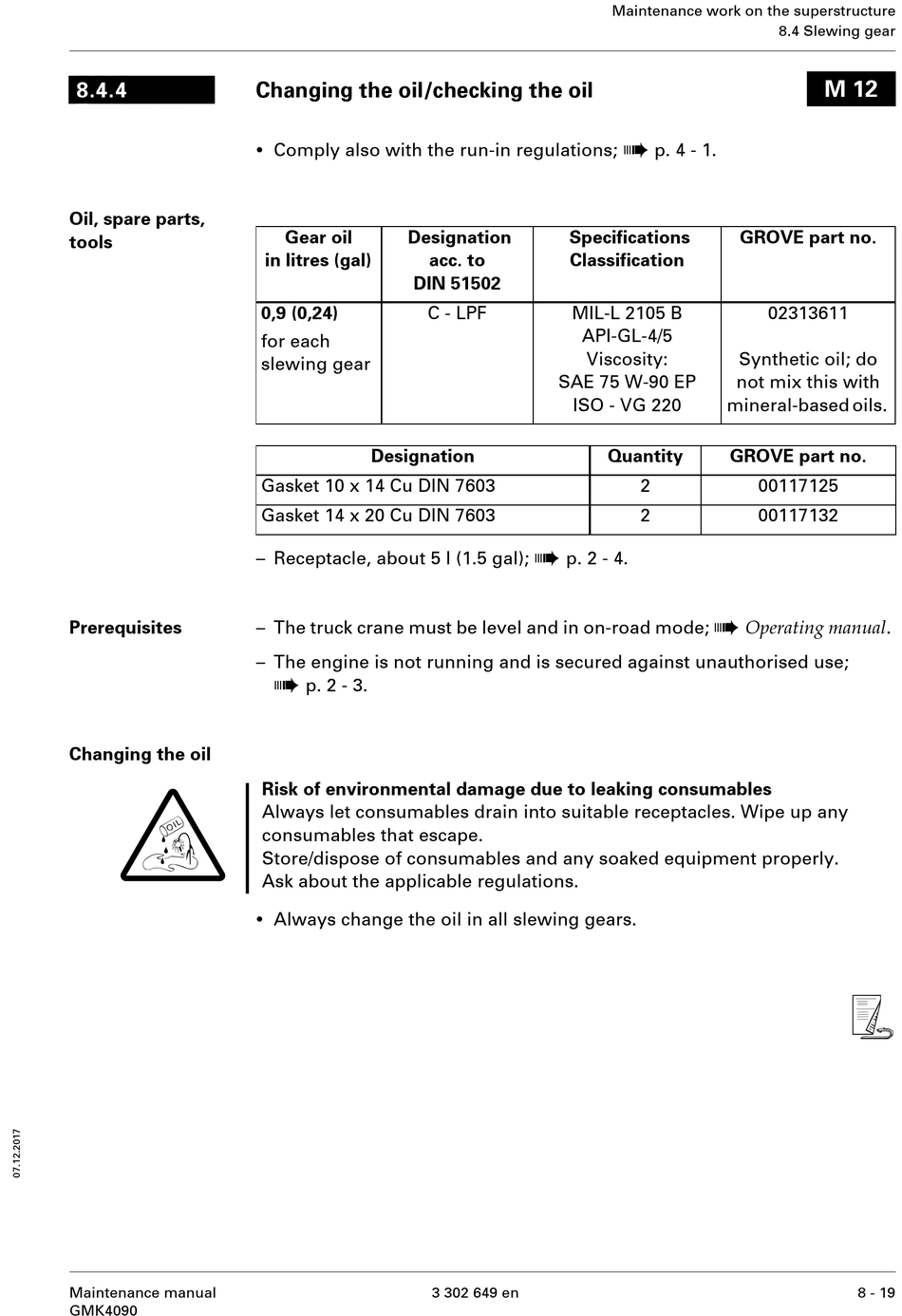

Changing the oil/checking the oil
•
Comply also with the run-in regulations;
Gear oil Designation
in litres (gal)
DIN 51502
0,9 (0,24)
for each
slewing gear
Designation
Gasket 10 x 14 Cu DIN 7603
Gasket 14 x 20 Cu DIN 7603
– Receptacle, about 5 l (1.5 gal);
– The truck crane must be level and in on-road mode;
– The engine is not running and is secured against unauthorised use;
à
p. 2 - 3.
Risk of environmental damage due to leaking consumables
Always let consumables drain into suitable receptacles. Wipe up any
consumables that escape.
Store/dispose of consumables and any soaked equipment properly.
Ask about the applicable regulations.
•
Always change the oil in all slewing gears.
Specifications
acc. to Classification
C - LPF MIL-L 2105 B
API-GL-4/5
Viscosity:
SAE 75 W-90 EP
ISO - VG 220
à
p. 2 - 4.
3 302 649 en
Maintenance work on the superstructure
à
p. 4 - 1.
GROVE part no.
02313611
Synthetic oil; do
not mix this with
mineral-based oils.
Quantity GROVE part no.
2 00117125
2 00117132
à
Operating manual .
8.4 Slewing gear
M 12
s
8 - 19
