Checking The Tyre Pressure - Manitowoc GROVE GMK4090 Maintenance Manual

Maintenance work on the carrier
7.10 Wheels
7.10.2
S
7 - 68

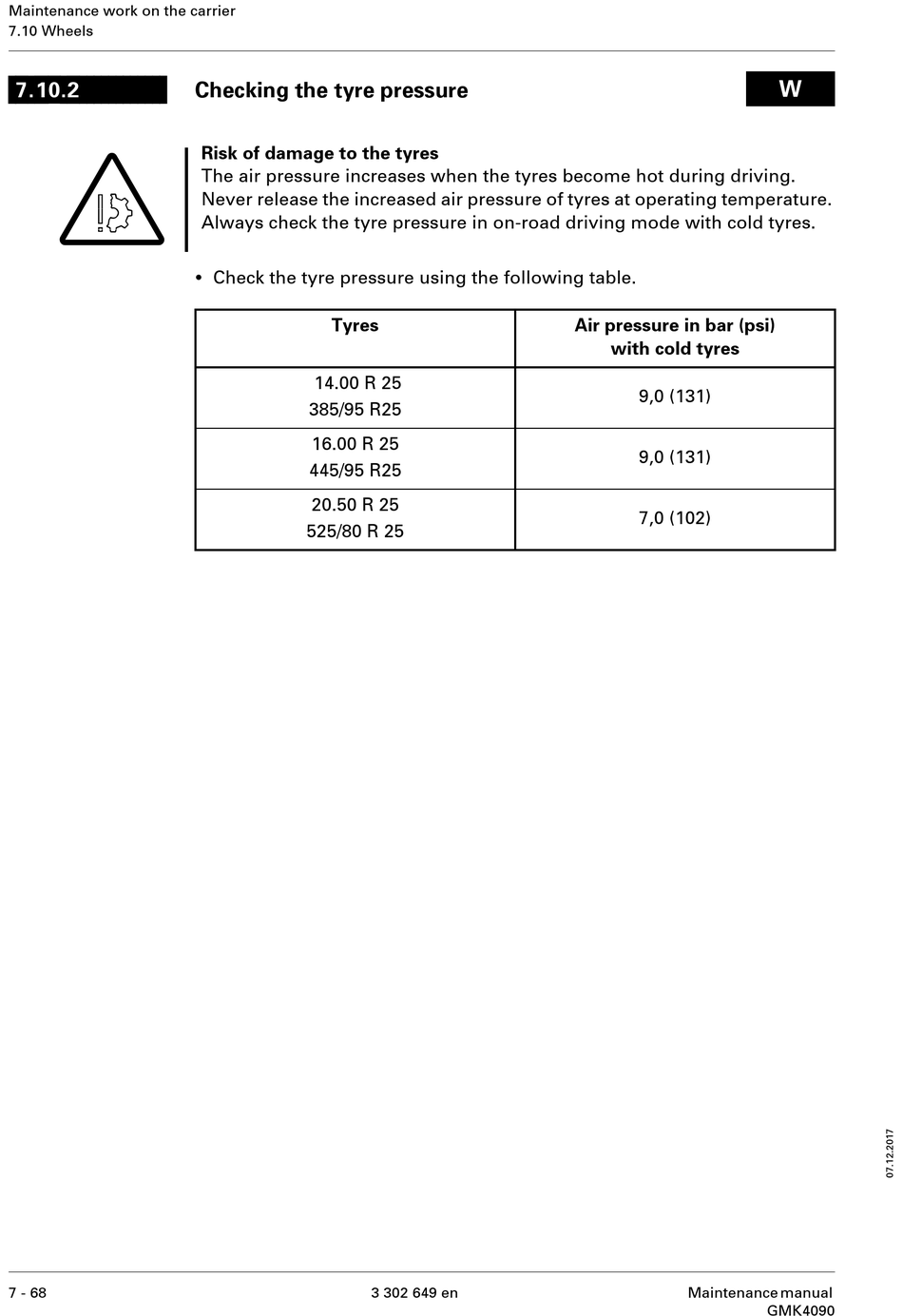

Checking the tyre pressure

Risk of damage to the tyres
The air pressure increases when the tyres become hot during driving.
Never release the increased air pressure of tyres at operating temperature.
Always check the tyre pressure in on-road driving mode with cold tyres.
•
Check the tyre pressure using the following table.
Tyres
14.00 R 25
385/95 R25
16.00 R 25
445/95 R25
20.50 R 25
525/80 R 25
3 302 649 en
Air pressure in bar (psi)
with cold tyres
9,0 (131)
9,0 (131)
7,0 (102)
Maintenance manual
W
GMK4090
