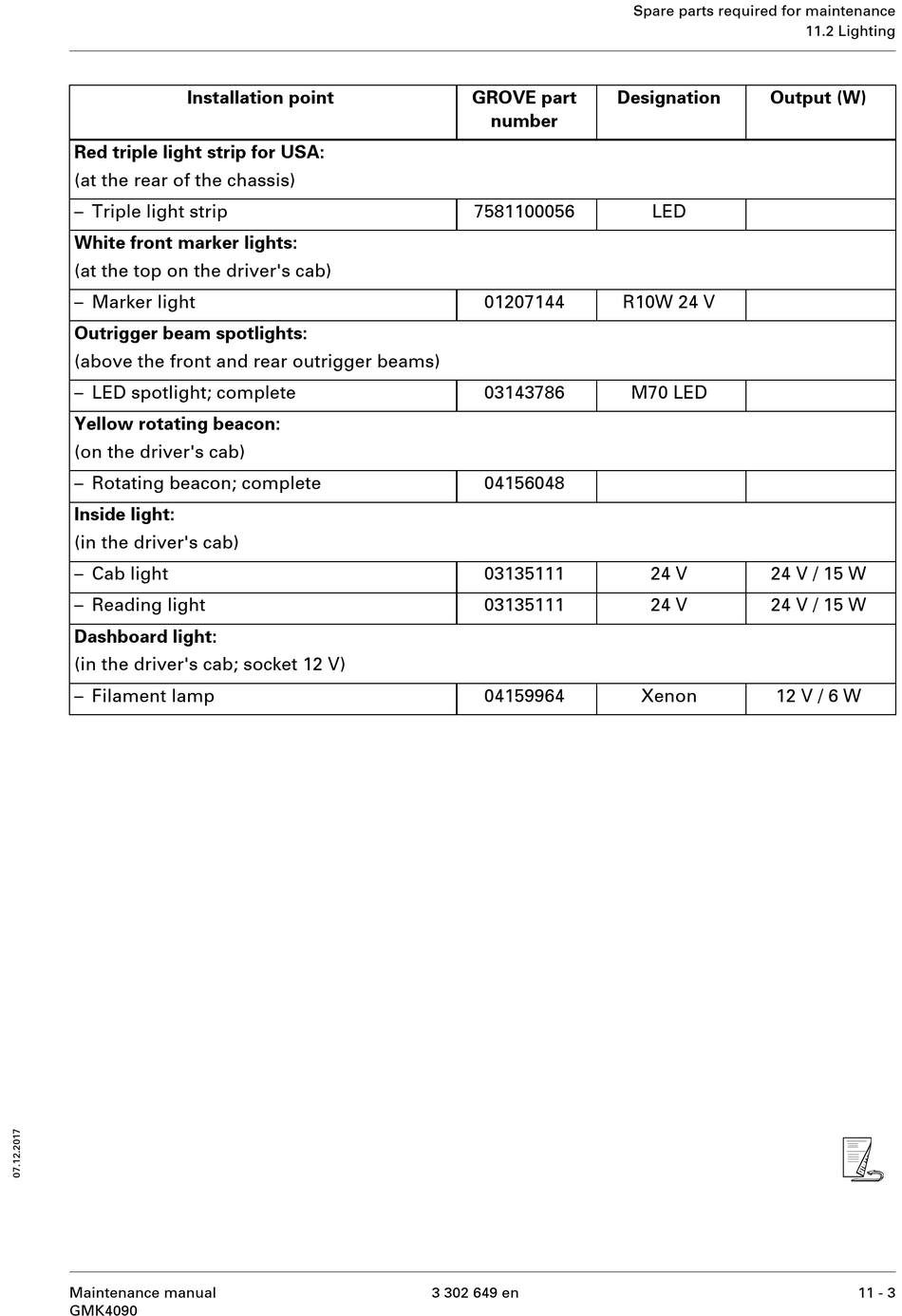

Installation point
Red triple light strip for USA:
(at the rear of the chassis)
– Triple light strip
White front marker lights:
(at the top on the driver's cab)
– Marker light
Outrigger beam spotlights:
(above the front and rear outrigger beams)
– LED spotlight; complete
Yellow rotating beacon:
(on the driver's cab)
– Rotating beacon; complete
Inside light:
(in the driver's cab)
– Cab light
– Reading light
Dashboard light:
(in the driver's cab; socket 12 V)
– Filament lamp
Maintenance manual
GMK4090
GROVE part
number
7581100056
01207144
03143786
04156048
03135111
03135111
04159964
3 302 649 en
Spare parts required for maintenance
Designation Output (W)
LED
R10W 24 V
M70 LED
24 V 24 V / 15 W
24 V 24 V / 15 W
Xenon 12 V / 6 W
11.2 Lighting
