Maintenance manual
GMK4090
•

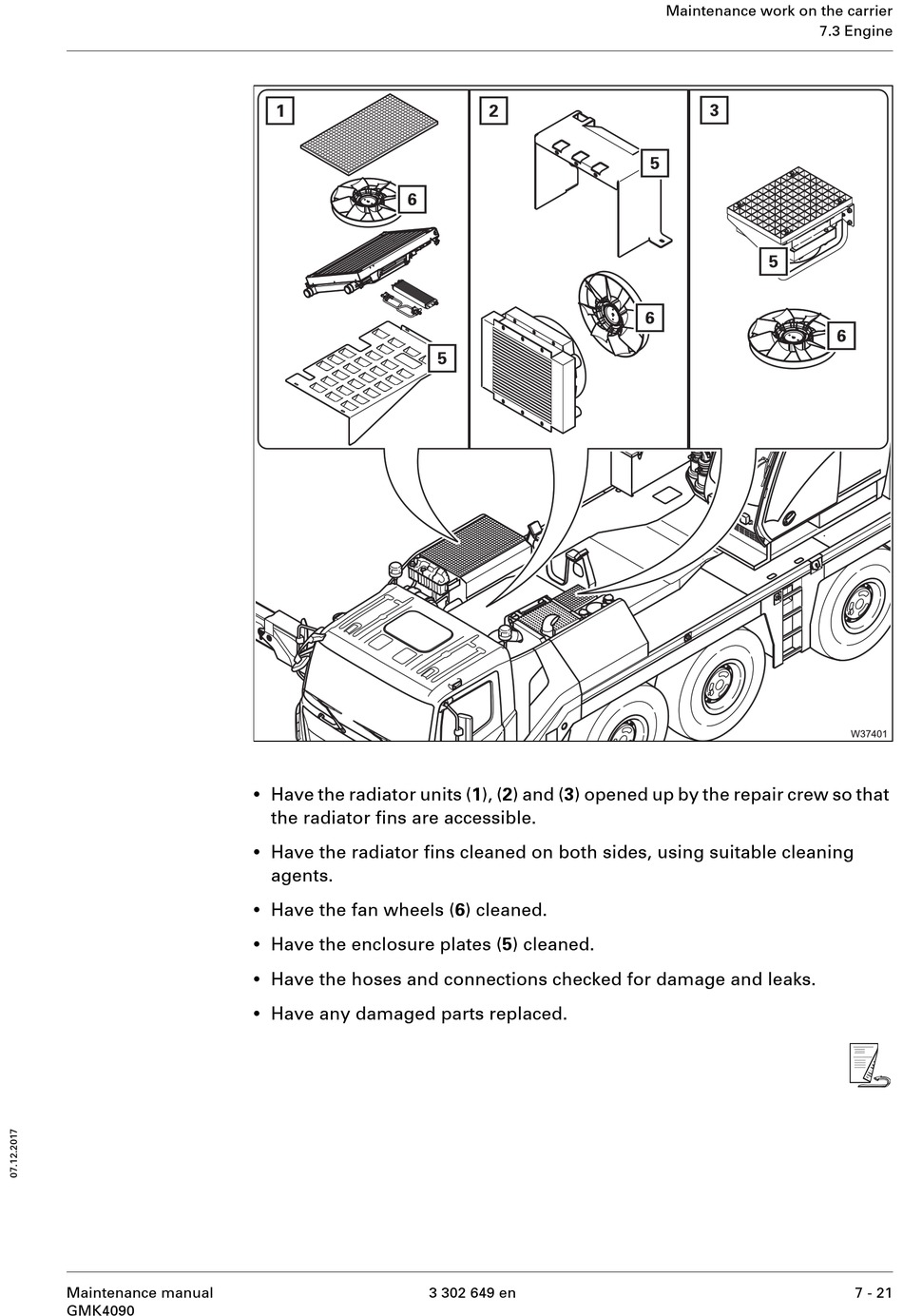

Have the radiator units (1), (2) and (3) opened up by the repair crew so that
the radiator fins are accessible.
•
Have the radiator fins cleaned on both sides, using suitable cleaning
agents.
•
Have the fan wheels (6) cleaned.
•
Have the enclosure plates (5) cleaned.
•
Have the hoses and connections checked for damage and leaks.
•
Have any damaged parts replaced.
3 302 649 en
Maintenance work on the carrier
7.3 Engine
•
s
7 - 21
