Operation
Login Screen
0
The FPC 6000 is a touchscreen interface that allows the user to control, monitor, access, and
manage a range of Extron matrix switchers via a direct connection or over a local area network.
Two or more FPC units connected to the network allow the matrix switcher to be controlled from
multiple locations.
This section of the guide describes the front panel login screen and how to use the four main
screens:
Login Screen
•
Ties Screen
•
Status Screen
•
I/O Info Screen
•
Customize Screen
•
The login screen allows you to connect with a FOX matrix switcher over a LAN. The other
screens allow you to control and monitor the switcher.
When the FPC 6000 is powered on, it opens to the

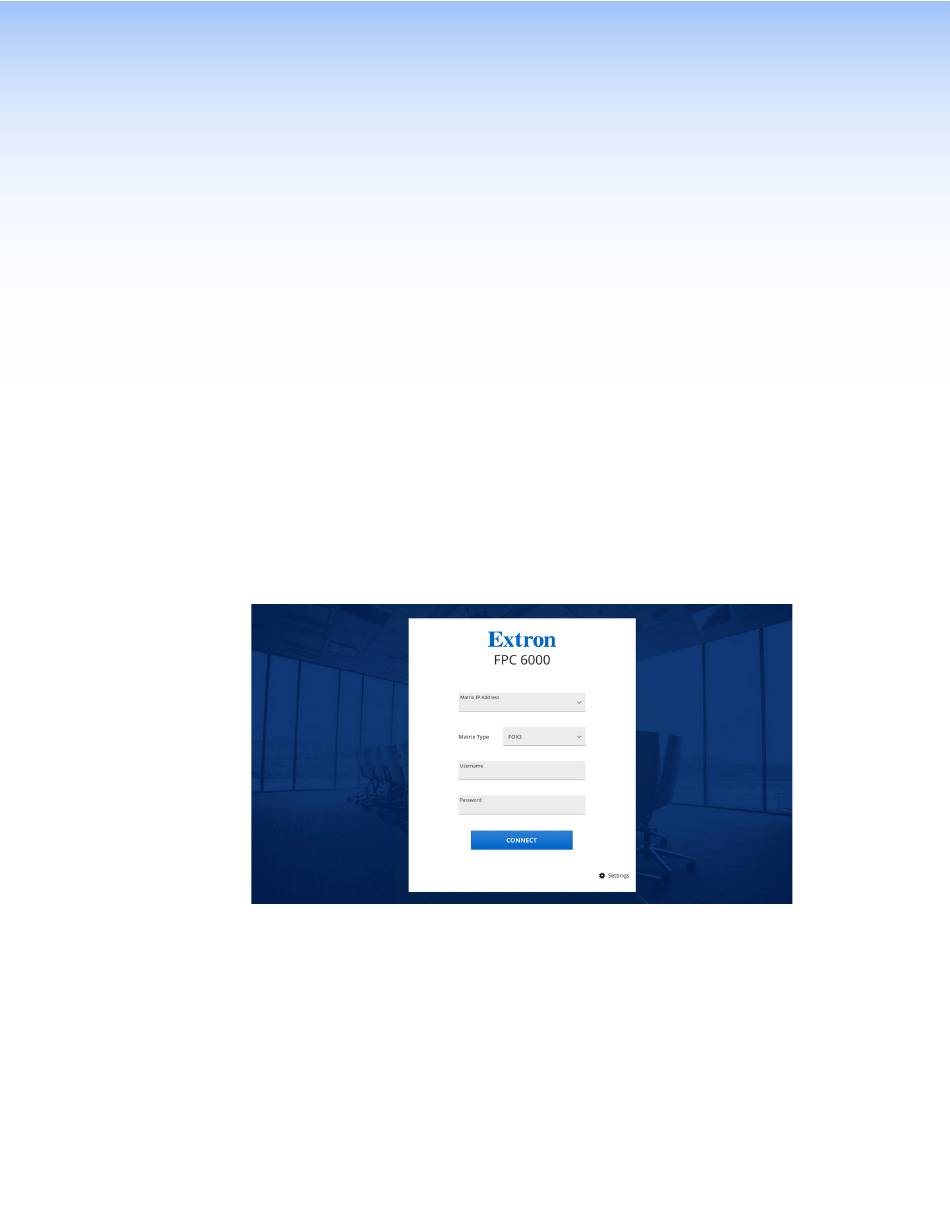

Figure 20.
FPC Login Screen
Login
screen.
FPC 6000 • Operation
22
