Mounting

When the FPC 6000 ships, it is housed in a 7U high, 19 inch wide, rack-mountable panel that
can be installed in any standard equipment rack or control console. Follow the instructions below
and read the
page.

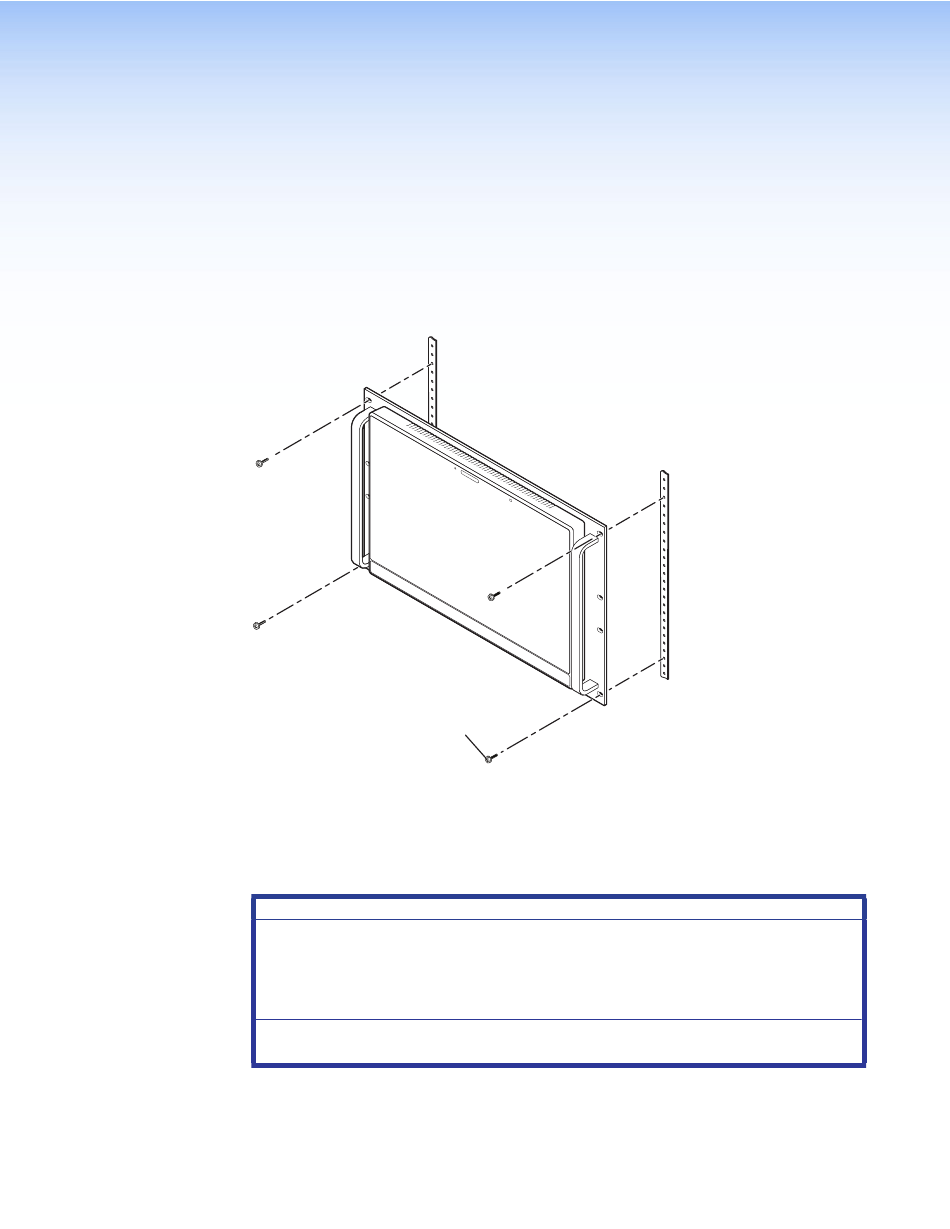

Figure 2.

Installing the FPC 6000 in a Rack or Control Console

The FPC 6000 is housed in a rack-mountable panel when it ships.
ATTENTION:
Underwriters Laboratories (UL) Guidelines for Rack Mounting
e e
FPC 6000
#10-32 screws (4)
Rack Mounting the FPC 6000
•
All structural steps and electrical installation must be performed by qualified personnel
in accordance with local and national building codes and electrical codes.
•
Toute étape structurelle et installation électrique, doit être effectuée par un personnel
qualifié, conformément aux codes du bâtiment, aux codes incendie et sécurité, et
aux codes électriques, locaux et nationaux.
•
Do not install the FPC 6000 in a fire resistant rated wall or partition assembly.
• Ne pas installer le FPC 6000 dans un mur résistant au feu ou une cloison.
on the next
