Break A Tie

0
3.
To make the potential tie permanent (created in step 2), press the
the changes that you have made.

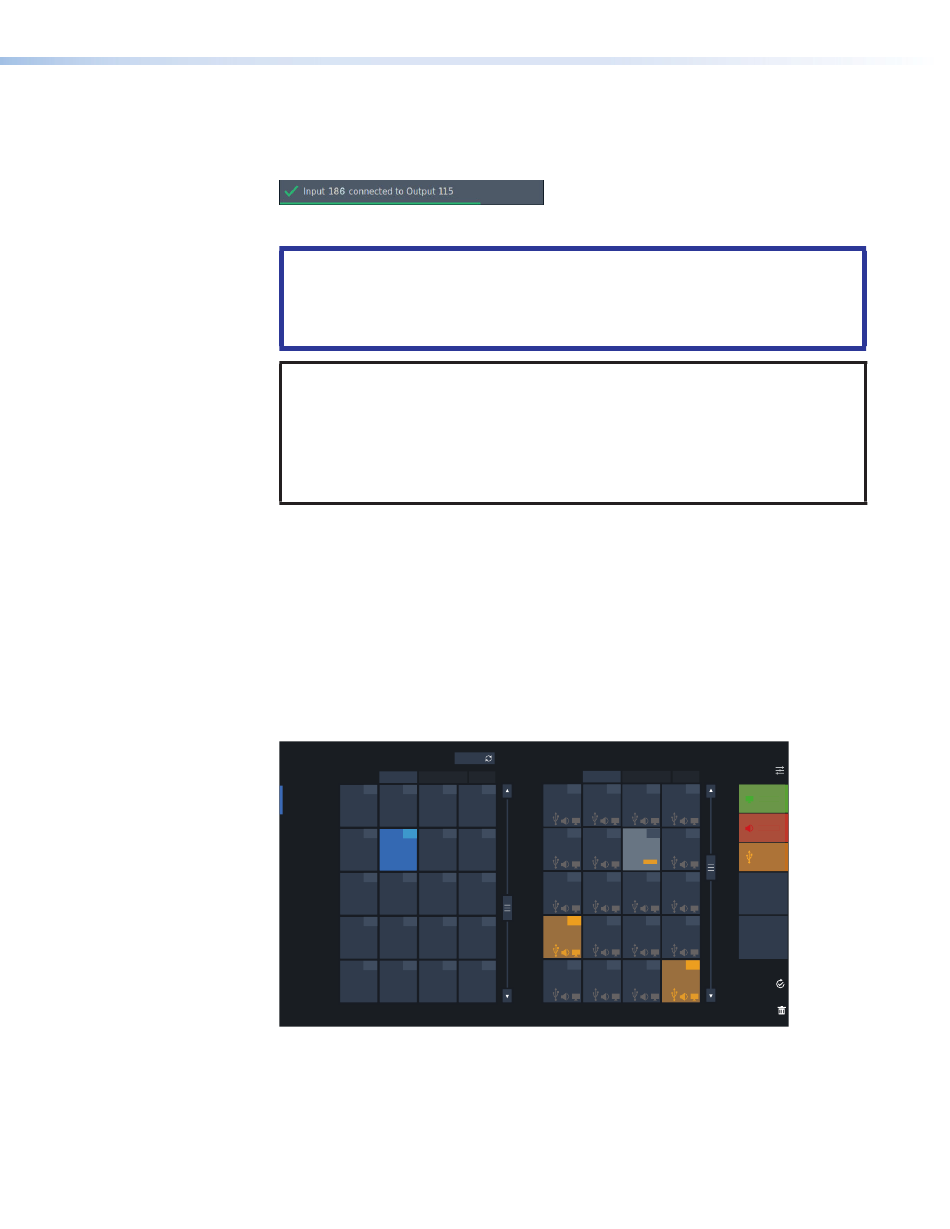

Progress in saving the selection is shown in a bar that appears at the top of the screen.
Progress Bar
Figure 29.
ATTENTION:
•
If an output was previously tied to a different input, the old tie is overwritten,
without a warning.
•
Si une sortie était précédemment liée à une autre entrée, l'ancienne liaison est
remplacée sans avis préalable.
NOTES:
•
One input can be tied to multiple outputs but each output can be tied only to a
single input.
•
Press the Clear Selection button to clear a tie before the changes have been
made.
•
When you have selected an input, you can press the Select All button to tie all
the outputs to that input.
To break an existing tie, follow these steps:
1. Press the desired input button. The selected input button and any outputs that are already
tied to it light up (see figure 27
2. Press one or more buttons for tied outputs that you wish to break.
A minus sign appears in the bottom right corner of the selected output button and the Take
button becomes active.
In figure 30, Input 186 has existing links to Outputs 115, 121, and 128. Output 115 has
been selected to break its tie with Input 186, as shown by the minus sign. Outputs 121
and 128 have not been pressed and the ties remain.
M AT R I X T I E S
INPUTS
Grid (Standard) Grid (Internal Audio)
Viewing Mode:
181 182
T I E S
Input 181 Input 182 Input 183
S TAT U S
185 186
Input 185 Input 186 Input 187
I /O I N F O
189 190
C U S TO M I Z E
Input 189 Input 190 Input 191
D I S C O N N E C T
193 194
Input 193 Input 194 Input 195
197 198
Input 197 Input 198 Input 199
Breaking a Tie
Figure 30.
on the previous page).
R EFRES H
OU TPUTS
Numpad Grid (Standard)
Viewing Mode:
183 184 109 110
Input 184 Output 109 Output 110
187 188 113 114
Input 188 Output 113 Output 114
191 192 117 118
Input 192 Output 117 Output 118
121 122
195 196
Output 121 Output 122
Input 196
199 200 125 126
Input 200 Output 125 Output 126
Take button. This saves
PR ESETS
Grid (Internal Audio) Numpad
111 112
VIDEO VIDEO
Output 111 Output 112
AUDIO AUDIO
115 116
Output 115 Output 116
U SB
119 120
MU TE /
Output 119 Output 120
U NMU TE
123 124
Output 123 Output 124
TAKE
127 128
Output 127 Output 128
SELECT AL L
CLEAR
SELECT IO N
FPC 6000 • Operation 28
