Setup Menu

The setup menu allows initial configuration of the FPC 6000.
Setup Menu
To open the setup menu, press the Settings link at the bottom of the Login screen (see
figure 20
one of the
or under the front panel (see
button.
The menus open at the Status screen. There are five navigation buttons in the panel at the top
of the screen. These open the following screens:
•
•
•
•
•
The screens are selected by pressing the appropriate button in the navigation panel at the top of
the screen. The button for the selected screen is yellow. The buttons for the remaining screens
are black.
There is also a red Exit button in the top right corner of the screen. Pressing this button applies
and saves any changes and closes the menu screens.

Status

Press the Status button in the navigation panel at the top of any screen to open the Status
screen.

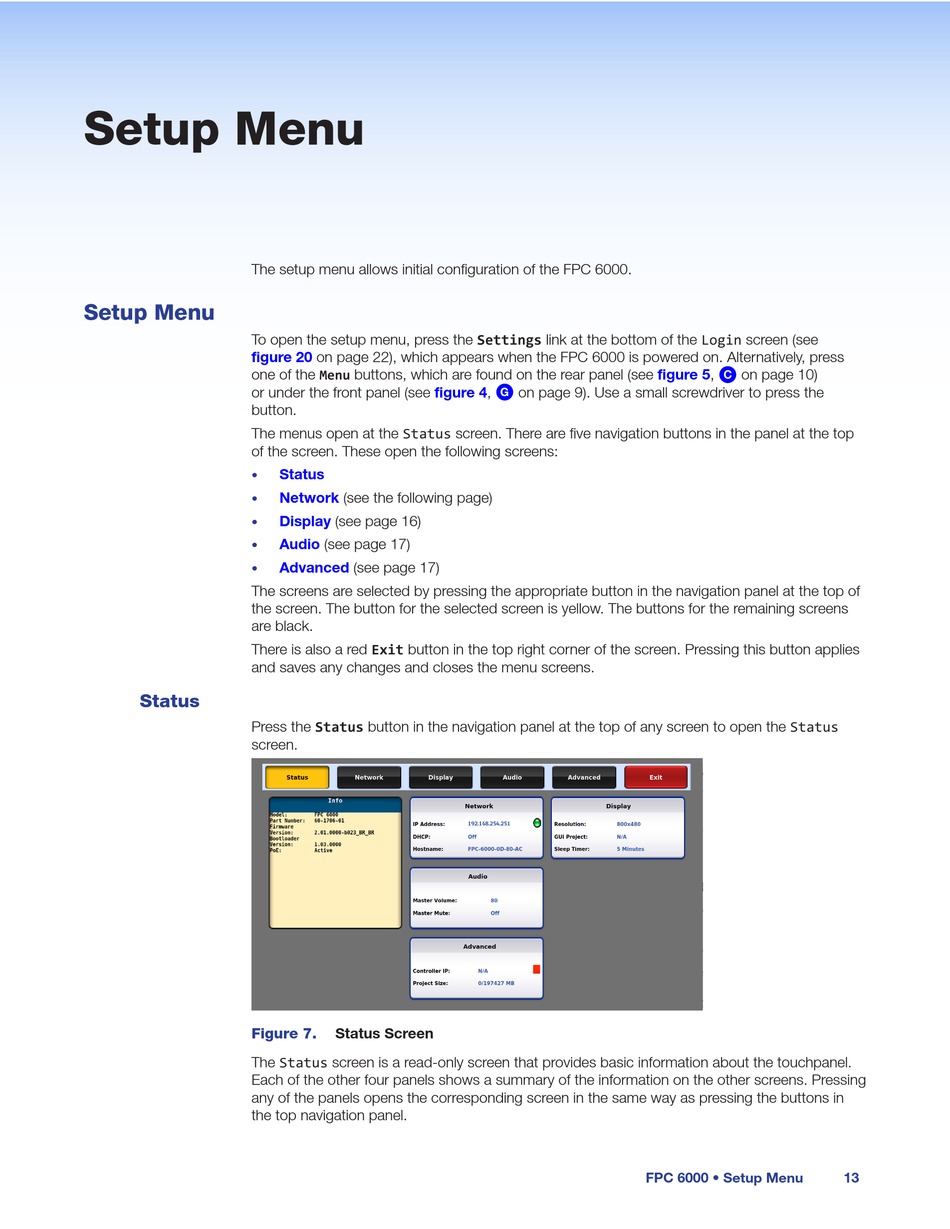

Figure 7.
The Status screen is a read-only screen that provides basic information about the touchpanel.
Each of the other four panels shows a summary of the information on the other screens. Pressing
any of the panels opens the corresponding screen in the same way as pressing the buttons in
the top navigation panel.
on page 22), which appears when the FPC 6000 is powered on. Alternatively, press
buttons, which are found on the rear panel (see
Menu
figure
Status
Network (see the following page)
Display (see page 16)
Audio (see page 17)
Advanced (see page 17)
Status Screen
