Audio; Advanced - Extron electronics FPC 6000 User Manual

Audio

2

Advanced

3
Press the Audio button in the navigation panel at the top of the screen to open the Audio
screen.

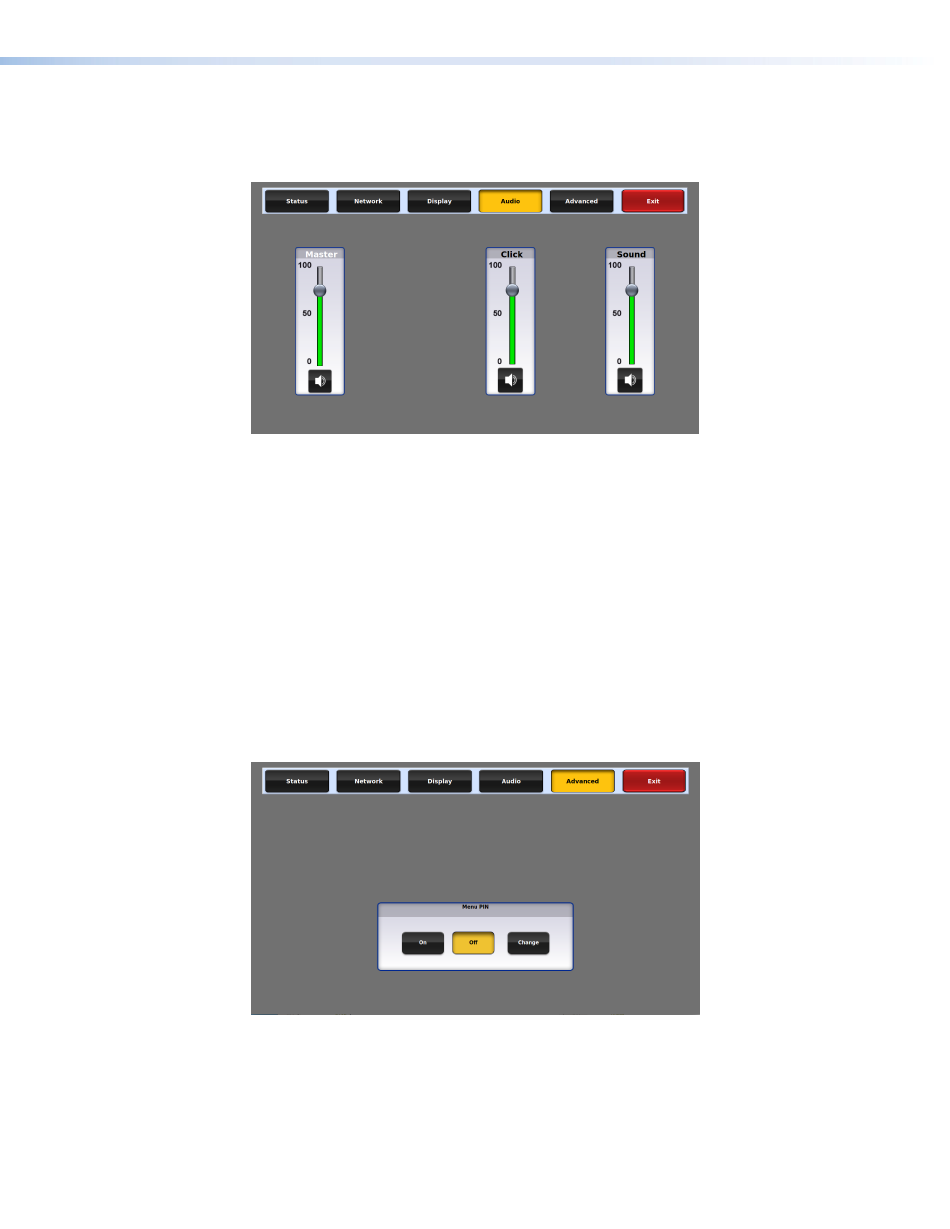

Figure 12. Audio Screen
On the Audio screen, use the Master, Click, and Sound slider controls to adjust the volume
settings.
Master — Sets the maximum volume for all the other sound volume settings. For example,
•
if the master volume is set to 80 (80 percent of maximum), even when the sound volume is
set to 100, it is equivalent to only 80 percent of maximum.
Click — Sets the volume for audible feedback that accompanies events such as a screen
•
button being pressed.
Sound — Sets the volume of audio from any audio file playback.
•
Click on the Speaker icon at the bottom of each panel to toggle between audio on and audio
mute.
Press the Advanced button in the navigation panel at the top of the screen to open the
Advanced screen.
Advanced Screen
Figure 13.
Menu PIN
The PIN setup options allow you to enable, disable, or change the setup menu PIN. The PIN is a
four-digit number. Each digit can have any value from 0-9.
FPC 6000 • Setup Menu 17
