Panel Features
This section describes:
•
•
Front Panel Features

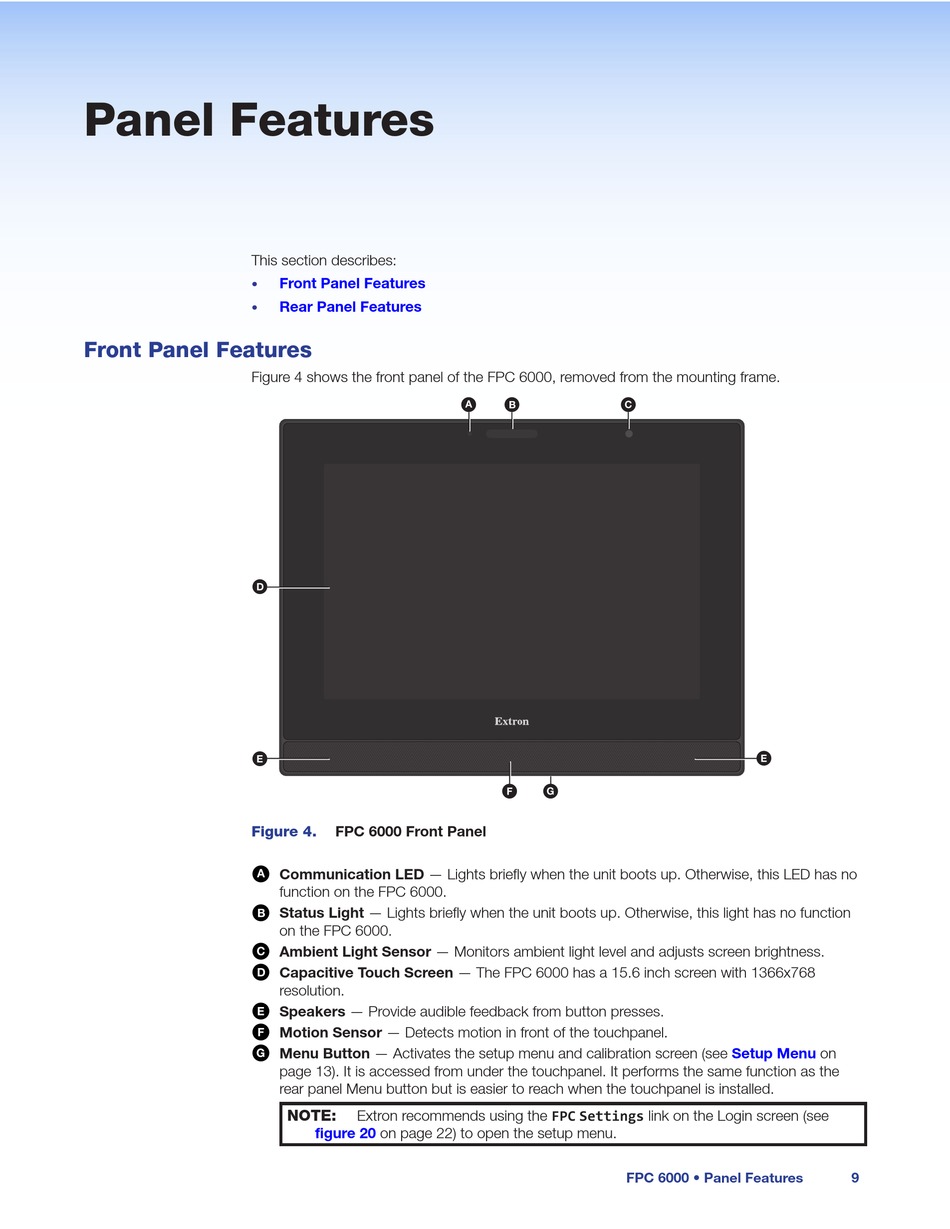

Figure 4 shows the front panel of the FPC 6000, removed from the mounting frame.
D
E
Figure 4.
A
B
C
D
E
F
G
Front Panel Features
Rear Panel Features
FPC 6000 Front Panel
Communication LED — Lights briefly when the unit boots up. Otherwise, this LED has no
function on the FPC 6000.
Status Light — Lights briefly when the unit boots up. Otherwise, this light has no function
on the FPC 6000.
Ambient Light Sensor — Monitors ambient light level and adjusts screen brightness.
Capacitive Touch Screen — The FPC 6000 has a 15.6 inch screen with 1366x768
resolution.
Speakers — Provide audible feedback from button presses.
Motion Sensor — Detects motion in front of the touchpanel.
Menu Button — Activates the setup menu and calibration screen (see
page 13). It is accessed from under the touchpanel. It performs the same function as the
rear panel Menu button but is easier to reach when the touchpanel is installed.
NOTE:
Extron recommends using the FPC Settings link on the Login screen (see
figure 20
on page 22) to open the setup menu.
A
B
C
F
G
FPC 6000 • Panel Features
E
Setup Menu
on
9
