1.
Download the cut-out template for the TLP Pro 1520MG from www.extron.com. Print it at
100% (no scaling).
2.
Use the template to mark the wall, cut the hole, and drill the four pilot holes (see figure 3,
The size of the cut-out hole is 8.90 inches (22.61 cm) wide x 5.70 inches (14.48 cm) high.
3.
The FPC 6000 ships, already mounted, in a rackmountable metal panel. Remove the FPC
6000, and unscrew the mounting plate from the panel.
4.
Secure the mounting plate to the mounting surface with four #10 screws (
must use screws and fasteners that are appropriate for the mounting surface.
5.
Run and connect cables to the back of the touchpanel (
page 10).
6.
Insert the two provided Phillips pan head #6-32 x ¾-inch length screws with washers in the
mounting screw slot ( 4
into ( ).
6
7. Hold the touchpanel at a slight angle and lower the notches at the top of the back panel over
the hooks of the mounting plate (
8. Swing the bottom of the touchpanel inwards so that it lies flat against the mounting plate
with the flange at the bottom of the mounting plate sitting in a groove in the bottom of the
touchpanel ( ).
6
9. Secure the touchpanel to the mounting plate with the mounting screws (
2 2 2
Align the mounting plate with
the wall and mark for screws.
Secure the mounting plate
to the wall with 4 screws.
6 6 6
The flange at the bottom of the
mounting plate sits in a groove
in the bottom of the
touchpanel.
Back View

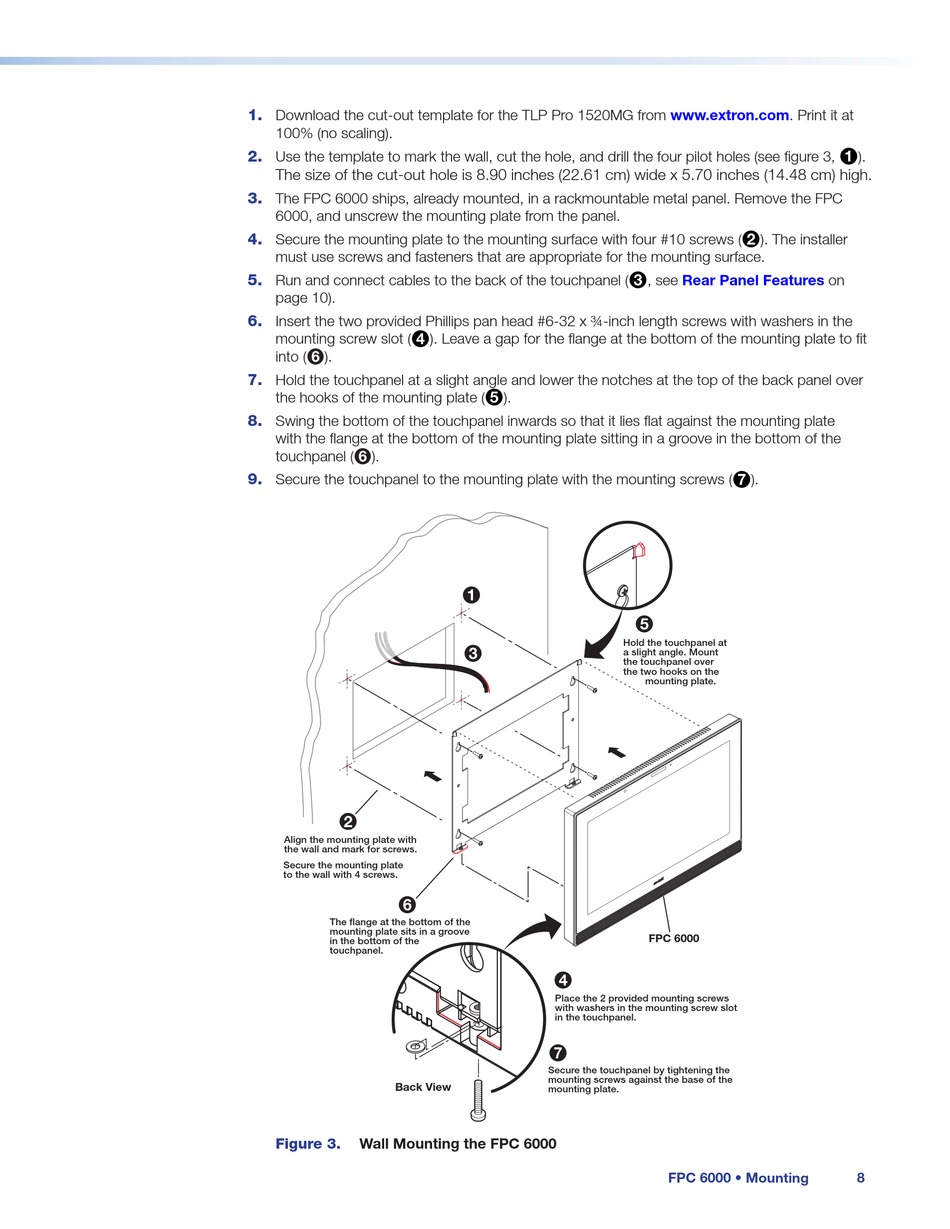

Wall Mounting the FPC 6000
Figure 3.
). Leave a gap for the flange at the bottom of the mounting plate to fit
).
5
1
1 1 1
3 3 3
4 4 4
Place the 2 provided mounting screws
with washers in the mounting screw slot
in the touchpanel.
7 7 7
Secure the touchpanel by tightening the
mounting screws against the base of the
mounting plate.
2 ). The installer
3 , see Rear Panel Features
).
7
5 5 5
Hold the touchpanel at
a slight angle. Mount
the touchpanel over
the two hooks on the
mounting plate.
FPC 6000
FPC 6000 • Mounting
1 ).
on
8
