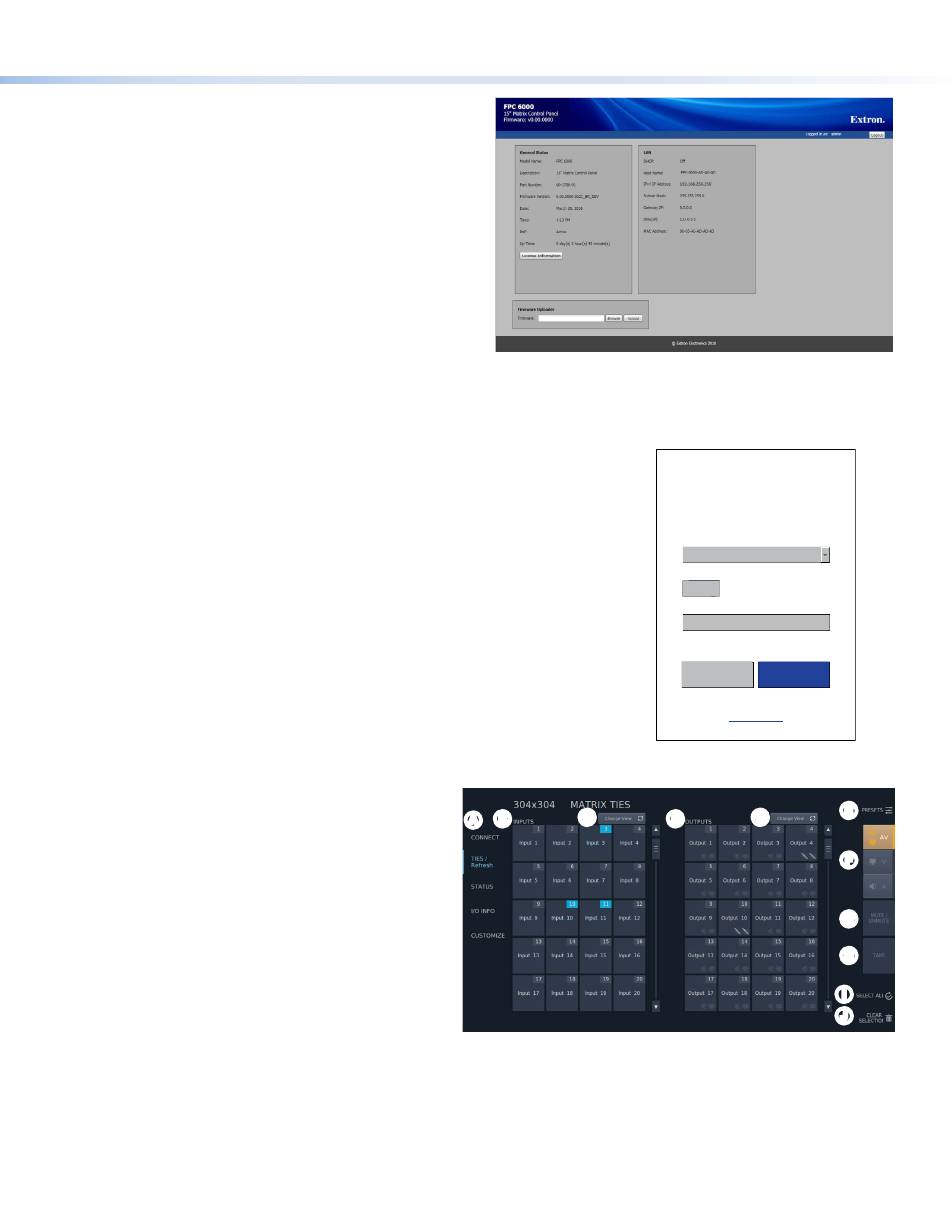

FPC 6000 Web Page

Open a web browser on a PC connected to the same
1.
subnet as the FPC 6000.
Enter the IP address of the FPC 6000 into the web browser.
2.
In the dialog box that opens, enter the touchpanel user
3.
name (by default, this is admin ) and password (by default,
this is extron ).
A single page provides read-only information about the unit.
It also allows you to update the FPC 6000 firmware (see the
FPC 6000 User Guide for more information).

Operation

Login Screen
The FPC 6000 has a
access, and manage a range of Extron matrix switchers through a direct connection or over a local area network.
Login Screen
When the FPC 6000 is powered on, it opens to the login screen.
Press the Matrix IP Address text box. An on-screen keyboard appears.
1.
Enter the IP address of the matrix switcher. If you have previously connected to the
2.
matrix switcher, the IP address may already be displayed, or may be available in the
drop-down menu.
Press the Port text box and enter the port number. This is usually 23 .
3.
Press the Password text box and enter the password for the matrix switcher.
4.
Press Connect . The FPC 6000 attempts to connect to the matrix switcher.
5.
If the connection is successful, the FPC 6000 opens to the Ties screen.
If the connection is unsuccessful, you will see an error message. Check that you have
the correct values for the IP address, port number, and password before re-entering
the values.
Ties
Press the Ties menu button. When the Ties screen is selected, the label on the button
changes to Ties/Refresh .
A
Menu Buttons — For navigating to the other main
screens.
B
Input Buttons — The block of numbered buttons on
the left shows 20 matrix switcher inputs at a time.
Use the scroll bar to see more. Inputs with an active
source have a blue rectangle in the top right corner.
C
Change View — Use these tabs to toggle between
the standard view (matrix mode) and the alternative
view (keypad mode) that allows you to work with a
single input or output at a time.
D
Output Buttons — The block of numbered buttons
on the right shows 20 matrix switcher outputs at a
time. Use the scroll bar to see more.
E
Presets — This menu allows you to save the current
configuration as a Global preset or replace the current
configuration with a previously saved preset.
F
Mute Selection — Allows only AV mute. FOX matrix
switchers do not allow breakaway.
G
Mute Controls — Allow you to mute audio and video on a selected output.
H
Take — Use this screen to set up potential ties. For those ties to go into effect, press Take .
I
Select All — Allows you to set up potential ties from one input to all outputs.
J
Clear Selection — Use this button to clear potential ties before they go into effect.
and four main screens (Ties, Status,
A A B B
Figure 9.
FPC 6000 Web Page
Figure 7.
I/O Info, and Customize) that allow you to control, monitor,
Figure 8.
C C
D D
FPC 6000 Ties Screen
Product Category
Extron
Login
Matrix IP Address
Port
Password
DISCONNECT CONNECT
FPC IP: 192.168.254.251
FPC Settings
FPC 6000 Login Screen
E E
C C
F F
G G
H H
I I
J J
5
