FPC 6000 • Setup Guide
Overview
The Extron FPC 6000 uses an Extron TLP Pro 1520M TouchLink
Extron FOX ® matrix switchers. The FPC 6000 is a stand-alone device that does not require an external controller. This guide provides
instructions for experienced installers to mount and install the touchpanel.
Setup Checklist

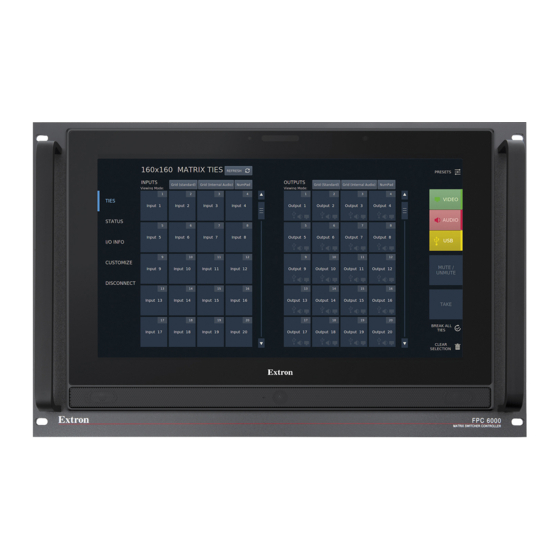

The FPC 6000 touchpanel ships with a Power over Ethernet power injector and a 7U high, 19-inch wide, rack-mountable metal panel.
When it ships, the touchpanel is already mounted in the panel
Get Ready
… Obtain the following network information from your network administrator:
… DHCP status — on or off. If DHCP is off, you must also obtain:
… IP address for the FPC 6000 — by default, this is 192.168.254.251
… Subnet mask for the FPC 6000 — by default, this is 255.255.255.0
… Gateway for the FPC 6000 — by default, this is 0.0.0.0
… User name for the FPC 6000 — by default, this is admin
… Password for the FPC 6000 — by default, this is extron
… IP address for the matrix switcher
… Password for the matrix switcher
Mount and Cable All Devices
NOTE:
The FPC 6000 ships with a PoE power injector. You can use a 12 VDC 3.0 A power supply instead, but that power supply
must be purchased separately.
ATTENTION:
• Do not power on the touchpanels or control processors until you have read the Attention in the "Rear Panel Features"
section of the FPC 6000 User Guide.
• Ne branchez pas les écrans tactiles ou les contrôleurs avant d'avoir lu la mise en garde dans la section « Rear Panel
Features » du FPC 6000 User Guide.
… Choose a suitable location and mount the units. When the FPC 6000 ships it is already mounted in a 7U high, 19-inch wide, rack-
mountable metal panel. Secure the panel to any standard instrument rack or console (see Mounting on the next page).
… A Power over Ethernet (PoE) power injector is provided with the FPC 6000. Connect the power injector to the FPC 6000 (see
figure 4 on page 4).
… Connect the power injector to the LAN and power it on (see
Set up the FPC 6000 for Network Communication
Use the Setup Menu (see page 4) to set the DHCP status and, if necessary, the IP address, subnet mask, gateway, and related
settings for the touchpanel.
The FPC 6000 requires no further configuration.
touchscreen to provide an intuitive 15-inch front panel controller for
®
figure 4).
