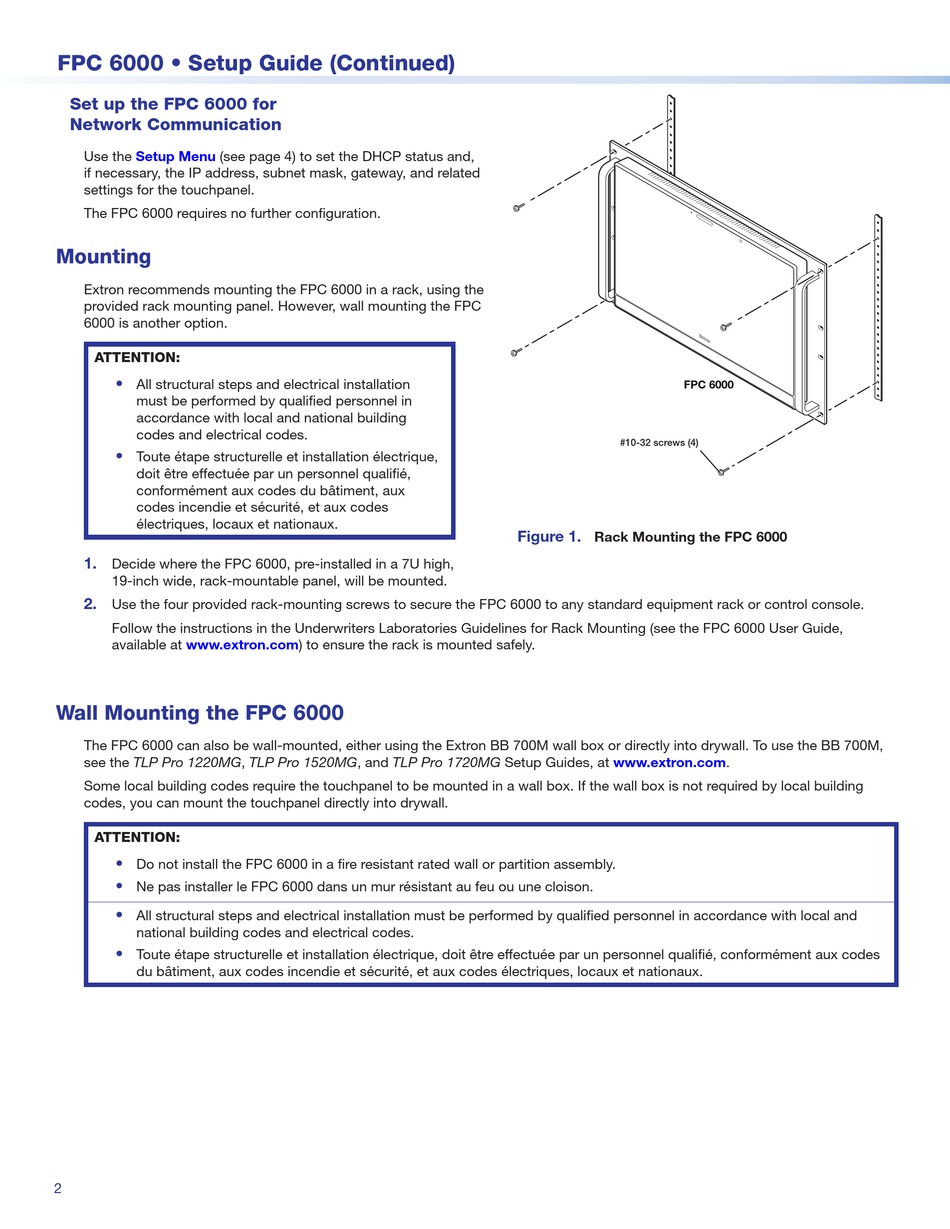

FPC 6000 • Setup Guide (Continued)
Set up the FPC 6000 for
Network Communication
Use the Setup Menu (see page 4) to set the DHCP status and,
if necessary, the IP address, subnet mask, gateway, and related
settings for the touchpanel.
The FPC 6000 requires no further configuration.
Mounting
Extron recommends mounting the FPC 6000 in a rack, using the
provided rack mounting panel. However, wall mounting the FPC
6000 is another option.
ATTENTION:
•
All structural steps and electrical installation
must be performed by qualified personnel in
accordance with local and national building
codes and electrical codes.
•
Toute étape structurelle et installation électrique,
doit être effectuée par un personnel qualifié,
conformément aux codes du bâtiment, aux
codes incendie et sécurité, et aux codes
électriques, locaux et nationaux.
1.
Decide where the FPC 6000, pre-installed in a 7U high,
19-inch wide, rack-mountable panel, will be mounted.
2.
Use the four provided rack-mounting screws to secure the FPC 6000 to any standard equipment rack or control console.
Follow the instructions in the Underwriters Laboratories Guidelines for Rack Mounting (see the FPC 6000 User Guide,
available at www.extron.com) to ensure the rack is mounted safely.

Wall Mounting the FPC 6000

The FPC 6000 can also be wall-mounted, either using the Extron BB 700M wall box or directly into drywall. To use the BB 700M,
see the TLP Pro 1220MG, TLP Pro 1520MG, and TLP Pro 1720MG Setup Guides, at www.extron.com.
Some local building codes require the touchpanel to be mounted in a wall box. If the wall box is not required by local building
codes, you can mount the touchpanel directly into drywall.
ATTENTION:
•
Do not install the FPC 6000 in a fire resistant rated wall or partition assembly.
•
Ne pas installer le FPC 6000 dans un mur résistant au feu ou une cloison.
•
All structural steps and electrical installation must be performed by qualified personnel in accordance with local and
national building codes and electrical codes.
•
Toute étape structurelle et installation électrique, doit être effectuée par un personnel qualifié, conformément aux codes
du bâtiment, aux codes incendie et sécurité, et aux codes électriques, locaux et nationaux.
2
FPC 6000
#10-32 screws (4)
Figure 1.
Rack Mounting the FPC 6000
