Automotive Module Series
AG525R-GL QuecOpen Hardware Design

4.2.2. Recommended RF Connector for Antenna Installation

If RF connector is used for antenna connection, it is recommended to use the HFM connector provided by
Rosenberger.

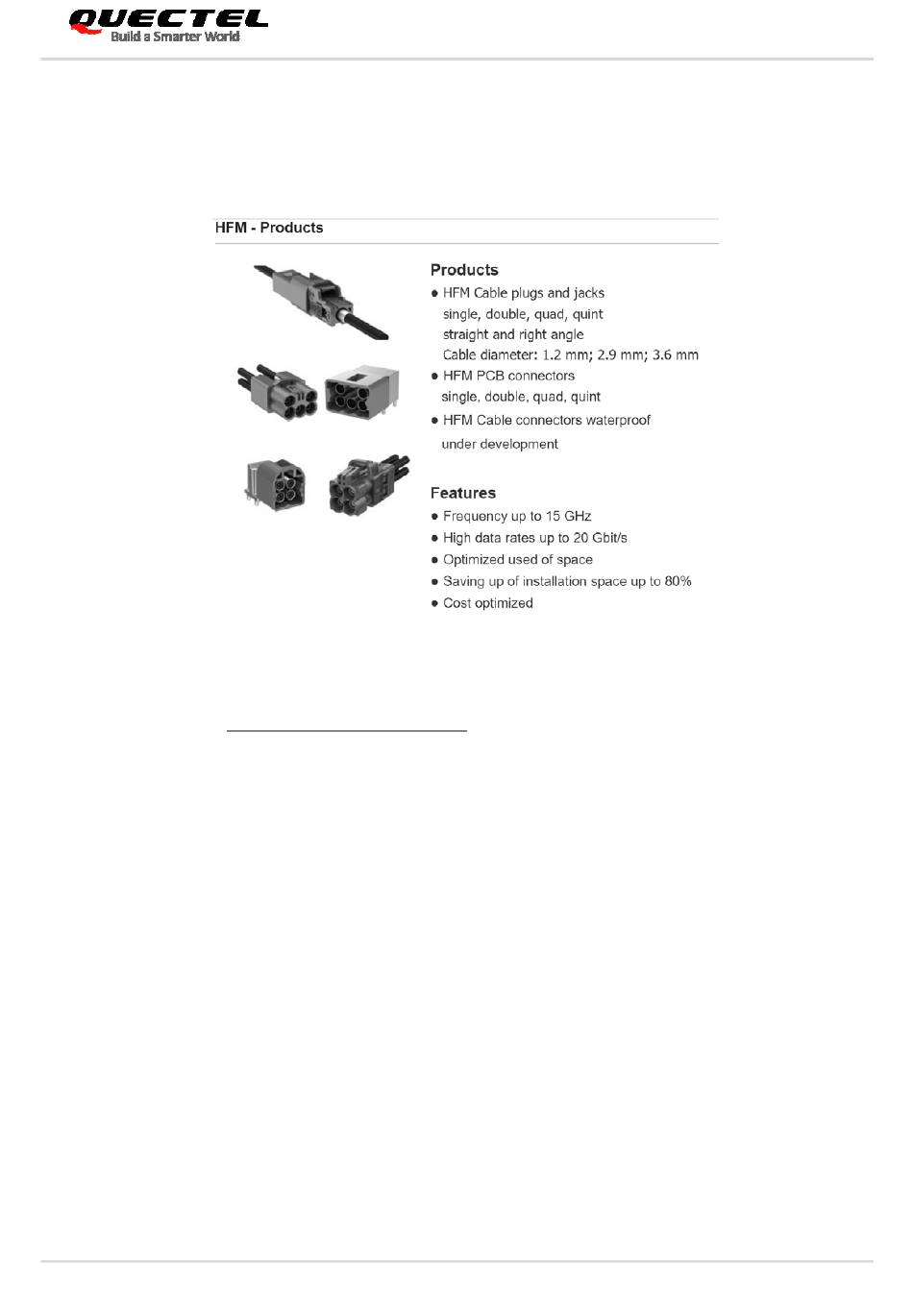

Figure 36: Description of the HFM Connector
For more details, visit https://www.rosenbergerap.com.
AG525R-GL_QuecOpen_Hardware_Design
76 / 104
