Table 10: RESET Pin Description
Pin Name
Pin No.
RESET
8
The recommended circuit is similar to the PWRKEY control circuit. An open drain/collector driver or button
can be used to control the RESET.
370–620 ms
Reset pulse

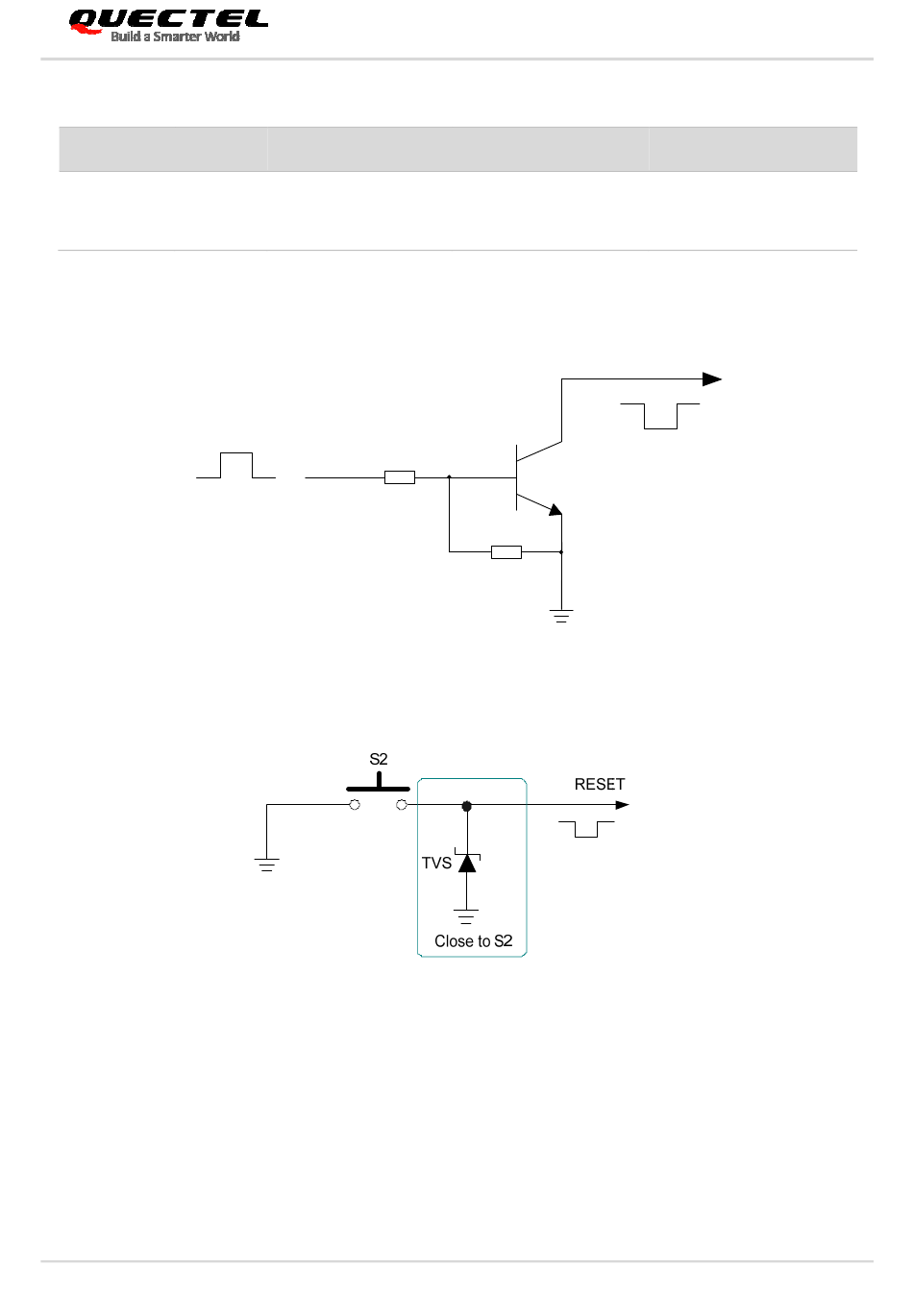

Figure 15: Reference Circuit of RESET by Using Driving Circuit
The reset scenario is illustrated in the following figure.
AG525R-GL_QuecOpen_Hardware_Design
Description
Reset the module
4.7K
Figure 16: Reference Circuit of RESET by Using Button
Automotive Module Series
AG525R-GL QuecOpen Hardware Design
DC Characteristics
V
max = 1.89 V
IH
V
min = 1.17 V
IH
V
max = 0.63 V
IL
RESET
47K
Comment
49 / 104
