Quectel SC20 Series
Multi-mode Smart LTE Module
with Wi-Fi & Bluetooth

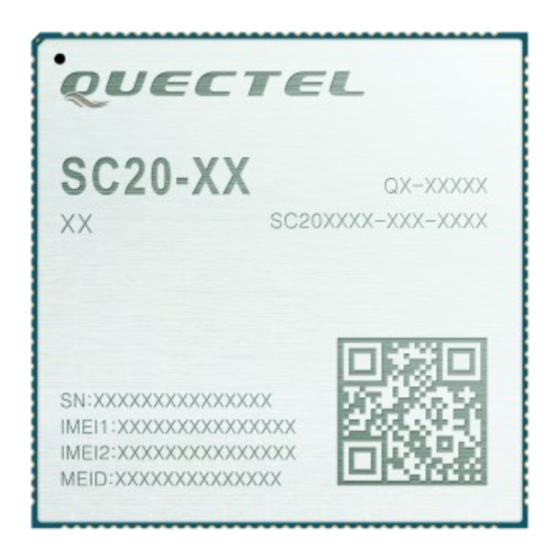

SC20 series is Quectel's new generation of multi-mode Smart LTE Cat 4 module. It contains five variants with built-in Android
OS: SC20-E, SC20-A, SC20-AU, SC20-J and Wi-Fi & BT only version SC20-W. Additionally, it contains five variants with built-in
Yocto Linux OS: SC20-EL, SC20-AL, SC20-AUL, SC20-JL and Wi-Fi & BT only version SC20-WL.
SC20 series module delivers maximum data rates of up to 150 Mbps downlink and 50 Mbps uplink based on LTE network, and
supports wireless communication via IEEE 802.11a/b/g/n and BT 4.2 LE. It is an ideal solution for both industrial and
consumer applications requiring high data rates and high-speed Internet access. The module is backward-compatible with
existing EDGE and GSM/GPRS networks, ensuring connection even in remote areas devoid of 3G or 4G coverage.
SC20 series module supports multiple-input multiple-output (MIMO) technology. The use of multiple antennas at the receiver
end at the same time and on the same frequency band greatly minimizes errors and optimizes the data speed. The module
also combines high-speed wireless connectivity with embedded multi-constellation and high-sensitivity GNSS (GPS, GLONASS,
Galileo and BeiDou) receiver for positioning.
A rich set of interfaces (such as LCM, Camera, Touch Panel, MIC, SPK, UART, USB, I2C) extend the applicability of the module
to a wide range of M2M applications, such as MID, PND, POS, router, data card, in-vehicle solutions, smartphone, digital
signage, security and industrial PDA.
Key
Features
Integration of Android OS or Yocto Linux OS, Wi-Fi, Bluetooth
and GNSS
Worldwide LTE, UMTS/HSPA+ and GSM/GPRS/EDGE coverage
MIMO technology which meets demands for data rate and link
reliability in modem wireless communication systems
Multi-constellation GNSS receiver available for applications
requiring fast and accurate fixes in any environment
LCC + LGA package which ensures reliable connectivity with
applications
EMAIL US: info@quectel.com
40.5 mm
2.8 mm
Smart LTE Cat 4
Android OS
Max. 150 Mbps (DL)
Max. 50 Mbps (UL)
IEEE 802.11
BT 4.2
a/b/g/n
(BR/EDR + BLE)
Powerful Multimedia
USB 2.0 High Speed
Functions
Interface
VISIT US: www.quectel.com
Yocto Linux OS
GPS/GLONASS/
Galileo/BeiDou
LCC + LGA
Package
Version: 1.9 | Status: Released

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SC20-EL and is the answer not in the manual?

Questions and answers

Summary of Contents for Quectel SC20-EL

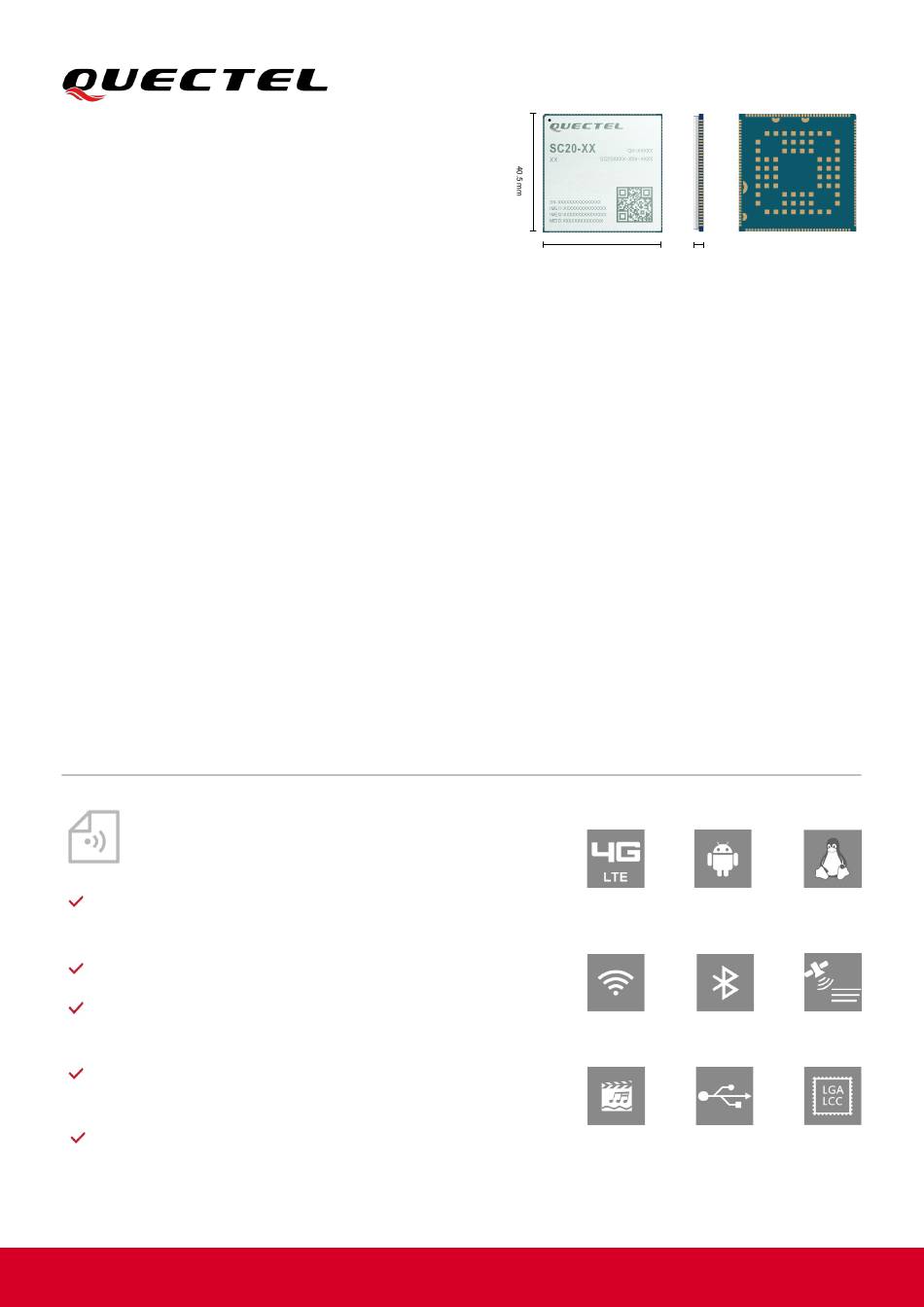

  • Page 1 2.8 mm SC20 series is Quectel’s new generation of multi-mode Smart LTE Cat 4 module. It contains five variants with built-in Android OS: SC20-E, SC20-A, SC20-AU, SC20-J and Wi-Fi & BT only version SC20-W. Additionally, it contains five variants with built-in Yocto Linux OS: SC20-EL, SC20-AL, SC20-AUL, SC20-JL and Wi-Fi &...
  • Page 2 5. * means ongoing. 6. ● means supported. Copyright © 2020 Quectel Wireless Solutions Co., Ltd. All Rights Reserved http://www.quectel.com HQ address: Building 5, Shanghai Business Park Phase III (Area B), No.1016 Tianlin Road, Minhang District, Shanghai, China 200233 Tel: +86 21 51086236...
  • Page 3 × 4, main antenna, Rx-diversity antenna, GNSS antenna and Wi-Fi/BT antenna interface respectively Copyright © 2020 Quectel Wireless Solutions Co., Ltd. All Rights Reserved http://www.quectel.com HQ address: Building 5, Shanghai Business Park Phase III (Area B), No.1016 Tianlin Road, Minhang District, Shanghai, China 200233 Tel: +86 21 51086236 Email: info@quectel.com...
  • Page 4 Smart EVB User Guide Smart LTE Module Series Rev. Smart_EVB_User_Guide_V1.1 Date: 2018-10-23 Status: Released www.quectel.com...
  • Page 5 QUECTEL OFFERS THE INFORMATION AS A SERVICE TO ITS CUSTOMERS. THE INFORMATION PROVIDED IS BASED UPON CUSTOMERS’ REQUIREMENTS. QUECTEL MAKES EVERY EFFORT TO ENSURE THE QUALITY OF THE INFORMATION IT MAKES AVAILABLE. QUECTEL DOES NOT MAKE ANY WARRANTY AS TO THE INFORMATION CONTAINED HEREIN, AND DOES NOT ACCEPT ANY LIABILITY FOR ANY INJURY, LOSS OR DAMAGE OF ANY KIND INCURRED BY USE OF OR RELIANCE UPON THE INFORMATION.
  • Page 6: About The Document

    Smart LTE Module Series Smart EVB User Guide About the Document History Revision Date Author Description 2016-09-30 Vae LIU Initial Added a comment for the power supply of Smart EVB in Table 1. Updated the top view of Smart EVB in Figure 1. Added a comment for RESET in Chapter 2.2.
  • Page 7: Table Of Contents

    Smart LTE Module Series Smart EVB User Guide Contents About the Document ........................... 2 Contents ............................... 3 Table Index ..............................5 Figure Index ..............................6 Introduction ............................7 1.1. Safety Information ........................8 General Overview ..........................9 2.1. Key Features ........................... 9 2.2.
  • Page 8 Smart LTE Module Series Smart EVB User Guide Appendix A Reference ........................45 Smart_ EVB_User_Guide 4 / 45...
  • Page 9 Smart LTE Module Series Smart EVB User Guide Table Index TABLE 1: KEY FEATURES OF SMART EVB ...................... 9 TABLE 2: INTERFACES OF SMART EVB ......................11 TABLE 3: ACCESSORIES LIST ........................15 TABLE 4: PIN ASSIGNMENT OF TOUCH PANEL INTERFACE ..............18 TABLE 5: PIN ASSIGNMENT OF MICRO USB INTERFACE ................
  • Page 10 Smart LTE Module Series Smart EVB User Guide Figure Index FIGURE 1: SMART EVB INTERFACE OVERVIEW ................... 11 FIGURE 2: SMART EVB TOP VIEW ......................... 13 FIGURE 3: SMART EVB BOTTOM VIEW ......................14 FIGURE 4: SMART EVB KIT ACCESSORIES ....................14 FIGURE 5: SIMPLIFIED POWER SUPPLY SCHEMATIC OF SMART EVB.............
  • Page 11: Introduction

    Smart LTE Module Series Smart EVB User Guide Introduction This document describes the evaluation board (Smart EVB) for Quectel Smart module SC20. The smart evaluation board is an assistant tool to develop and test SC20. Smart_ EVB_User_Guide 7 / 45...
  • Page 12: Safety Information

    If not so, Quectel assumes no liability for the customers' failure to comply with these precautions.
  • Page 13: General Overview

    Smart LTE Module Series Smart EVB User Guide General Overview Quectel supplies Smart EVB for designers to develop applications based on Quectel SC20 module. This EVB can test basic functionalities of the module. 2.1. Key Features The following table describes the key features of Smart EVB.
  • Page 14 Smart LTE Module Series Smart EVB User Guide ⚫ Switches 4 switches ⚫ Flashlight Support a flashlight LED ⚫ Vibrator A vibrator for testing the motor drive interface of the module ⚫ Support three sensors including ALS/PS, G-sensor/Gyroscopic Sensors sensor and compass sensor ⚫...
  • Page 15: Interface Overview

    Smart LTE Module Series Smart EVB User Guide 2.2. Interface Overview U204 J604 U205 J403 Debug ALS/PS J504 Compass U203 SIM2 TP_CON J702 G-sensor&Gyroscopic TP703 TP704 Earphone J905 S802 TE-A Sub CAM J701 J102 J101 S804 Main CAM TP701 TP702 Speaker J402 J703...
  • Page 16 Smart LTE Module Series Smart EVB User Guide Power key (push button) S901 Used to turn on/off the module PWRKEY J903 Used to connect PWRKEY to GND Reset push button RESET S908 Used to reset the module Micro USB J602 USB interface Speaker Used for loudspeaker...
  • Page 17: Top And Bottom Views Of Smart Evb

    Smart LTE Module Series Smart EVB User Guide DC interface J807 Used to connect to DC power adapter NOTE The “RESET” button does not work, because the RESET interface on SC20 module is disabled by default. Through enabling the RESET interface via software configuration, the “RESET” button can work properly.
  • Page 18: Smart Evb Kit Accessories

    Smart LTE Module Series Smart EVB User Guide Figure 3: Smart EVB Bottom View 2.4. Smart EVB Kit Accessories All accessories of the Smart EVB kit are listed as below. Please contact the supplier if there is something missing. USB Flash drive RF cables Bolts and USB to UART converter cable...
  • Page 19 Smart LTE Module Series Smart EVB User Guide Table 3: Accessories List Items Description Quantity USB to UART converter cable Cables USB cable RF cables Main antennas Antennas Wi-Fi antenna GNSS antenna (active) Audio Headphone USB Flash Drive USB2.0 to RS232 driver, USB driver, etc. Others Bolts and coupling nuts for fixing Smart EVB 4 for each...
  • Page 20: Interface Application

    Smart LTE Module Series Smart EVB User Guide Interface Applications This chapter describes the hardware interfaces of Smart EVB, shown as follows: ⚫ Power supply interfaces ⚫ Touch panel interface ⚫ LCM interface ⚫ Camera interfaces ⚫ SD card interface ⚫...
  • Page 21: Touch Panel Interface (J403)

    Smart LTE Module Series Smart EVB User Guide J801 S801 S803 U801 J807 DC 5V Figure 6: Power Supply Interfaces 3.2. Touch Panel Interface (J403) Smart EVB provides a touch panel interface J403, which is used for the connection between touch panel of LCM and EVB.
  • Page 22: Lcm Interface (J402)

    Smart LTE Module Series Smart EVB User Guide 6 5 4 3 1 J403 Figure 8: Pin Assignment of Touch Panel Interface Table 4: Pin Assignment of Touch Panel Interface Pin No. Pin Name Description TP_SDA I2C data signal of touch panel TP_SCL I2C clock signal of touch panel TP_RST...
  • Page 23 Smart LTE Module Series Smart EVB User Guide LDO17_2V85 LDO6_1V8 J402 LCM_LED+ LEDA LCM_ LED- LEDK LPTE LCD_TE RESET LCD _ RST LCD_ID NC (SDA-TP) NC (SCL-TP) NC (RST-TP) 4.7uF 0.1 uF NC (EINT-TP) VIO18 VCC28 NC (VTP-TP) DSI0_LN3_P MIPI_TDP3 MIPI_ TDN3 DSI0_LN3_M DSI0_LN2_P...
  • Page 24: Camera Interfaces (J301/J302)

    Smart LTE Module Series Smart EVB User Guide Figure 10: Pin Assignment of LCM Interface 3.4. Camera Interfaces (J301/J302) Smart EVB provides two camera interfaces (2-lane+1-lane) with main camera and sub camera assembled. ⚫ The main camera uses an 8M pixels digital CMOS sensor with auto-focusing function. ⚫...
  • Page 25 Smart LTE Module Series Smart EVB User Guide AF_VDD VDD _AF _2V8 AVDD LDO17_2V85 DVDD DVDD_1V2 DOVDD LDO6_1V8 MCAM_ RST 2.2K 2.2K MCAM_PWDN MCAM_MCLK CAM_I2C_ SDA CAM_I2C_ SCL CSI0_LN1_P CSI0_LN1_N CSI0_LN0_P CSI0_LN0_N CSI0_ CLK_P CSI0_ CLK_N 2.2uF 0.1uF AVDD DOVDD LDO6_1V8 SCAM_RST SCAM_PWDN...
  • Page 26: Sd Card Interface (J502)

    Smart LTE Module Series Smart EVB User Guide J301 J302 Figure 12: Camera Interfaces with Cameras Assembled 3.5. SD Card Interface (J502) Smart EVB provides an SD card interface (J502) for customers to test the module’s SD card interface. The following figure shows the simplified interface schematic for SD card interface on Smart EVB. SD_LDO11 SD_LDO12 LDO5_1V8...
  • Page 27: Usb Interface (J602)

    Smart LTE Module Series Smart EVB User Guide Figure 14: Pin Assignment of SD Card Interface 3.6. USB Interface (J602) The Smart EVB provides a Micro USB interface (J602), which complies with USB 2.0 specifications and supports USB OTG function. This interface is used for AT command communication, data transmission and firmware upgrade.
  • Page 28 Smart LTE Module Series Smart EVB User Guide Figure 15: Reference Circuit Design for USB Interface 1 2 34 5 J602 Figure 16: Pin Assignment of Micro USB Interface Smart_ EVB_User_Guide 24 / 45...
  • Page 29: Audio Interfaces (J702)

    Smart LTE Module Series Smart EVB User Guide Table 5: Pin Assignment of Micro USB Interface Pin No. Pin Name Description USB_VBUS Used for USB detection and power supply of OTG equipment USB_DM USB serial differential bus (minus) USB_DP USB serial differential bus (plus) USB_ID USB serial ID signal GND for USB interface...
  • Page 30: Headphone Interface

    Smart LTE Module Series Smart EVB User Guide 3.7.2. Headphone Interface The following figure shows the reference circuit design for headphone interface. MIC_GND MIC2_P HPH_L HS_DET HPH_R HPH_REF D1 D2 D3 D4 R7 R8 100pF 33pF 33pF 33pF Module 10K10K Figure 18: Reference Circuit Design for Headphone Interface The following figure shows the pin assignment of headphone interface.
  • Page 31: Microphone And Earphone Interfaces

    Smart LTE Module Series Smart EVB User Guide Table 6: Pin Assignment of Headphone Interface Pin No. Pin Name Description Positive microphone input Dedicated GND for audio R-AUDIO Headphone right channel DETECT Headphone detection L-AUDIO Headphone left channel Dedicated GND for audio The following figure shows the sketch design of audio plug which suits for the audio jack on Smart EVB.
  • Page 32: U)Sim Interfaces (J503/J504)

    Smart LTE Module Series Smart EVB User Guide 100pF 33pF 33pF MIC1_P U701 MIC MIC1_N EAR_P Earphone EAR_N 100 pF 33pF 33pF Figure 21: Reference Circuit Design for Microphone and Earphone Interfaces 3.8. (U)SIM Interfaces (J503/J504) The Smart EVB provides the following two (U)SIM card (2.95V or 1.8V) connectors: ⚫...
  • Page 33 Smart LTE Module Series Smart EVB User Guide Figure 23: Pin Assignment of (U)SIM1 Card Connector (J503) Table 7: Pin Assignment of (U)SIM1 Interface (J503) Pin No. Pin Name Description USIM_VDD (U)SIM1 card power supply USIM_RST (U)SIM1 card reset signal USIM_CLK (U)SIM1 card clock signal Ground...
  • Page 34: Uart Interfaces (J901/J604)

    Smart LTE Module Series Smart EVB User Guide 3.9. UART Interfaces (J901/J604) Smart EVB provides two UART interfaces: main UART port J901 and debug UART port J604. The debug UART interface is intended for data transmission and AT command communication. And the main debug UART interface is not used by default.
  • Page 35: Switches And Buttons

    Smart LTE Module Series Smart EVB User Guide Table 8: Pin Assignment of Debug UART Port (J604) Pin No. Pin Name Description Not connected RS232_TXD Transmit data RS232_RXD Receive data Not connected RS232_GND Ground Not connected Not connected Not connected Not connected 3.10.
  • Page 36 Smart LTE Module Series Smart EVB User Guide S802 S804 S906 S909 S903 S904 S901 S908 S905 S902 S907 S801 S803 Battery DC_Power Figure 26: Switches and Buttons Table 9: Description of Switches and Buttons Items Description S801 Used to select DCDC power supply or battery power supply Used to force the module to boot from USB port S802 Turned off by default...
  • Page 37: Status Indication Leds

    Smart LTE Module Series Smart EVB User Guide Used to enter home page Volume up button S904 Used to increase volume Focus button S905 Used to focus during shooting photos S906 Menu button Volume down button S907 Used to lower volume Reset push button S908 Used to reset the module...
  • Page 38: Test Points

    Smart LTE Module Series Smart EVB User Guide Bright: VBAT ON Extinct: VBAT OFF D808, D805 Disabled by default Indicate the network registration status of SC20 D807 Bright: Registered on Network Extinct: Not Registered on Network 3.12. Test Points J904 consists of 10 test points. The details are shown in the following figure and table. Figure 28: Pin Assignment of J904 Smart_ EVB_User_Guide 34 / 45...
  • Page 39: Flashlight

    Smart LTE Module Series Smart EVB User Guide Table 11: Details of Test Points Pin No. Pin Name Description GPIO_T2 GPIO_68 test point VDD_3V3 3.3V power supply of EVB GPIO_ T2 GPIO_69 test point CTS_3V3 3.3V CTS signal VREG_L5 LDO5_1V8 power supply of the module RXD_3V3 3.3V RXD signal Ground...
  • Page 40: Vibrator

    Smart LTE Module Series Smart EVB User Guide U201 D202 Figure 30: Flashlight 3.14. Vibrator The Smart EVB provides an ERM-type vibrator for customers to test the motor driver interface of SC20 module. The following figures show the reference circuit design of the vibrator and its location on the board.
  • Page 41: Sensors

    Smart LTE Module Series Smart EVB User Guide U206 Vibrator Figure 32: ERM-Type Vibrator 3.15. Sensors Smart EVB provides three sensors for testing purpose, as shown in the figure below. ALS/PS Compass G-sensor&gyroscopic Figure 33: Sensors Smart_ EVB_User_Guide 37 / 45...
  • Page 42: Operation Procedures Illustration

    Smart LTE Module Series Smart EVB User Guide Operation Procedures This chapter introduces how to use the Smart EVB for testing and evaluating Quectel SC20 module. 4.1. Power on SC20 Module The following are the procedures for powering on SC20 module.
  • Page 43: Power Off Sc20 Module

    Smart LTE Module Series Smart EVB User Guide 4.2. Power off SC20 Module There are two methods to power off the module. One is to operate via the system. The steps are shown as follows. 1. Press S901 (PWRKEY) for at least 1s under power on state, and then LCM will display a menu as shown in the following figure.
  • Page 44 Smart EVB User Guide Figure 36: USB COM Ports Install and then use the QCOM tool provided by Quectel to realize the communication between the smart module and the PC. The following figure shows the QCOM configuration: select correct “COM port”...
  • Page 45: Communication Via Uart Interface

    Figure 38: USB Serial Port Install and then use the QCOM tool provided by Quectel to realize the communication between the smart module and the PC. The following figure shows the QCOM configuration: select correct “COM port” (USB Serial Port) and set correct “Baudrate” (such as 115200bps). For more details about QCOM tool usage and configuration, please refer to document [2].
  • Page 46: Firmware Upgrade

    Figure 39: QCOM Configuration When Communicating via UART Interface 4.4. Firmware Upgrade Quectel SC20 module upgrade firmware via USB port by default. Please follow the procedures below to upgrade firmware. Open the firmware upgrade tool QFIL on PC and then power on SC20 module according to the procedures mentioned in Chapter 4.1.
  • Page 47 Smart LTE Module Series Smart EVB User Guide Figure 40: Firmware Upgrade Steps Smart_ EVB_User_Guide 43 / 45...
  • Page 48: Evb Accessories Assembly

    Smart LTE Module Series Smart EVB User Guide EVB Accessories Assembly Figure 41: Smart EVB and Accessories Assembly Smart_ EVB_User_Guide 44 / 45...
  • Page 49 Smart LTE Module Series Smart EVB User Guide Appendix A Reference Table 12: Related Documents Document name Remark Quectel_SC20_Hardware_Design SC20 hardware design Quectel_QCOM_User_Guide User guide for QCOM tool Table 13: Terms and Abbreviations Abbreviation Description Evaluation Board On-The-Go Personal Computer Subscriber Identity Module USIM Universal Subscriber Identity Module...
