3.12. I2S and I2C Interfaces

The module provides I2S and I2C interfaces for audio function design.
Table 17: Pin Definition of I2S Interface
Pin Name
Pin No.
CDC_RST
77
I2S_MCLK
81
I2S_WS
73
I2S_SCK
75
I2S_DIN
76
I2S_DOUT
78
Table 18: Pin Definition of I2C Interface
Pin Name
Pin No.
I2C1_SCL
79
I2C1_SDA
80
The following figure shows a reference design of I2S and I2C interfaces with an external codec IC.

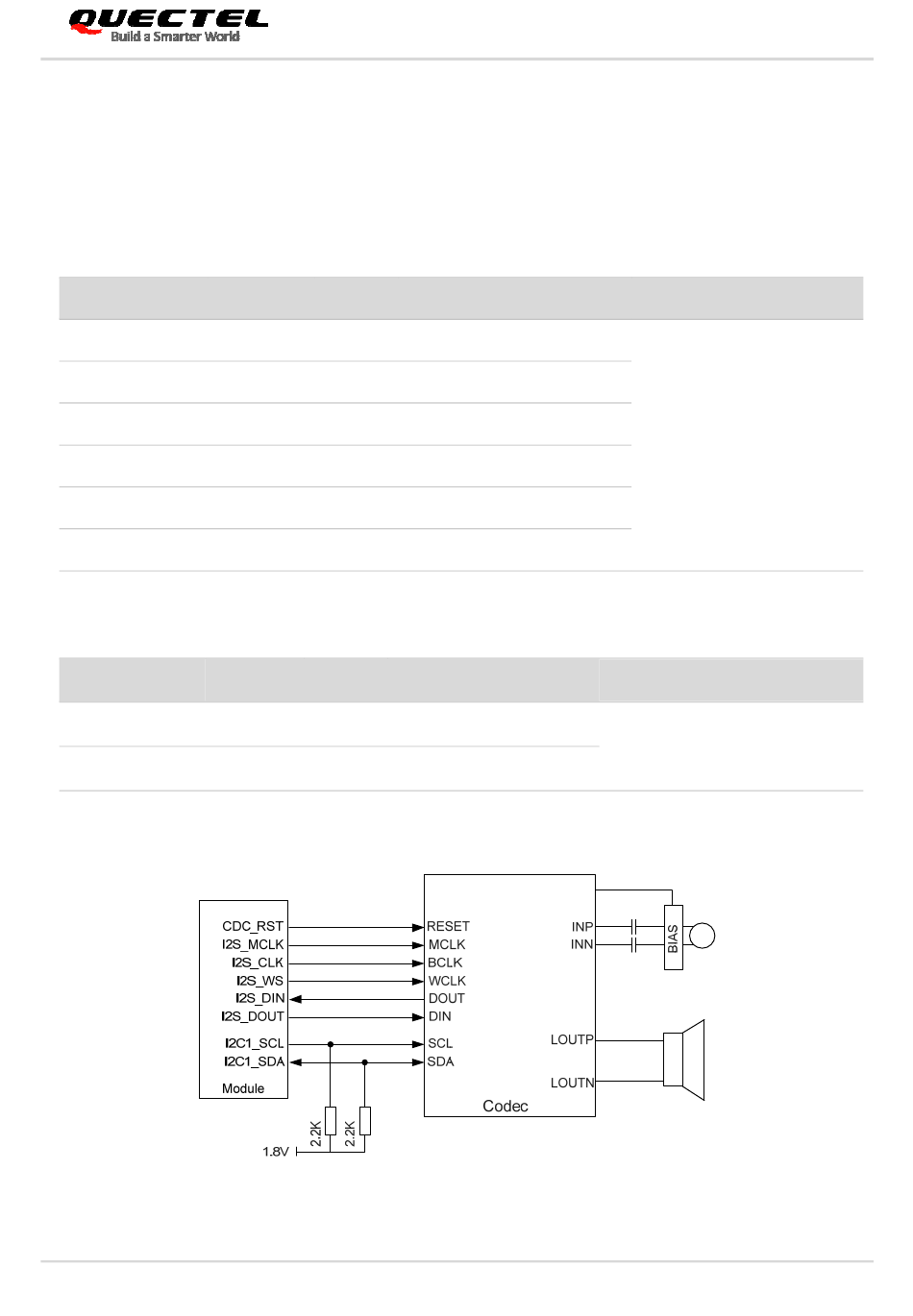

Figure 24: Reference Circuit of I2S and I2C Application with Audio Codec
AG525R-GL_QuecOpen_Hardware_Design
I/O
Description
DO
Codec reset
DO
Clock output for codec
IO
I2S word select
DO
I2S clock
DI
I2S data in
DO
I2S data out
I/O
Description
OD
I2C serial clock
OD
I2C serial data
Automotive Module Series
AG525R-GL QuecOpen Hardware Design
Comment
1.8 V power domain.
Can be configured to
GPIOs.
Comment
Require external pull-up to 1.8
V.
57 / 104
