NOTE
DRX cycle index values are broadcasted by the base station through the wireless network.

3.5.1.1. USB Application with USB Remote Wakeup Function

If the host supports USB suspend/resume and remote wakeup function, the following three preconditions
must be met to let the module enter sleep mode.
 Use sleep API to enable the sleep mode.
 Ensure the level of pins that configured as wake-up interrupt in Table 5 are under non-wakeup
status.
The host's USB bus, which is connected with the module's USB interface, enters suspended state.

The following figure shows the connection between the module and the host.
Figure 4: Sleep Mode Application with USB Remote Wakeup
AG525R-GL_QuecOpen_Hardware_Design

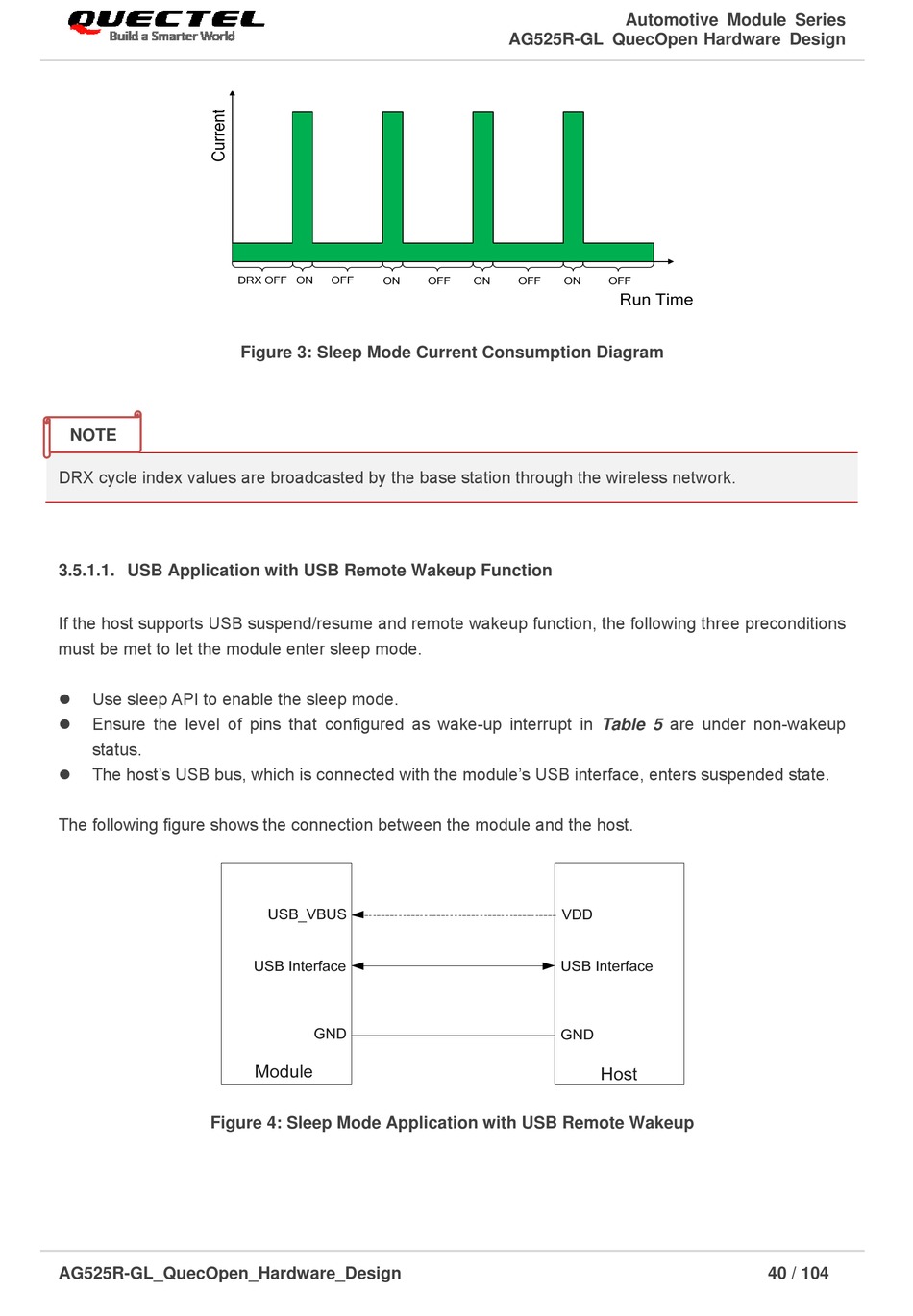

Figure 3: Sleep Mode Current Consumption Diagram
Automotive Module Series
AG525R-GL QuecOpen Hardware Design
40 / 104
