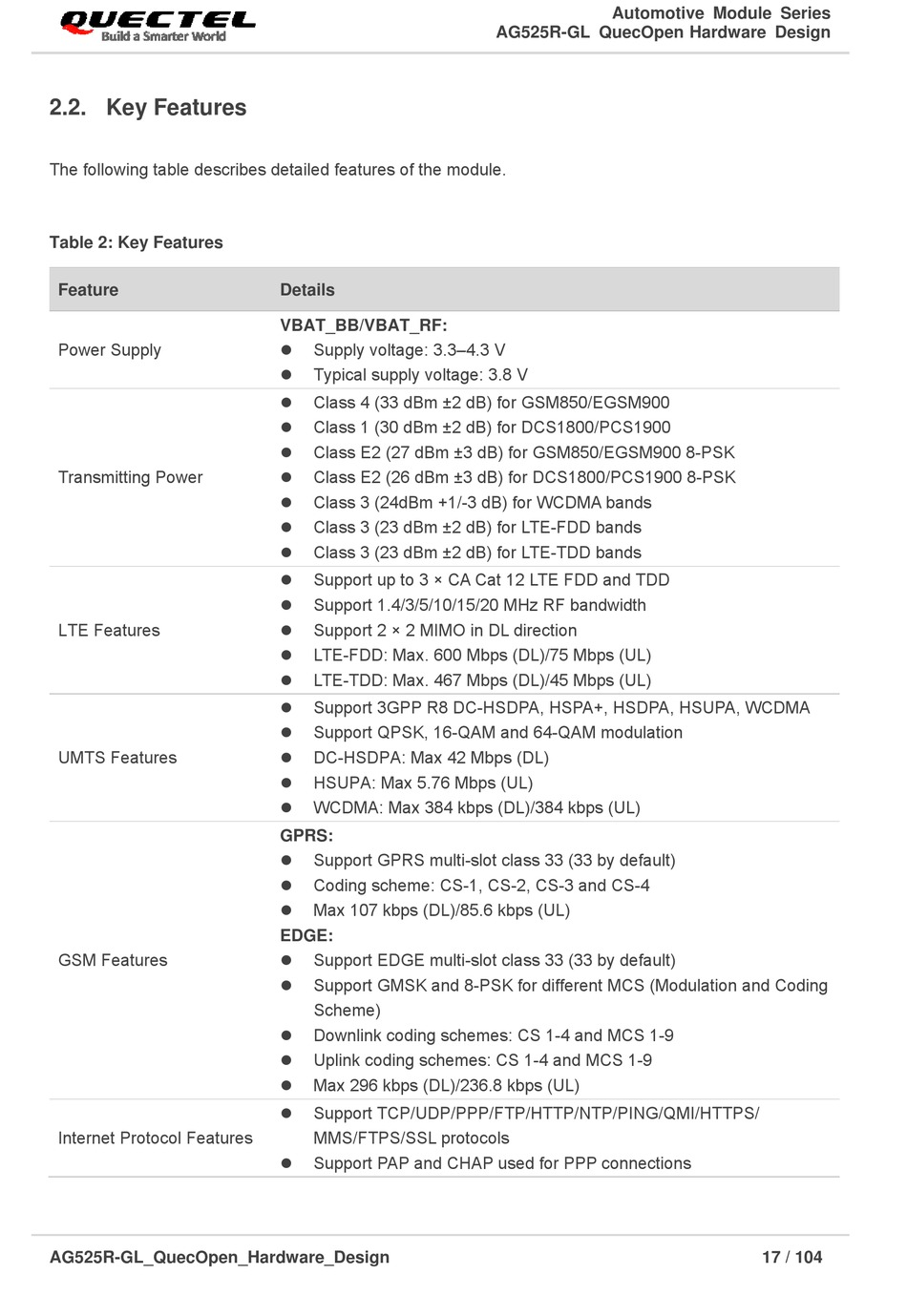

2.2. Key Features

The following table describes detailed features of the module.
Table 2: Key Features
Feature
Power Supply
Transmitting Power
LTE Features
UMTS Features
GSM Features
Internet Protocol Features
AG525R-GL_QuecOpen_Hardware_Design
Details
VBAT_BB/VBAT_RF:
Supply voltage: 3.3–4.3 V
Typical supply voltage: 3.8 V
Class 4 (33 dBm ±2 dB) for GSM850/EGSM900
Class 1 (30 dBm ±2 dB) for DCS1800/PCS1900
Class E2 (27 dBm ±3 dB) for GSM850/EGSM900 8-PSK
Class E2 (26 dBm ±3 dB) for DCS1800/PCS1900 8-PSK
Class 3 (24dBm +1/-3 dB) for WCDMA bands
Class 3 (23 dBm ±2 dB) for LTE-FDD bands
Class 3 (23 dBm ±2 dB) for LTE-TDD bands
Support up to 3 × CA Cat 12 LTE FDD and TDD
Support 1.4/3/5/10/15/20 MHz RF bandwidth
Support 2 × 2 MIMO in DL direction
LTE-FDD: Max. 600 Mbps (DL)/75 Mbps (UL)
LTE-TDD: Max. 467 Mbps (DL)/45 Mbps (UL)
Support 3GPP R8 DC-HSDPA, HSPA+, HSDPA, HSUPA, WCDMA
Support QPSK, 16-QAM and 64-QAM modulation
DC-HSDPA: Max 42 Mbps (DL)
HSUPA: Max 5.76 Mbps (UL)
WCDMA: Max 384 kbps (DL)/384 kbps (UL)
GPRS:
Support GPRS multi-slot class 33 (33 by default)
Coding scheme: CS-1, CS-2, CS-3 and CS-4
Max 107 kbps (DL)/85.6 kbps (UL)
EDGE:
Support EDGE multi-slot class 33 (33 by default)
Support GMSK and 8-PSK for different MCS (Modulation and Coding
Scheme)
Downlink coding schemes: CS 1-4 and MCS 1-9
Uplink coding schemes: CS 1-4 and MCS 1-9
Max 296 kbps (DL)/236.8 kbps (UL)
Support TCP/UDP/PPP/FTP/HTTP/NTP/PING/QMI/HTTPS/
MMS/FTPS/SSL protocols
Support PAP and CHAP used for PPP connections
