NOTE
Please assure that there is no large capacitance on PWRKEY and RESET pins.

3.9. (U)SIM Interfaces

The (U)SIM interface circuitry meets ETSI and IMT-2000 requirements. Both 1.8 V and 3.0 V (U)SIM
cards are supported.
Table 11: Pin Definition of (U)SIM Interface
Pin Name
Pin No.
USIM1_VDD
251
USIM1_DATA
254
USIM1_CLK
253
USIM1_RST
250
USIM1_DET
255
USIM2_VDD
256
USIM2_DATA
257
USIM2_CLK
259
USIM2_RST
260
AG525R-GL_QuecOpen_Hardware_Design

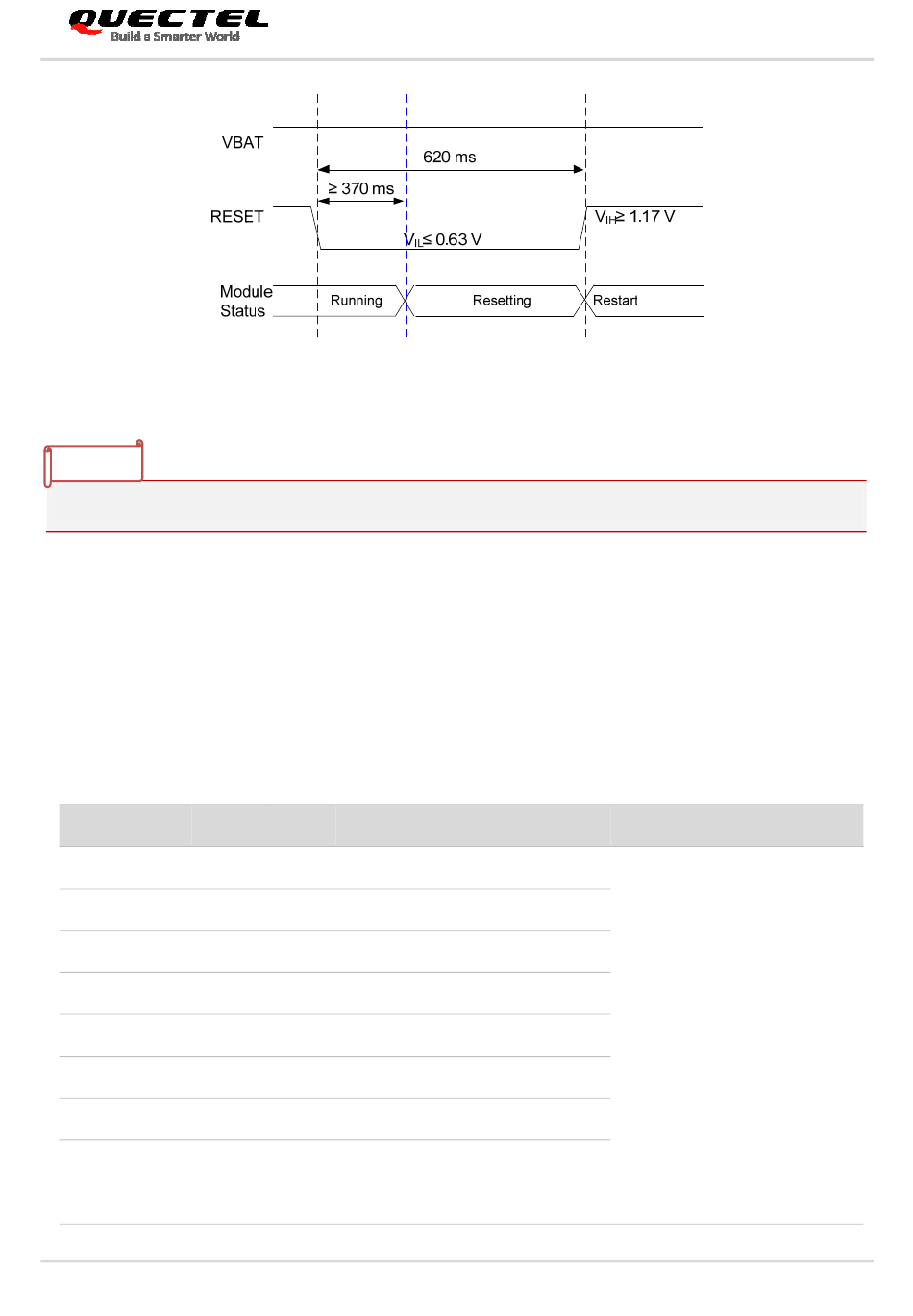

Figure 17: Timing of Resetting Module
I/O
Description
PO
(U)SIM1 card power supply
IO
(U)SIM1 card data
DO
(U)SIM1 card clock
DO
(U)SIM1 card reset
DI
(U)SIM1 card hot-plug detect
PO
(U)SIM2 card power supply
IO
(U)SIM2 card data
DO
(U)SIM2 card clock
DO
(U)SIM2 card reset
Automotive Module Series
AG525R-GL QuecOpen Hardware Design
Comment
Either 1.8 V or 3.0 V is
supported by the module
automatically.
50 / 104
