1)
LTE-FDD B32
LTE-TDD B34
LTE-TDD B38
LTE-TDD B39
LTE-TDD B40
LTE-TDD B41
LTE-TDD B66
LTE-TDD B71
NOTE
1)
LTE-FDD B29, B30 and B32 support Rx only.

4.1.3. Reference Design of RF Antenna Interfaces

A reference design of main and Rx-diversity antenna interfaces is shown as below. It is recommended to
reserve a π-type matching circuit for better RF performance, and the π-type matching components
(R1/C1/C2 and R2/C3/C4) should be placed as close to the antennas as possible. The capacitors are not
mounted by default.
AG525R-GL_QuecOpen_Hardware_Design
2010–2025
2570–2620
1880–1920
2300–2400
2555–2655
1710–1780
663–698

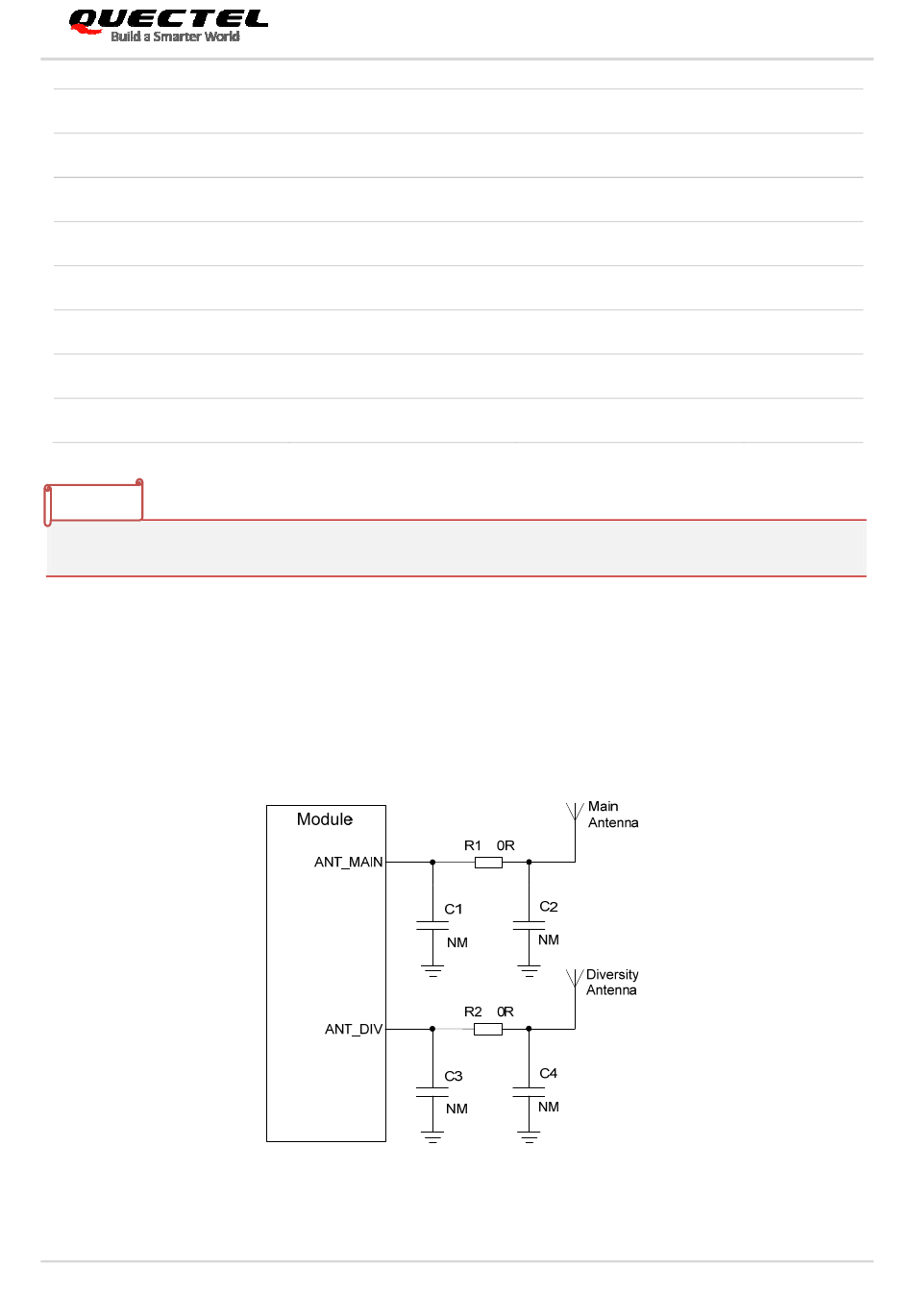

Figure 31: Reference Circuit of RF Antenna Interfaces
Automotive Module Series
AG525R-GL QuecOpen Hardware Design
1452–1496
2010–2025
2570–2620
1880–1920
2300–2400
2555–2655
2110–2200
617–652
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
