3.1.4 Main circuit terminal diagram of single-VFD integrated machine

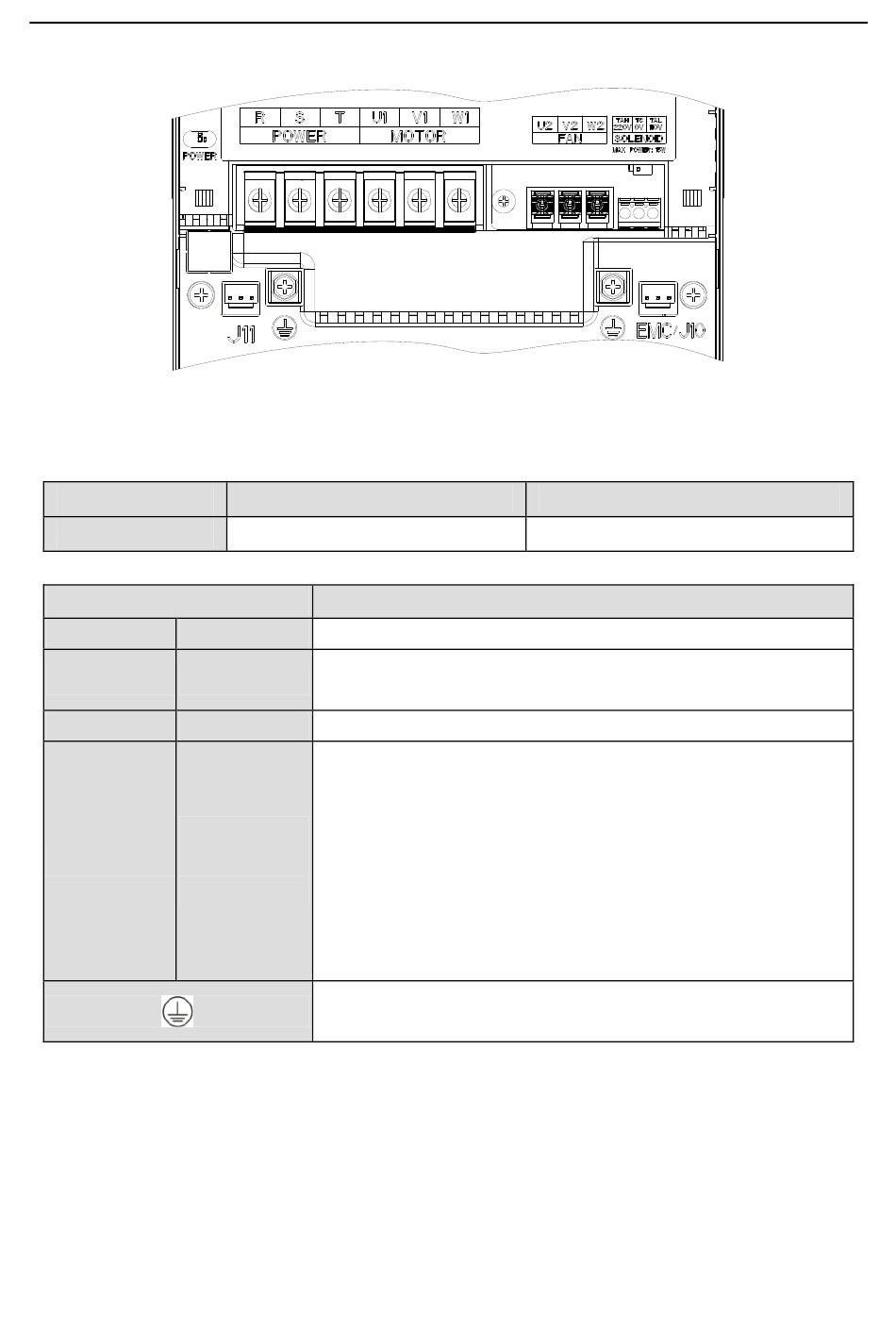

Figure 3-14 Main circuit terminal diagram of 7.5–15kW single-VFD integrated machine
Table 3-3 Screw specification and torque of main circuit terminal of 7.5kW–15kW single-VFD
Power range (kW)
7.5-15
Table 3-4 Main circuit terminal description of single VFD integrated machine
Terminal sign
POWER
MOTOR U1, V1, W1
FAN U2, V2, W2
220V/TAH,
SOLENOID 110V/TAL,
Note: Do not connect the connecting terminal of solenoid valve to other external loads; if the power of
solenoid valve coil exceeds 15W, the power-frequency transformer inside the integrated machine will
need to be customized or connected to external 220V/110V power independently.
integrated machine7.5kW–15kW
Terminal screw specification
M5
R, S, T 3PH AC input terminal, connected to the grid
3PH AC output terminal, connected to the main motor of air
compressor
3PH AC output terminal, connected to the fan
220V/110V output terminal, connected to solenoid valve coil
Note:
1. Max. output power of internal power-frequency transformer:
15W
2. When users choose the solenoid valve with 220V coil, connect
0V/TC
the solenoid coil to 220V and 0V connecting terminals;
3. When users choose the solenoid valve with 110V coil, connect
the solenoid coil to 110V and 0V connecting terminals.
Each machine must be grounded, three PEs, grounding
resistance is less than 10Ω
Torque of torque driver (N
Function
