Service and Repair Manual

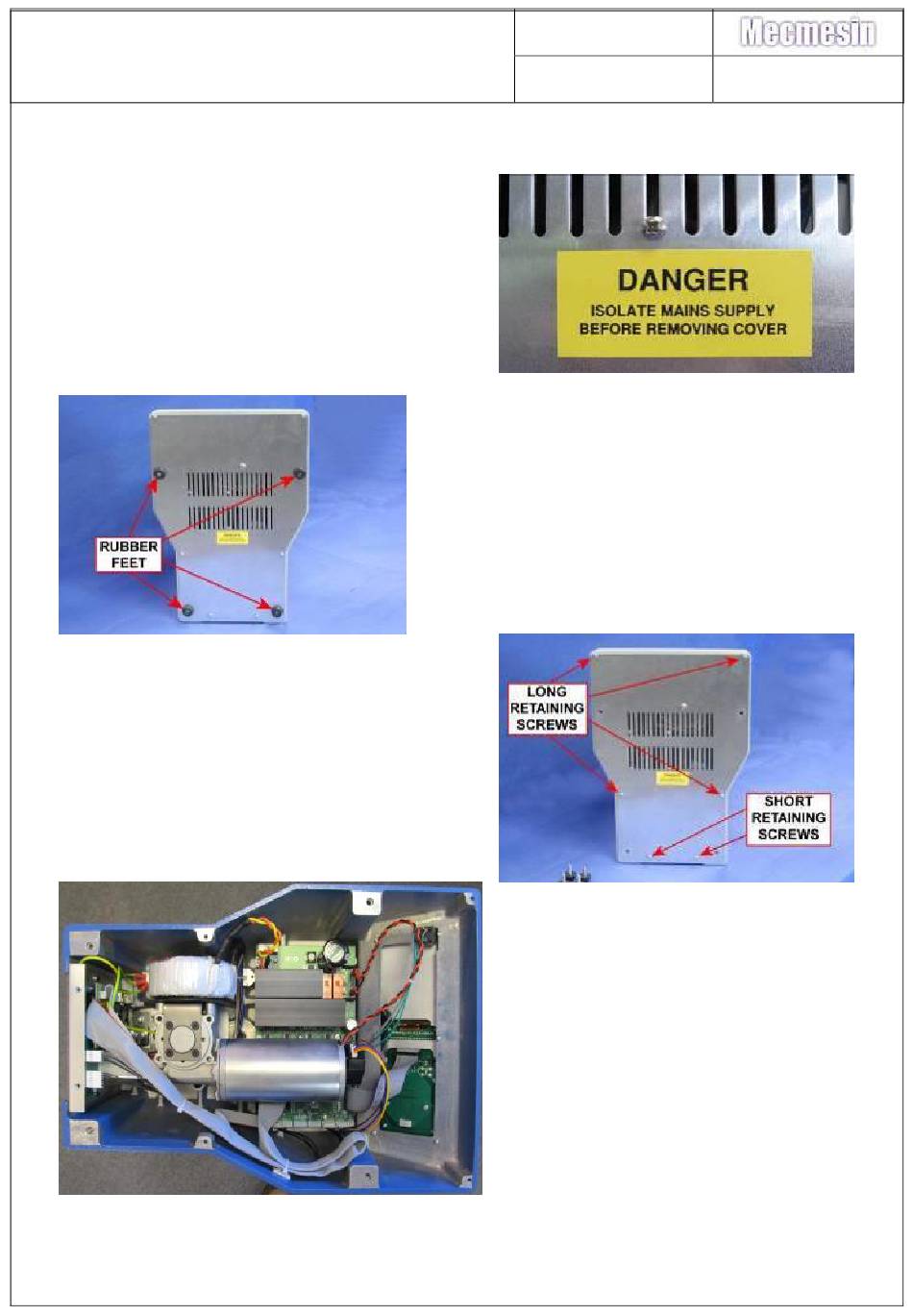

4. Preparation for working inside the base casting
1.
Ensure that the test stand is switched-off
and disconnected from the mains supply
2.
Support the test stand safely in an inverted
position
4.
Remove base plate retained by 4-off
M4x12mm pan pozi taptite screws (into the
base casting) and 2-off M4x6mm pan pozi
screws into the rear panel
Refitting of the Base-Plate is the reverse of the above procedure
Number 022-780
Issue Number: 02
3.
Remove 4-off rubber feet 22mm
dia x 10mm retained by
countersunk screws.
5.
Lift the base panel clear of the
base casting – access to all
components within the base
casting is now available.
Page 5 of 32
