7. Rear Panel Replacement

17.
Remove the base plate as per 4, Instructions 1 to 5
18.

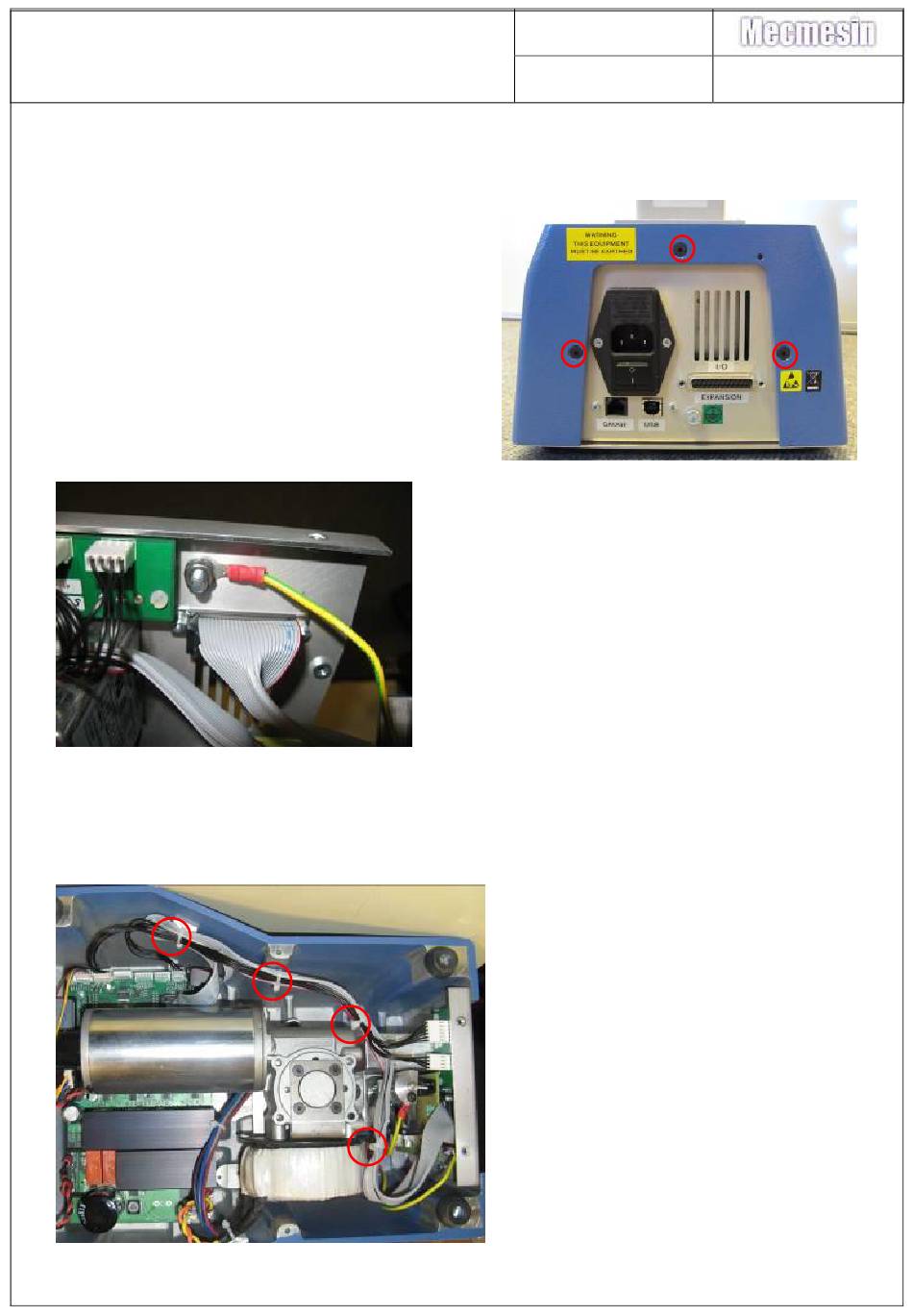

Locate the rear panel as identified in the
photograph.
19.
Remove the inlet filter as per.
20.
Using a 2.5mm allen key remove the 3-off
screws retaining the Rear Panel to the base
casing. Highlighted in red.
21.
Remove the rear panel earth connection
Issue Number: 02
Section 6
22.
Number 022-780
Cut the cable ties retaining the
connector looms.
Page 8 of 32
