Multitest 0.5dV, 1dV & 2.5dV
Service and Repair Manual
9. VIC PCB Replacement
Warning:
General anti-static precautions should be observed whilst handling the PCB
36.
Remove the base plate as per 4, Instructions 1 to 5
37.

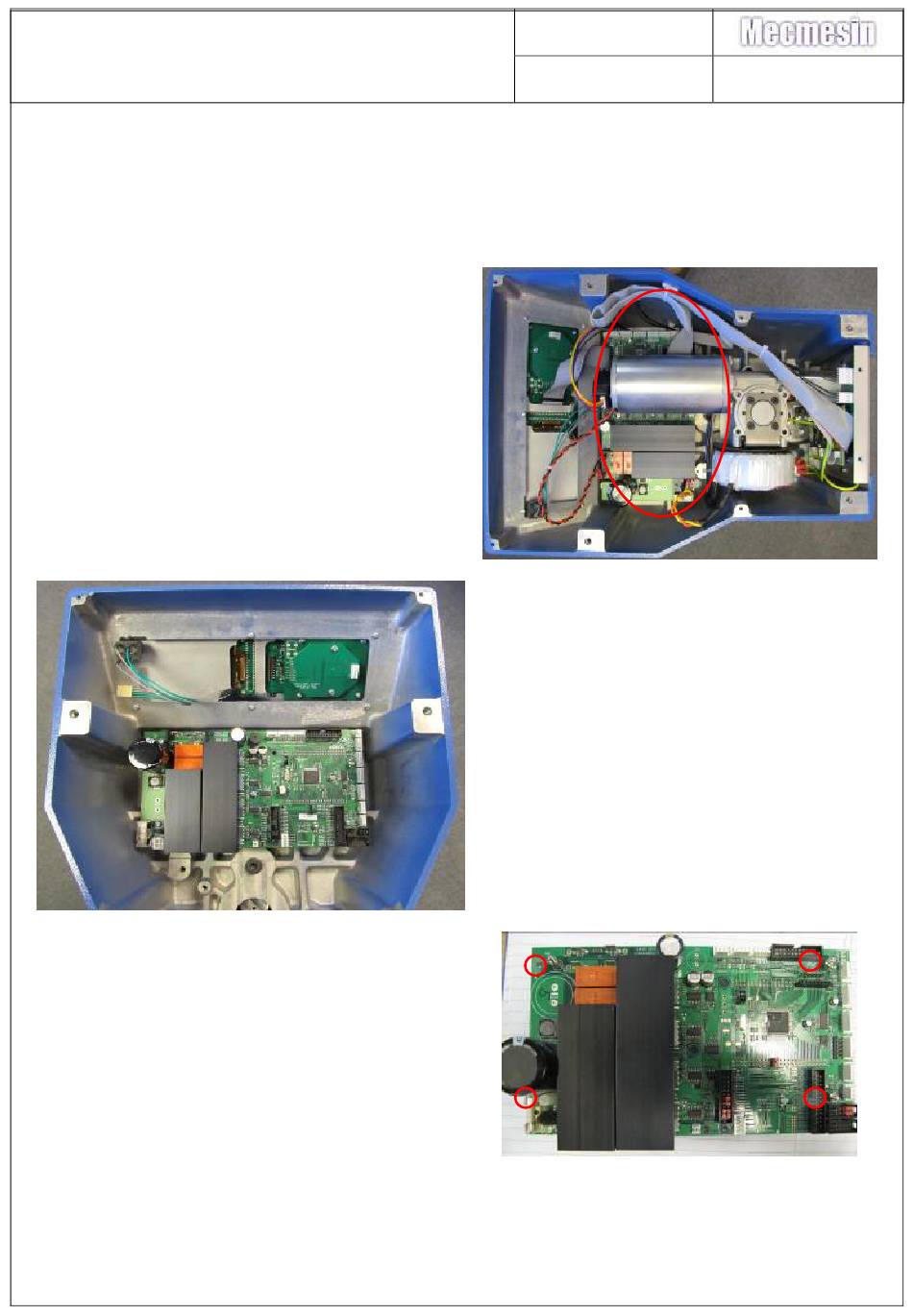

Locate the Vic PCB as identified in the
photograph
42.
Remove the 4-off M3x6 pan head pozi drive
screws retaining the control PCB on to the
hex pillars and lift out the PCB.
Refitting the PCBs is the reverse of the above procedure.
Note the following photographs and instructions
Number 022-780
Issue Number: 02
38.
Remove the transformer as per 5.
39.
Remove the motor as per
40.
Remove all loom connections to the
PCB
41.
NOTE - record the connections before
removing
Page 12 of 32
Section 9.
