Multitest 0.5dV, 1dV & 2.5dV
Service and Repair Manual

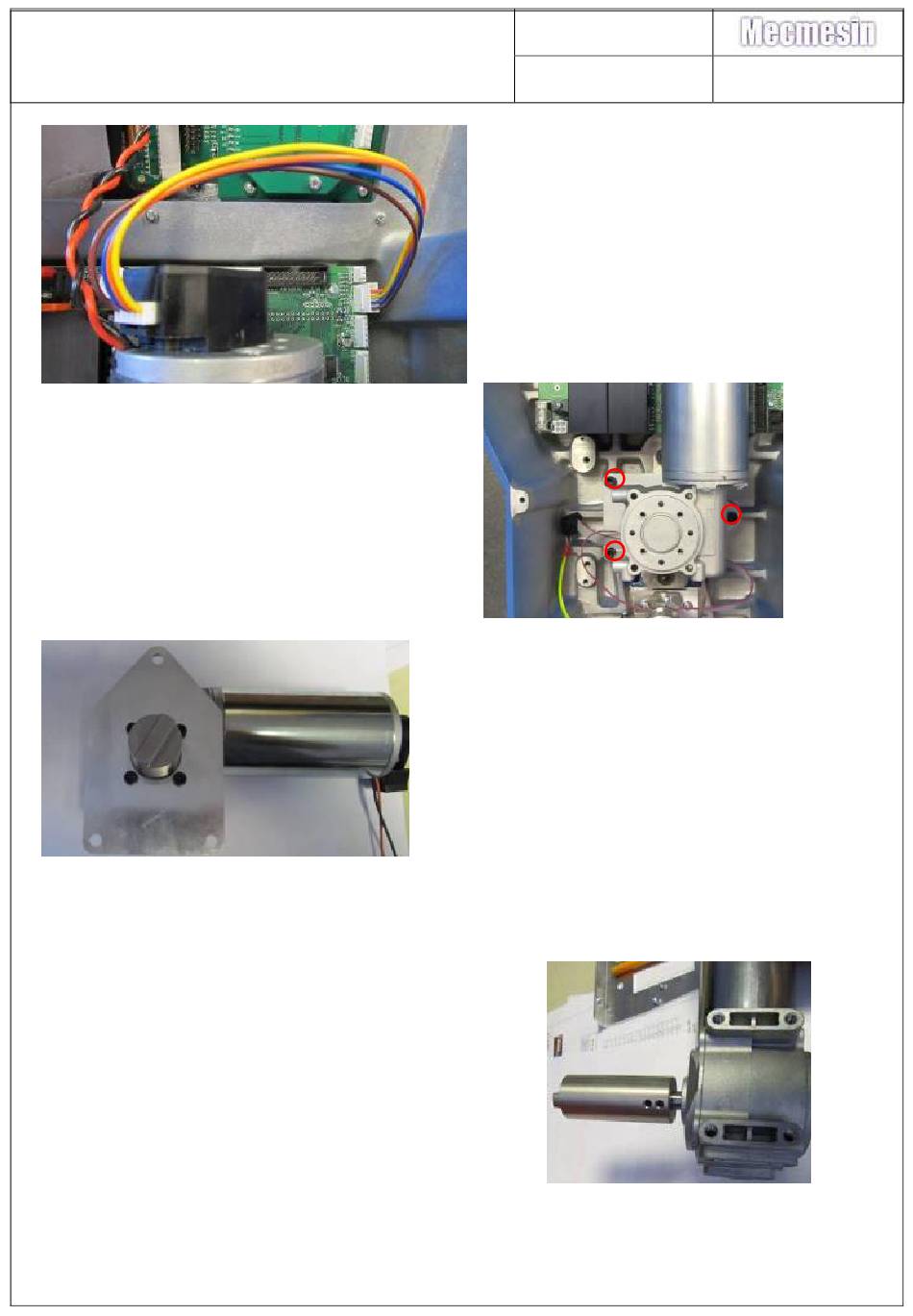

33.
Remove the 3-off M6x12 socket cap head
motor retaining screws
Remove the drive coupling from the old motor
drive shaft and fit to the new motor using (note
that in the picture the motor mounting plate and
pillars have been removed for clarity) using 2 off
M4 x 5 dog point grub screws, securing them
with loctite 243. The motor shaft and adaptor
are keyed for alignment.
Refitting of the Motor
is the reverse of the above procedure
Number 022-780
Issue Number: 02
32.
Disconnect motor encoder loom (352-
191-V01) from J2.
34.
Lift the motor out of the base casing.
35.
Remove the motor mounting plate from
the motor.
Test Stands – (Prior to 31/05/16)
This is fixed to the motor using 4 off
M4 x 12 screw skt cap and 4 off 35mm
hexagon spacers.
Test Stands – (From 31/05/16)
This is fixed with 4 off M4 x 45 skt cap
screws through 4 off 35mm long
stainless steel spacers.
Page 11 of 32
