Create a correlation
1. Select the Correlations tab.

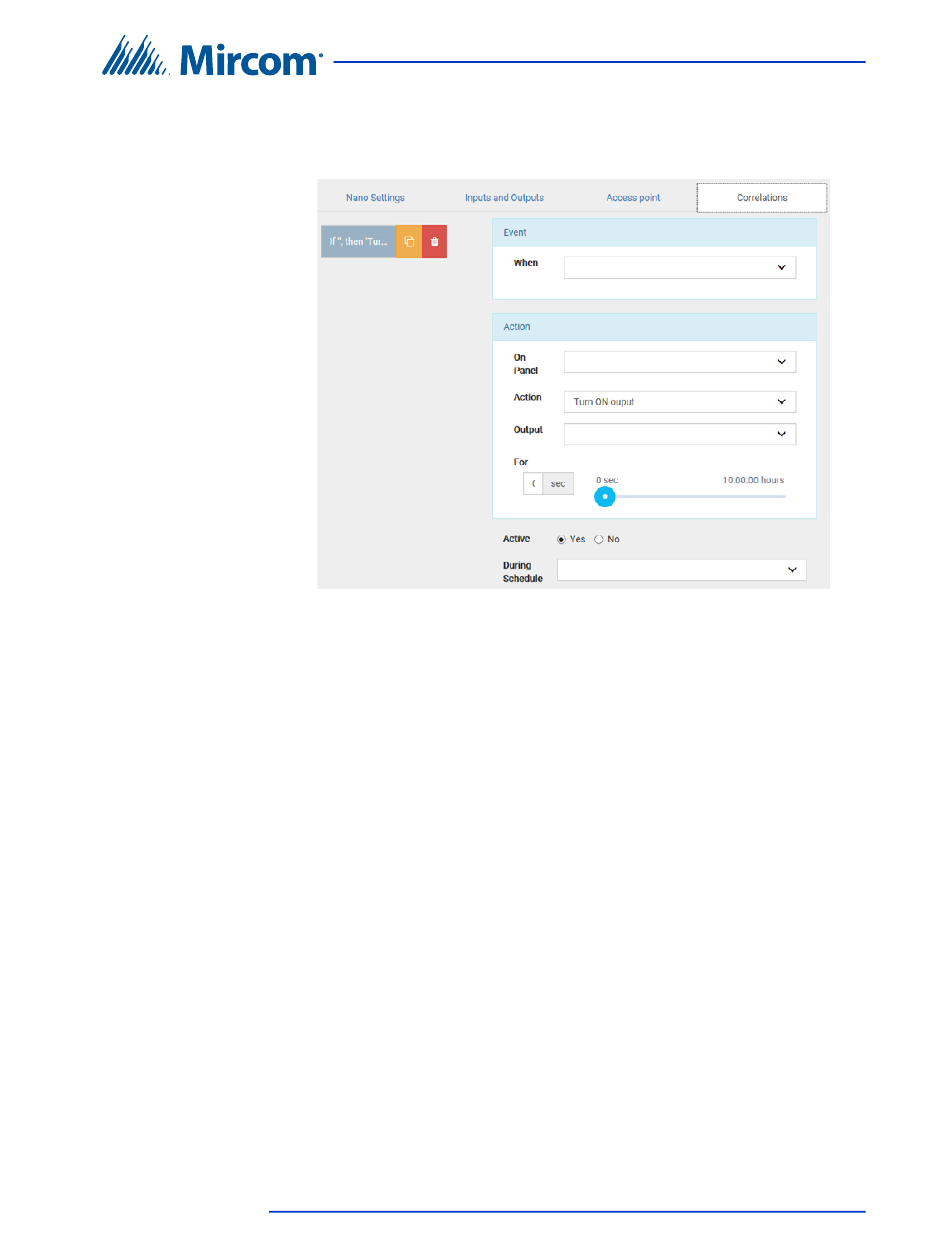

Figure 16. Correlations

2. Click Add Correlation at the top of the window.
3. Enter the following parameters:
When. This parameter defines the input event. Select one of the following:
Access is granted. Resident grants access using their telephone
keypad.
Access is denied. Resident denies access.
Forced entry alarm. A door is forced open.
Door held open alarm. A door did not close and the door held open
alarm was issued.
Input activated. Select an input as defined in section 2.7 on page 23.
Call Started. A call to a resident is placed from the lobby.
Call finished. A call to a resident ends.
Call is connected. A call is established.
On panel. Select the panel that the action should occur on.
